Aston Martin GT RAPIDE (2010-2019) - Air Con Lines, HFO1234yf, RHD

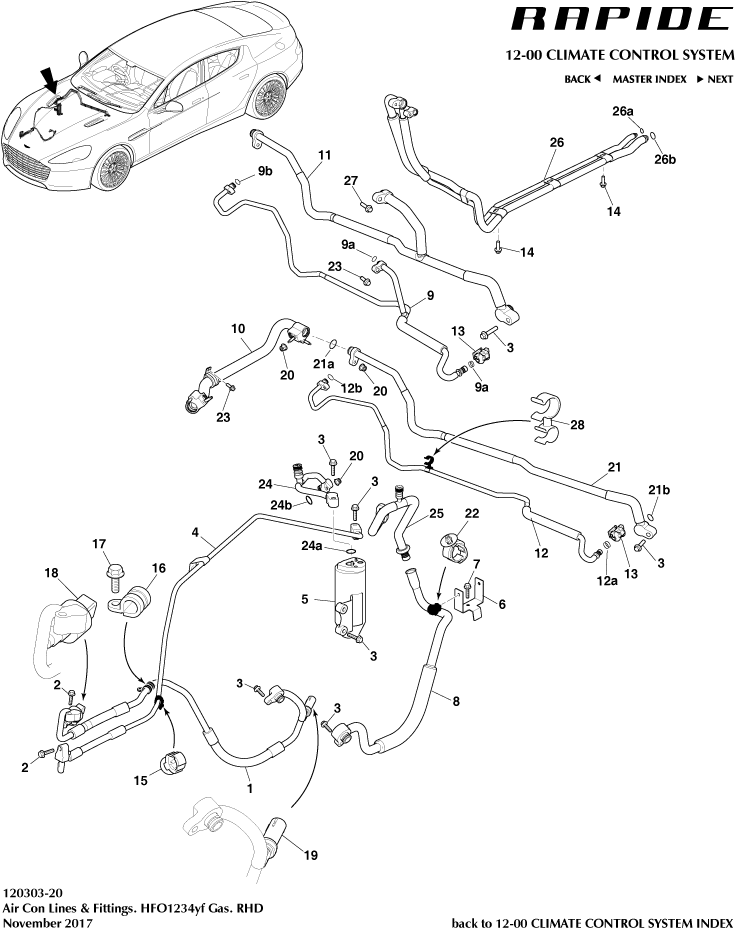

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	HD3319972AA	TUBE ASSY A/C COMPR	HD3319972AA TUBE ASSY A/C COMPR -	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	2	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	7	Enquire
4	HD3319D719AA	TUBE ASSY AC DEHY IN	HD3319D719AA TUBE ASSY AC DEHY IN -	-	1	Enquire
5	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier -	-	1	Enquire
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL -	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
8	HD3319A705AA	TUB ASY A/C EVP OLET	HD3319A705AA TUB ASY A/C EVP OLET -	-	1	Enquire
9	HD4319D603BA	TUB ASY A/C EVP INLT	HD4319D603BA TUB ASY A/C EVP INLT For Rear HVAC only	-	1	Enquire
9a	HD2387024AA	EPDM O-RING	HD2387024AA EPDM O-RING -	-	3	Enquire
9b	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
10	HD2318D487BB	TUB ASY A/C INX RHD	HD2318D487BB TUB ASY A/C INX RHD For Rear HVAC only	-	1	Enquire
11	HD4319D602BA	TUB ASY A/C EVP OLET	HD4319D602BA TUB ASY A/C EVP OLET For Rear HVAC only	-	1	Enquire
12	61295B6A3A3	HV wiring harness charg.socket outlet DC	61295B6A3A3 HV wiring harness charg.socket outlet DC Not for Rear HVAC	-	1	Enquire
12a	HD2387024AA	EPDM O-RING	HD2387024AA EPDM O-RING -	-	2	Enquire
12b	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
13	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
14	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	2	Enquire
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	1	Enquire
16	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
17	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	1	Enquire
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
19	6F9319D594AA	SW ASY-A/C PRES CTOF	6F9319D594AA SW ASY-A/C PRES CTOF -	-	1	Enquire
20	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	3	Enquire
21	HD4319D602DA	TUB ASY A/C EVP OLET	HD4319D602DA TUB ASY A/C EVP OLET Not for Rear HVAC	-	1	Enquire
21a	HD2319394AA	EPDM O-RING	HD2319394AA EPDM O-RING -	-	1	Enquire
21b	HD2332117AA	EPDM O-RING	HD2332117AA EPDM O-RING -	-	1	Enquire
22	702291	Clip, 11-18 x 6.5 x 7	702291 Clip, 11-18 x 6.5 x 7 -	-	1	Enquire
23	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	1	Enquire
24	HG4319N649AA	TUB ASY A/C IHX INLE	HG4319N649AA TUB ASY A/C IHX INLE -	-	1	Enquire
24a	HD2387071AA	EPDM - O-RING	HD2387071AA EPDM - O-RING -	-	1	Enquire
24b	HD2387072AA	EPDM O-RING	HD2387072AA EPDM O-RING -	-	1	Enquire
25	HG4319N648AA	TUB ASY A/C IHX OLET	HG4319N648AA TUB ASY A/C IHX OLET -	-	1	Enquire
26	HD4319A705DA	TB ASY A/C EVP OUT/I	HD4319A705DA TB ASY A/C EVP OUT/I For Rear HVAC only	-	1	Enquire
26a	HD23100603AA	EPDM O-RING	HD23100603AA EPDM O-RING -	-	1	Enquire
26b	HD23101001AA	EPDM O-RING	HD23101001AA EPDM O-RING -	-	1	Enquire
27	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head -	-	1	Enquire
