Aston Martin GT RAPIDE (2010-2019) - Heat Shields, Front

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

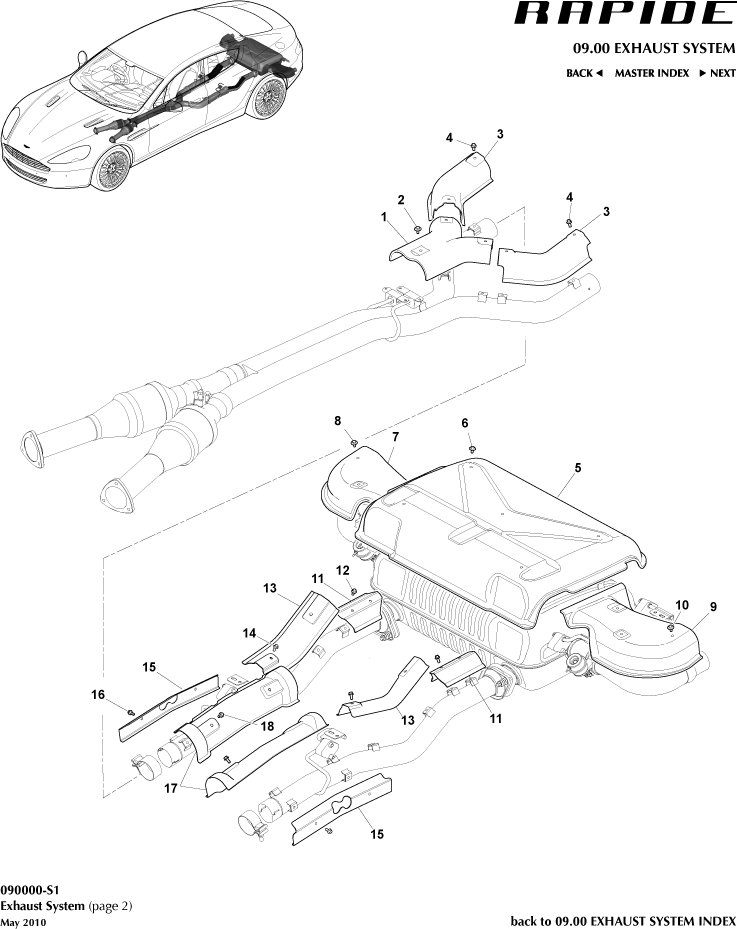

Heat Shields, Front of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- SY9Y23945WBW
DOOR ASSY TRIM LH
19MY AMR 		- 1 Enquire
- SY9Y28460CA
P2.5 BOBBIN MOUNT
19MY AMR 		- 1 Enquire
- FD335G221BA
SHL ASY EXH SYS RR R
From 15MY 		- 2 Enquire
1 AD435G221EA
SHIELD ASSY EXHAUST SYSTEM REAR CENTRE
- 		- 1 Enquire
2 703752
Screw and Washer, M6 x 16
- 		- 3 Enquire
3 AD435G221AA
Shield Assy, Exhaust System, Rear Front
- 		- 2 Enquire
4 703264
SCREW-M6 x 14 HEX HD
2 per shield 		- 4 Enquire
5 13A3856CP
Floor Trim - RH
- 		$203.03 1
6 703752
Screw and Washer, M6 x 16
- 		- 5 Enquire
7 SY9Y23943VBW
DOOR ASSY TRIM LH
- 		- 1 Enquire
8 703752
Screw and Washer, M6 x 16
- 		- 3 Enquire
9 SY9Y2L202GB
LINES HTS BRKT
- 		- 1 Enquire
10 703752
Screw and Washer, M6 x 16
- 		- 3 Enquire
11 AD435G221DB
SHIELD ASSY EXHAUST SYSTEM REAR REAR
- 		- 2 Enquire
12 703264
SCREW-M6 x 14 HEX HD
2 per shield 		- 4 Enquire
13 AD435G221CA
SHIELD ASSY EXHAUST SYSTEM REAR REAR
- 		- 2 Enquire
14 703264
SCREW-M6 x 14 HEX HD
2 per shield 		- 4 Enquire
15 AD435G221FC
SHIELD ASSY EXHAUST SYSTEM REAR SIDE
- 		- 2 Enquire
16 703264
SCREW-M6 x 14 HEX HD
2 per shield 		- 4 Enquire
17 AD435G221BC
SHL ASY EXH SYS RR R
Up to 15MY 		- 2 Enquire
18 703264
SCREW-M6 x 14 HEX HD
2 per shield 		- 4 Enquire
