Exhaust System of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

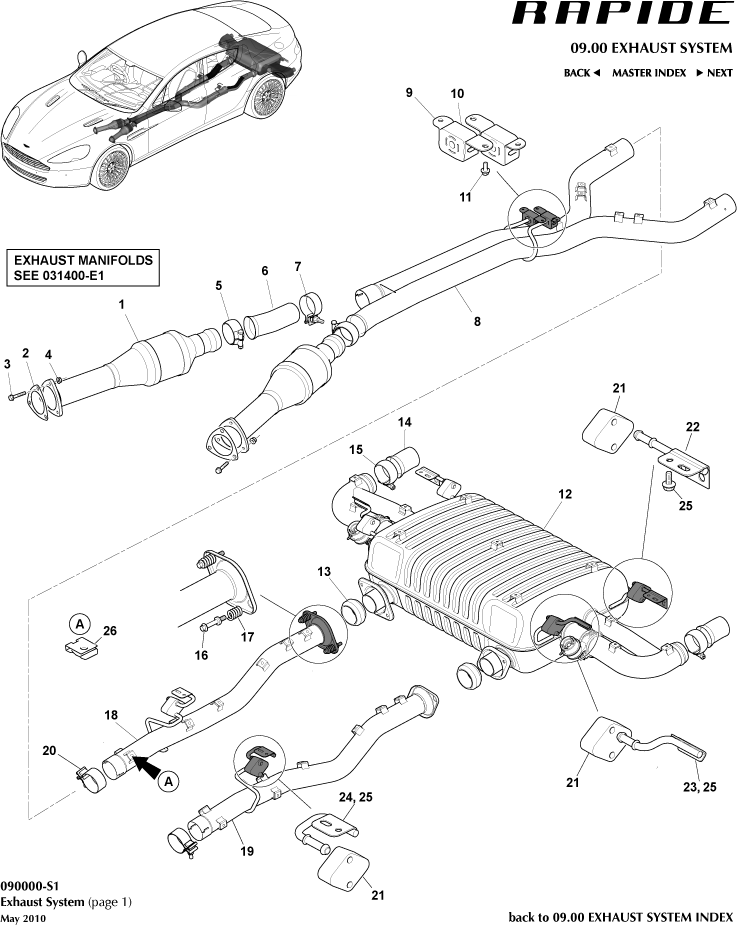

Aston Martin GT RAPIDE (2010-2019) - Exhaust System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	KD435E211AA	CONV & PIP ASY	KD435E211AA CONV & PIP ASY 19MY AMR	-	2	Enquire
-	KD435220EA	STUB PIPE CENTRE	KD435220EA STUB PIPE CENTRE 19MY AMR	-	1	Enquire
-	FD435220DA	INTER PIPE EXH CTR	FD435220DA INTER PIPE EXH CTR From 15MY	-	1	Enquire
-	HD435230AA	REAR MUFFLER	HD435230AA REAR MUFFLER -	-	1	Enquire
-	KD435230CB	REAR MUFFLER	KD435230CB REAR MUFFLER 19MY AMR	-	1	Enquire
-	FD435220BC	INTR PIPE EXHAUST RH	FD435220BC INTR PIPE EXHAUST RH From VIN F03988	-	1	Enquire
-	FD435220AC	INTR PIPE EXHAUST LH	FD435220AC INTR PIPE EXHAUST LH From VIN F03988	-	1	Enquire
-	83305B585D8	Gauge	83305B585D8 Gauge 19MY AMR	-	1	Enquire
-	AD435N201BA	MUFFLER MOUNTING BRACKET	AD435N201BA MUFFLER MOUNTING BRACKET -	-	1	Enquire
-	SY9Y2E462HB	CAL ASSY FRT WHL RH	SY9Y2E462HB CAL ASSY FRT WHL RH 19MY AMR	-	1	Enquire
-	AD435N201DA	INTERMEDIATE MNTG BRACKET LH AUTO	AD435N201DA INTERMEDIATE MNTG BRACKET LH AUTO -	-	1	Enquire
-	FD435N201GA	BRKT MFLR MTNG LH	FD435N201GA BRKT MFLR MTNG LH From 15MY	-	1	Enquire
-	SY9Y266B71AB	DR SPKR GRL ASY AML	SY9Y266B71AB DR SPKR GRL ASY AML Up to 15MY	-	1	Enquire
-	FD435N201HA	BRKT EXH MTNG CTR RH	FD435N201HA BRKT EXH MTNG CTR RH From 15MY	-	1	Enquire
-	SY9Y31113ICW	RR QTR UPR ASY LH	SY9Y31113ICW RR QTR UPR ASY LH 19MY AMR	-	33	Enquire
1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly -	-	2	Enquire
2	4G435E281AAPK	Gasket, Exhaust Manifold to Under Floor Catalytic Converter	4G435E281AAPK Gasket, Exhaust Manifold to Under Floor Catalytic Converter Pack of 2	-	1	Enquire
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL -	-	6	Enquire
5	9G435221AA	EXHAUST PIPE CLAMP	9G435221AA EXHAUST PIPE CLAMP -	-	2	Enquire
6	AD435220CA	STUB PIPE CENTRE	AD435220CA STUB PIPE CENTRE -	-	1	Enquire
7	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Order Assembly	-	1	Enquire
8	AD435220DE	INTER PIPE EXH CTR	AD435220DE INTER PIPE EXH CTR Up To 15MY	-	1	Enquire
9	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator -	-	2	Enquire
10	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount -	-	2	Enquire
11	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	4	Enquire
12	AD435230AG	REAR MUFFLER	AD435230AG REAR MUFFLER -	-	1	Enquire
13	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust -	-	2	Enquire
14	AD435220EB	STUB PIPE REAR	AD435220EB STUB PIPE REAR -	-	2	Enquire
15	9G435221AA	EXHAUST PIPE CLAMP	9G435221AA EXHAUST PIPE CLAMP -	-	2	Enquire
17	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange -	-	4	Enquire
18	AD435220BE	INTER EXH PIPE-RH	AD435220BE INTER EXH PIPE-RH Up to VIN F03987	-	1	Enquire
19	AD435220AE	INTER EXH PIPE-LH	AD435220AE INTER EXH PIPE-LH Up to VIN F03987	-	1	Enquire
20	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Order Assembly	-	2	Enquire
21	AH225A262AA	EXHAUST MOUNT RUBBER	AH225A262AA EXHAUST MOUNT RUBBER -	-	6	Enquire
22	AD435N201AA	MUFFLER MOUNTING BRACKET	AD435N201AA MUFFLER MOUNTING BRACKET -	-	1	Enquire
23	AD435N201CA	MUFFLER MOUNTING BRACKET REAR	AD435N201CA MUFFLER MOUNTING BRACKET REAR -	-	1	Enquire
24	SY9Y3A053AA	ARM & BSHG ASSY FRT	SY9Y3A053AA ARM & BSHG ASSY FRT Up to 15MY	-	1	Enquire
25	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 2 per bracket	-	12	Enquire
26	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	33	Enquire
