Rear Brake System of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Rear Brake System

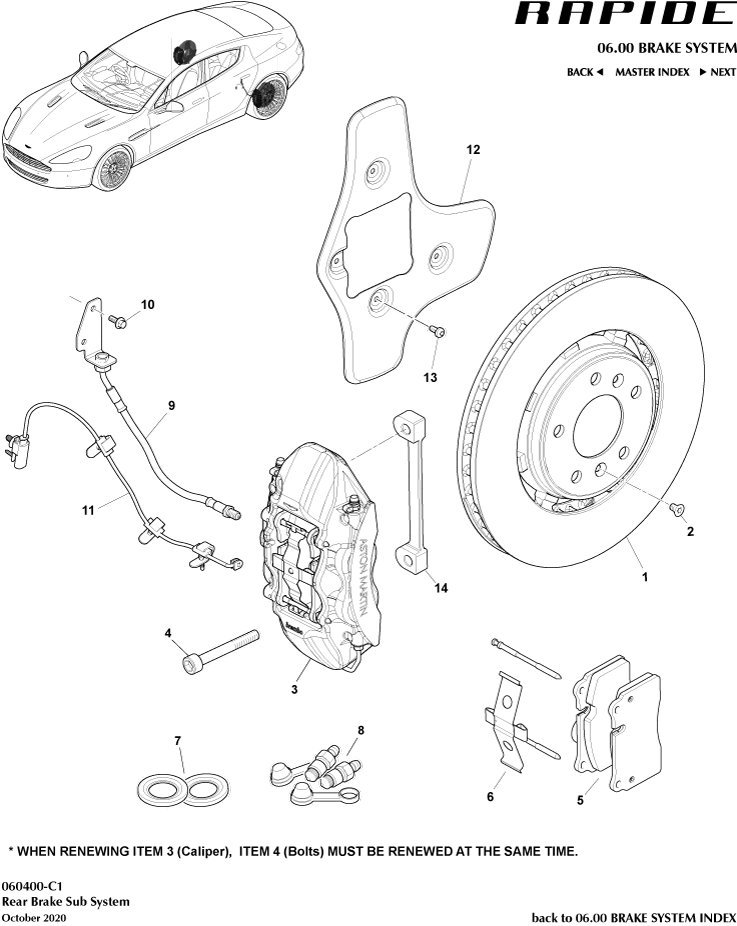

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD432C026AB	ASSY DISC VENT REAR	AD432C026AB ASSY DISC VENT REAR From VIN F02201, Grooved Disc	-	2	Enquire
-	AY932C026AA	Brake Disc, Rear	AY932C026AA Brake Disc, Rear AMR	-	2	Enquire
-	AD432C464AA	RR RH GREY CALIPER ASSY W/OUT PADS	AD432C464AA RR RH GREY CALIPER ASSY W/OUT PADS Up to 15MY. Grey	-	1	Enquire
-	AD432C465CA	RR LH BLK CALIPER ASSY W/OUT PADS	AD432C465CA RR LH BLK CALIPER ASSY W/OUT PADS Up to 15MY. Black	-	1	Enquire
-	AD432C464CA	RR RH BLK CALIPER ASSY W/OUT PADS	AD432C464CA RR RH BLK CALIPER ASSY W/OUT PADS Up to 15MY. Black	-	1	Enquire
-	AD432C465DA	RR LH RED CALIPER ASSY W/OUT PADS	AD432C465DA RR LH RED CALIPER ASSY W/OUT PADS Up to 15MY. Red	-	1	Enquire
-	AD432C464DA	RR RH RED CALIPER ASSY W/OUT PADS	AD432C464DA RR RH RED CALIPER ASSY W/OUT PADS Up to 15MY. Red	-	1	Enquire
-	AD432C465EA	RR LH SILVER CALIPER ASSY W/OUT PADS	AD432C465EA RR LH SILVER CALIPER ASSY W/OUT PADS Up to 15MY. Silver	-	1	Enquire
-	AD432C464EA	RR RH SILVER CALIPER ASSY W/OUT PADS	AD432C464EA RR RH SILVER CALIPER ASSY W/OUT PADS Up to 15MY. Silver	-	1	Enquire
-	AD432C465FA	RR LH YELLOW CALIPER	AD432C465FA RR LH YELLOW CALIPER Up to 15MY. Yellow	-	1	Enquire
-	AD432C464FA	RR RH YELLOW CALIPER	AD432C464FA RR RH YELLOW CALIPER Up to 15MY. Yellow	-	1	Enquire
-	61278875611	Cell module, high-voltage accumulator	61278875611 Cell module, high-voltage accumulator Up to 15MY. Black Anodised	-	1	Enquire
-	83125B54D04	Impregn for upholstery and carpets	83125B54D04 Impregn for upholstery and carpets Up to 15MY. Black Anodised	-	1	Enquire
-	FD432C465AA	RR LH GREY CALIPER	FD432C465AA RR LH GREY CALIPER From 15MY. Grey	-	1	Enquire
-	FD432C464AA	RR RH GREY CALIPER	FD432C464AA RR RH GREY CALIPER From 15MY. Grey	-	1	Enquire
-	FD432C465CA	RR LH BLK CALIPER	FD432C465CA RR LH BLK CALIPER From 15MY. Black	-	1	Enquire
-	FD432C464CA	RR RH BLK CALIPER	FD432C464CA RR RH BLK CALIPER From 15MY. Black	-	1	Enquire
-	FD432C465DA	RR LH RED CALIPER	FD432C465DA RR LH RED CALIPER From 15MY. Red	-	1	Enquire
-	FD432C464DA	RR RH RED CALIPER	FD432C464DA RR RH RED CALIPER From 15MY. Red	-	1	Enquire
-	FD432C465EA	RR LH SLVR CALIPER	FD432C465EA RR LH SLVR CALIPER From 15MY. Silver	-	1	Enquire
-	FD432C464EA	RR RH SLVR CALIPER	FD432C464EA RR RH SLVR CALIPER From 15MY. Silver	-	1	Enquire
-	FD432C465FA	RR LH YLW CALIPER	FD432C465FA RR LH YLW CALIPER From 15MY. Yellow	-	1	Enquire
-	FD432C464FA	RR RH YLW CALIPER	FD432C464FA RR RH YLW CALIPER From 15MY. Yellow	-	1	Enquire
-	FD432C465JA	RR LH BL AN CALIPER	FD432C465JA RR LH BL AN CALIPER From 15MY. Black Anodised	-	1	Enquire
-	FD432C464JA	RR RH BL AN CALIPER	FD432C464JA RR RH BL AN CALIPER From 15MY. Black Anodised	-	1	Enquire
-	AD232C465JA	CAL ASSY RR LH ANOD	AD232C465JA CAL ASSY RR LH ANOD AMR. Black Anodised	-	1	Enquire
-	AD232C464JA	CAL ASSY RR RH ANOD	AD232C464JA CAL ASSY RR RH ANOD AMR. Black Anodised	-	1	Enquire
-	AD232C465CB	CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS	AD232C465CB CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS AMR. Black	-	1	Enquire
-	AD232C464CB	CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS	AD232C464CB CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS AMR. Black	-	1	Enquire
-	AD232C465NA	CAL ASSY RR LH AMR L	AD232C465NA CAL ASSY RR LH AMR L AMR. Lime	-	1	Enquire
-	AD232C464NA	CAL ASSY RR RH AMR L	AD232C464NA CAL ASSY RR RH AMR L AMR. Lime	-	1	Enquire
-	AD432C562AB	BRAKE PAD KIT REAR	AD432C562AB BRAKE PAD KIT REAR China	-	1	Enquire
-	8D332C562BA	Brake Pad Kit, Rear	8D332C562BA Brake Pad Kit, Rear AMR	-	1	Enquire
-	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) AMR, Per Caliper	-	2	Enquire
-	SY9Y62110AA	FRT PLINTH SUPT BRKT	SY9Y62110AA FRT PLINTH SUPT BRKT From 15MY. Per Caliper	-	2	Enquire
-	AD232C465BB	Caliper, Handbrake, LH	AD232C465BB Caliper, Handbrake, LH AMR	-	2	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	2	Enquire
-	AD432282BA	HOSE ASSY RR WHL BRK	AD432282BA HOSE ASSY RR WHL BRK -	-	2	Enquire
-	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH -	-	1	Enquire
1	AD432C026AA	RTR-RR WHL DSC BRK	AD432C026AA RTR-RR WHL DSC BRK Up To VIN F02200, Plain Disc	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3	AD432C465AA	RR LH GREY CALIPER ASSY W/OUT PADS	AD432C465AA RR LH GREY CALIPER ASSY W/OUT PADS Up to 15MY. Grey	-	1	Enquire
4	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle Always Replace, Do Not Re-use	-	4	Enquire
5	AD432C562AA	Rear Brake Pad Kit	AD432C562AA Rear Brake Pad Kit RoW	-	1	Enquire
6	AD432C588BA	RR SPRING AND PIN PAD KIT	AD432C588BA RR SPRING AND PIN PAD KIT Per Caliper	-	2	Enquire
7	SY9Y455A02AB	SILL MOULDING HATCH	SY9Y455A02AB SILL MOULDING HATCH Up to 15MY. Per Caliper	-	2	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	2	Enquire
9	AD432282AA	HOSE ASSY RR WHL BRK	AD432282AA HOSE ASSY RR WHL BRK -	-	2	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
11	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear -	-	2	Enquire
12	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH -	-	1	Enquire
13	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
14	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield AMR only	-	2	Enquire
