Front Brake System

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Front Brake System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

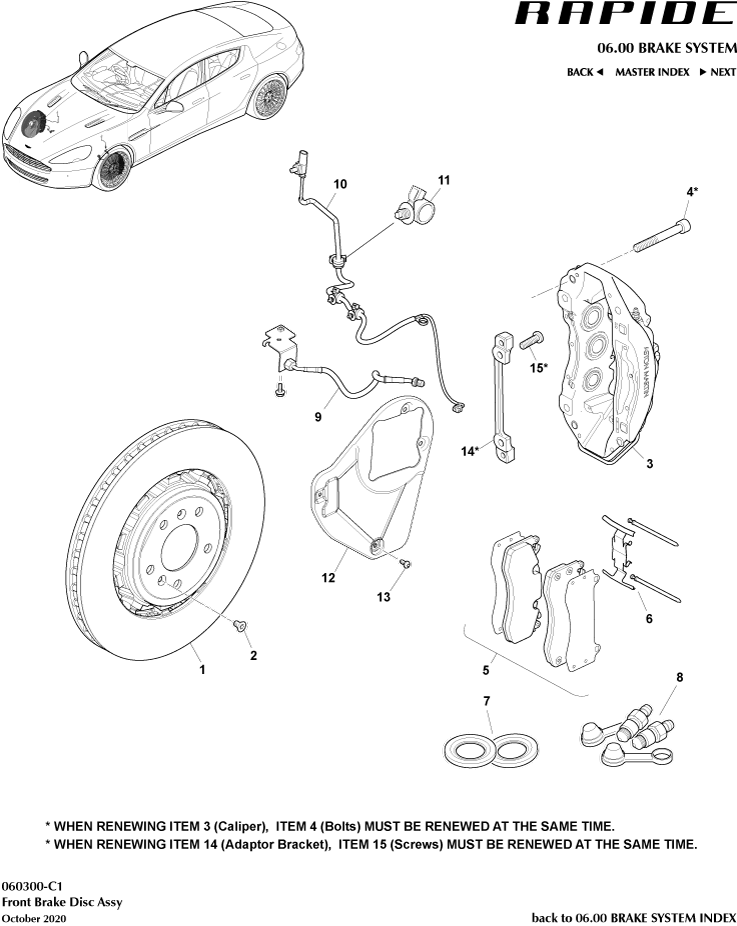

Front Brake System of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

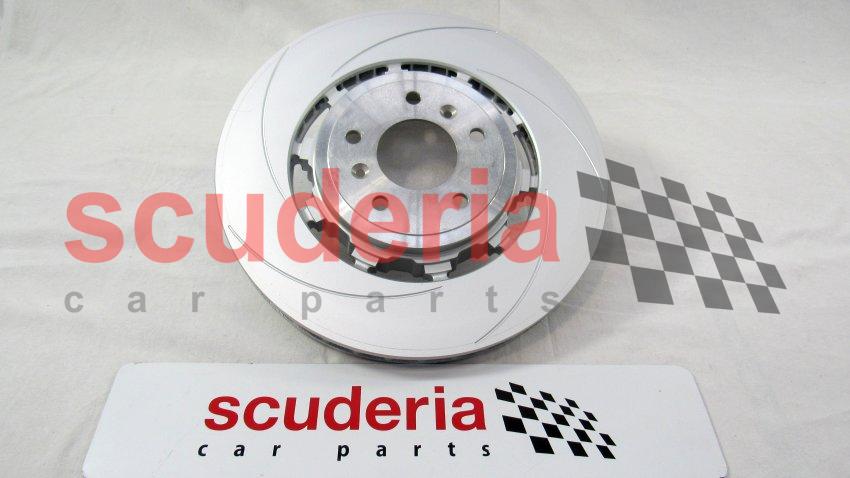

- AD431125AB
BRAKE DISC-FRONT VENTED
From VIN F02201 To 15MY, 390mm Grooved Disc 		- 2 Enquire
- FD431125AB
DSC - FRT WHL BRK
From 15MY, 400mm Grooved Disc 		- 2 Enquire
- AY931125AA
Disc, Front Brake
AMR 		- 2 Enquire
- AD432C462AA
FRT RH GREY CALIPER ASSY W/OUT PADS
Up To 15MY, Grey 		- 1 Enquire
- AD432C463CA
FRT LH BLK CALIPER ASSY W/OUT PADS
Up To 15MY, Black 		- 1 Enquire
- AD432C462CA
FRT RH BLK CALIPER
Up To 15MY, Black 		- 1 Enquire
- AD432C463DA
FRT LH RED CALIPER
Up To 15MY, Red 		- 1 Enquire
- AD432C462DA
FRT RH RED CALIPER ASSY W/OUT PADS
Up To 15MY, Red 		- 1 Enquire
- AD432C463EA
FRT LH SILVER CALIPER ASSY W/OUT PADS
Up To 15MY, Silver 		- 1 Enquire
- AD432C462EA
FRT RH SILVER CALIPER ASSY W/OUT PADS
Up To 15MY, Silver 		- 1 Enquire
- AD432C463FA
FRT LH YELLOW CALIPE
Up To 15MY, Yellow 		- 1 Enquire
- AD432C462FA
FRT RH YELLOW CALIPE
Up To 15MY, Yellow 		- 1 Enquire
- FD432C463AA
FRT LH GREY CALIPER
From 15MY, Grey 		- 1 Enquire
- FD432C462AA
FRT RH GREY CALIPER
From 15MY, Grey 		- 1 Enquire
- FD432C463CA
FRT LH BLK CALIPER
From 15MY, Black 		- 1 Enquire
- FD432C462CA
FRT RH BLK CALIPER
From 15MY, Black 		- 1 Enquire
- FD432C463DA
FRT LH RED CALIPER
From 15MY, Red 		- 1 Enquire
- FD432C462DA
FRT RH RED CALIPER
From 15MY, Red 		- 1 Enquire
- FD432C463EA
FRT LH SLVR CALIPER
From 15MY, Silver 		- 1 Enquire
- FD432C462EA
FRT RH SLVR CALIPER
From 15MY, Silver 		- 1 Enquire
- FD432C463FA
FRT LH YLW CALIPER
From 15MY, Yellow 		- 1 Enquire
- FD432C462FA
FRT RH YLW CALIPER
From 15MY, Yellow 		- 1 Enquire
- FD432C463JA
FRT LH BL AN CALIPER
From 15MY, Black Anodised 		- 1 Enquire
- FD432C462JA
FRT RH BL AN CALIPER
From 15MY, Black Anodised 		- 1 Enquire
- 8D33CD60AA
Bolt, Caliper to Adaptor Bracket
AMR,Always Replace, Do Not Re-use
ARRIVING SOON 		- 2 Enquire
- 32737714099
Hose clamp
China 		- 1 Enquire
- CD332D007AA
Brake Pad Kit, Front
AMR 		- 1 Enquire
- 8D332C588AA
KIT PAD SPRING AND PIN FRONT (PER CALIPER)
AMR, Per Caliper 		- 1 Enquire
- 8D3332180AA
KIT DUST BOOT FRONT (PER CALIPER)
AMR 		- 1 Enquire

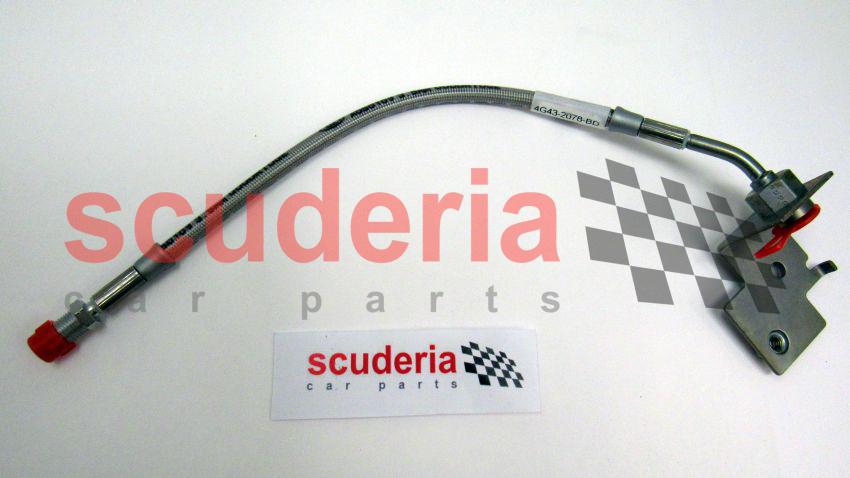

- AD432078BD
Hose, Brake, Front, RH
Per Caliper 		- 1 Enquire
- CD332K005AA
Shield, Front Brake Disc, LH
AMR 		- 1 Enquire
- SY9Y3063472BA
MIR GLS GCC CNVX RH
- 		- 1 Enquire
- CD332K004AA
Shield, Front Brake Disc, RH
AMR 		- 1 Enquire
1 AD431125AA
DSC-FRT WHL BRK
Up To VIN F02200, Plain Disc 		- 2 Enquire
2 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk
- 		- 4 Enquire
3 AD432C463AA
FRT LH GREY CALIPER ASSY W/OUT PADS
Up To 15MY, Grey 		- 1 Enquire
4 8D332C564AA
Brake Bolt, M12 x 95, Caliper to Knuckle
Always Replace, Do Not Re-use 		- 2 Enquire

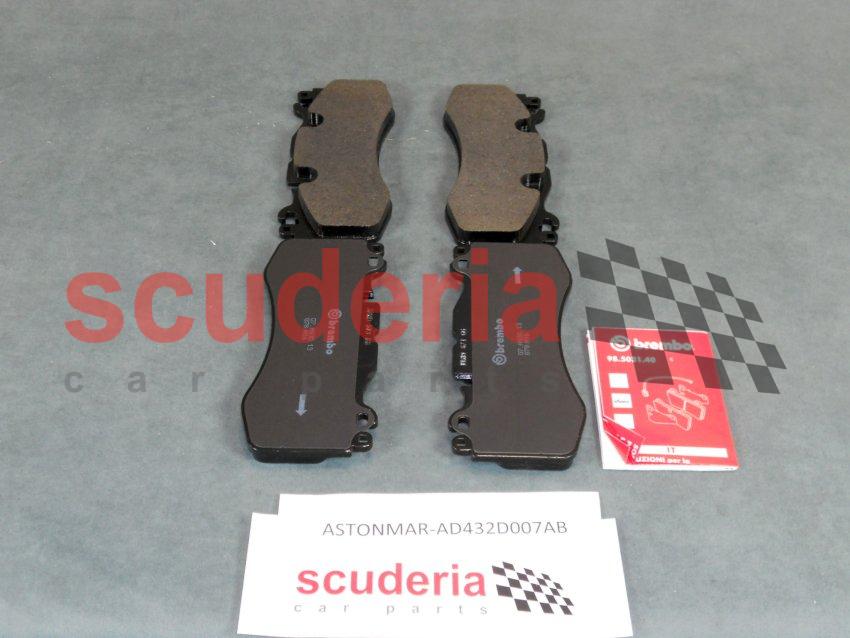

5 AD432D007AB
Front Brake Pad Kit
RoW 		- 1 Enquire
6 AD432C588AA
FRT SPRING & PIN PAD KIT
Per Caliper 		- 1 Enquire
9 AD432078AD
Hose, Brake, Front LH
Per Caliper 		- 1 Enquire
10 8D332L507AA
Pad Wear Lead, Front
-
ARRIVING SOON 		- 2 Enquire
11 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100 		- 6 Enquire
12 SY9Y25324AB
FRT DR LWR MAR RH
- 		- 1 Enquire
13 4G4313D026AA
Screw, retaining disc shield
- 		- 4 Enquire
14 ED232D204AB
Adapter Bracket, Front Caliper
AMR only 		- 2 Enquire
15 8D33YA64AA
BOLT - ADAPTOR BRACKET TO KNUCKLE
AMR only,Always Replace, Do Not Re-use 		- 4 Enquire
