Fuse Panels of Aston Martin Aston Martin GT DBS (2007-2012)

View All

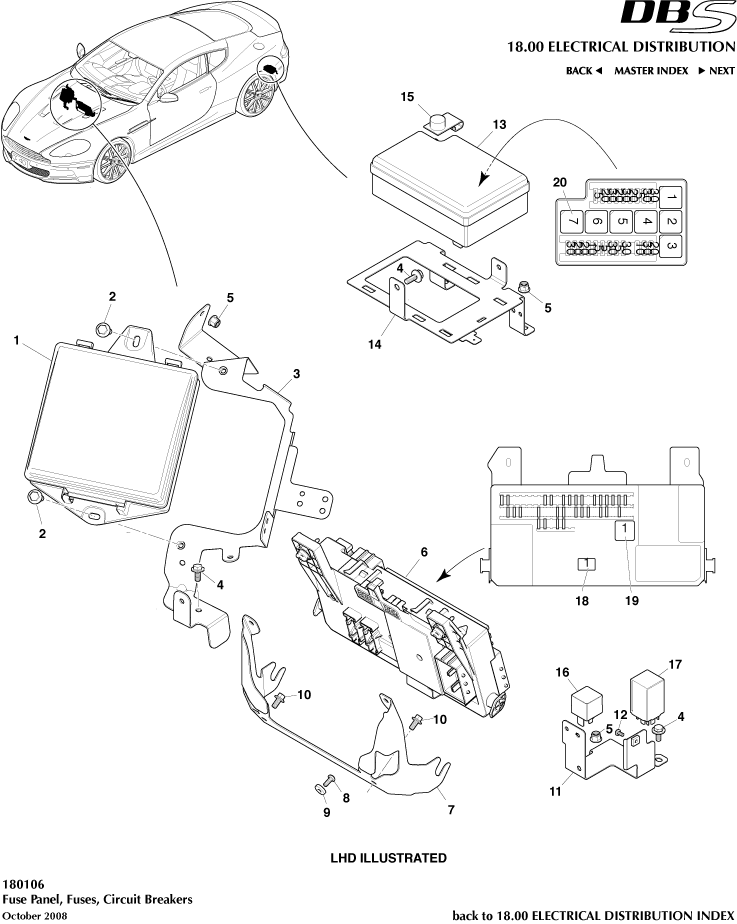

Aston Martin GT DBS (2007-2012) - Fuse Panels

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay 11MY	-	1	Enquire
-	4G4314A173CJ	ENG BAY F/BOX BRKT	4G4314A173CJ ENG BAY F/BOX BRKT -	-	1	Enquire
-	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM 10MY From (V) 01540. Order 702802 Car Config when ordering CEM	-	1	Enquire
-	8D3314N072AC	BRACKET FUSEBOX LHD	8D3314N072AC BRACKET FUSEBOX LHD -	-	1	Enquire
-	4G43L41041AA	Edge Strip, Black 2 x 40 IN STOCK	4G43L41041AA Edge Strip, Black 2 x 40 Bracket, Fusebox mounting IN STOCK	-	1	Enquire
-	4G433710264	FUSE 60 AMP-YELLOW COOLING FAN MOTOR	4G433710264 FUSE 60 AMP-YELLOW COOLING FAN MOTOR -	-	-	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR -	-	-	Enquire
-	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A 257 005	-	-	Enquire
-	3723423	Fuse Midi 7.5A IN STOCK	3723423 Fuse Midi 7.5A 257 07.5 IN STOCK	-	-	Enquire
-	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A 257 010	-	-	Enquire
-	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A 257 015	-	-	Enquire
-	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A 257 020	-	-	Enquire
-	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A 257 025	-	-	Enquire
-	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A 257 030	-	-	Enquire
-	HY533710002	FUSE 40 AMP-ORANGE	HY533710002 FUSE 40 AMP-ORANGE -	-	-	Enquire
1	8D3314A173AB	ENGINE BAY FUSE BOX IN STOCK	8D3314A173AB ENGINE BAY FUSE BOX - IN STOCK	-	1	Enquire
3	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	4G4314A173BK ENGINE BAY FUSEBOX BRACKET RHD -	-	1	Enquire
5	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	5	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM -	-	1	Enquire
7	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM -	-	1	Enquire
8	701449	SCREW M5x12 8.8	701449 SCREW M5x12 8.8 -	-	2	Enquire
9	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
10	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head - IN STOCK	-	2	Enquire
11	8D3314N072BB	BRACKET FUSEBOX RHD	8D3314N072BB BRACKET FUSEBOX RHD -	-	1	Enquire
12	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK -	-	1	Enquire
13	4G4314A073AJ	Fusebox, Rear	4G4314A073AJ Fusebox, Rear -	-	1	Enquire
14	4G4314A301AH	Bracket, Boot Fusebox	4G4314A301AH Bracket, Boot Fusebox -	-	1	Enquire
16	SY9Y10E921BA	GNSS & WIFI ANT BRKT	SY9Y10E921BA GNSS & WIFI ANT BRKT -	-	1	Enquire
17	8D333F826AA	MOD ASSY POWER STEERING	8D333F826AA MOD ASSY POWER STEERING -	-	1	Enquire
