Body Harness, Coupe of Aston Martin Aston Martin GT DBS (2007-2012)

View All

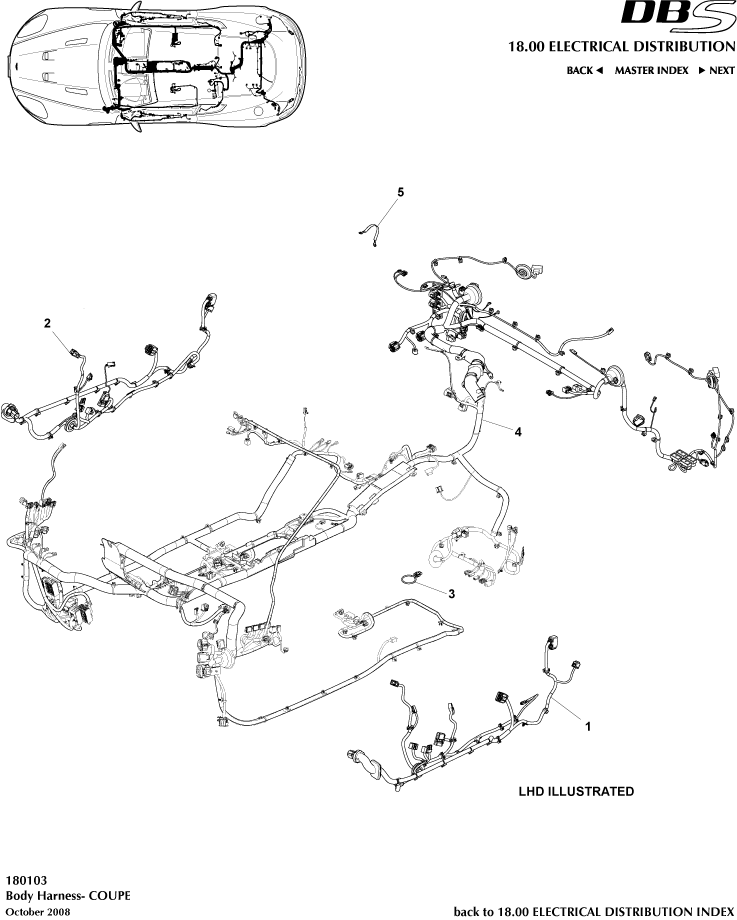

Aston Martin GT DBS (2007-2012) - Body Harness, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3314631AD	HARNESS ASSY DRIVERS DOOR RHD	8D3314631AD HARNESS ASSY DRIVERS DOOR RHD RHD 09MY	-	1	Enquire
-	8D3314631BC	HARNESS ASSY DRIVERS DOOR LHD	8D3314631BC HARNESS ASSY DRIVERS DOOR LHD LHD	-	1	Enquire
-	8D3314631BD	HARNESS ASSY DRIVERS DOOR LHD	8D3314631BD HARNESS ASSY DRIVERS DOOR LHD LHD 09MY	-	1	Enquire
-	8D3314630AD	HARNESS ASSY PASSENGER DOOR RHD	8D3314630AD HARNESS ASSY PASSENGER DOOR RHD RHD 09MY	-	1	Enquire
-	8D3314630BC	HARNESS ASSY PASSENGER DOOR LHD	8D3314630BC HARNESS ASSY PASSENGER DOOR LHD LHD	-	1	Enquire
-	8D3314630BD	HARNESS ASSY PASSENGER DOOR LHD	8D3314630BD HARNESS ASSY PASSENGER DOOR LHD LHD 09MY	-	1	Enquire
-	8D3314A005AG	HARNESS ASSY CABIN RHD	8D3314A005AG HARNESS ASSY CABIN RHD From to 30/9/08	-	1	Enquire
-	AG4314A005NB	HARNESS ASSY CABIN RHD B&O + ADS	AG4314A005NB HARNESS ASSY CABIN RHD B&O + ADS RHD, 9.5MY	-	1	Enquire
-	BG4314A005FB	HARNESS ASSY CABIN RHD B&O + ADS	BG4314A005FB HARNESS ASSY CABIN RHD B&O + ADS RHD 11MY	-	1	Enquire
-	CG4314A005FD	Harness assy, cabin coupe, B & O + ADS	CG4314A005FD Harness assy, cabin coupe, B & O + ADS RHD 12MY	-	1	Enquire
-	8D3314A005BF	HARNESS ASSY CABIN LHD	8D3314A005BF HARNESS ASSY CABIN LHD Up to 29/9/08	-	1	Enquire
-	8D3314A005BG	HARNESS ASSY CABIN LHD	8D3314A005BG HARNESS ASSY CABIN LHD From 29/9/08	-	1	Enquire
-	AG4314A005PB	HARNESS ASSY CABIN LHD B&O + ADS	AG4314A005PB HARNESS ASSY CABIN LHD B&O + ADS LHD	-	1	Enquire
-	SY9Y3600VCW	STEERING WHEEL	SY9Y3600VCW STEERING WHEEL LHD, 12MY	-	1	Enquire
-	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head -	-	24	Enquire
-	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head -	-	23	Enquire
1	8D3314631AC	HARNESS ASSY DRIVERS DOOR RHD	8D3314631AC HARNESS ASSY DRIVERS DOOR RHD RHD	-	1	Enquire
2	8D3314630AC	HARNESS ASSY PASSENGER DOOR RHD	8D3314630AC HARNESS ASSY PASSENGER DOOR RHD RHD	-	1	Enquire
3	8D339137AA	MMM+ LINK HARNESS	8D339137AA MMM+ LINK HARNESS -	-	1	Enquire
4	SY9Y11457AA	OIL COOLER MNT BRAKT	SY9Y11457AA OIL COOLER MNT BRAKT Up to 30/9/08	-	1	Enquire
