Fuel Tank Assy, to 08MY of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Fuel Tank Assy, to 08MY

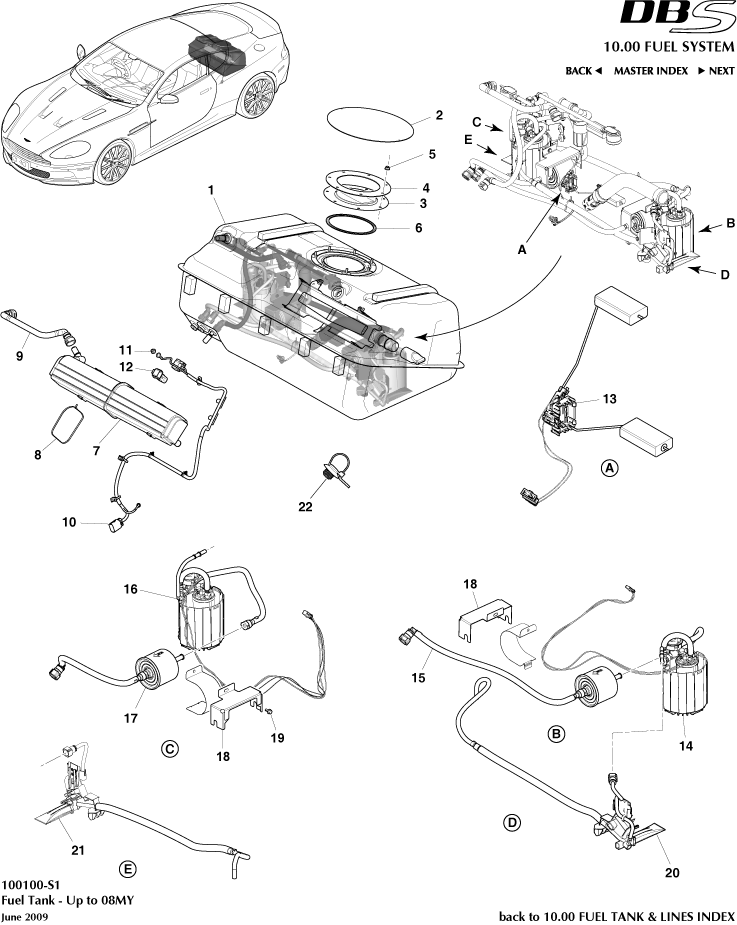

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439074CB	PLATE ASSY FUEL TANK COVER	4G439074CB PLATE ASSY FUEL TANK COVER Volante, Includes Cover Plate Gasket	-	1	Enquire
1	8G439C133AA	TNK & CNSTR ASY FUEL	8G439C133AA TNK & CNSTR ASY FUEL -	-	1	Enquire
2	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV Coupe, Includes Cover Plate Gasket	-	1	Enquire
3	4G439C055CA	COVER - FUEL TANK SERVICE	4G439C055CA COVER - FUEL TANK SERVICE -	-	1	Enquire
4	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank -	-	1	Enquire
5	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	7	Enquire
7	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER -	-	1	Enquire
8	SY7Y24404AAW	IP WRAPPED FINISHER	SY7Y24404AAW IP WRAPPED FINISHER -	-	1	Enquire
9	4G434090AB	HOSE - FUEL/VAPOUR	4G434090AB HOSE - FUEL/VAPOUR -	-	1	Enquire
10	7G4314407AB	FUEL TANK HARNESS	7G4314407AB FUEL TANK HARNESS -	-	1	Enquire
11	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	1	Enquire
12	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	4G433710041 ELEC CONNECTOR-6 WAY SUMITOMO without â??Oâ?? ring	-	1	Enquire
13	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender -	-	1	Enquire

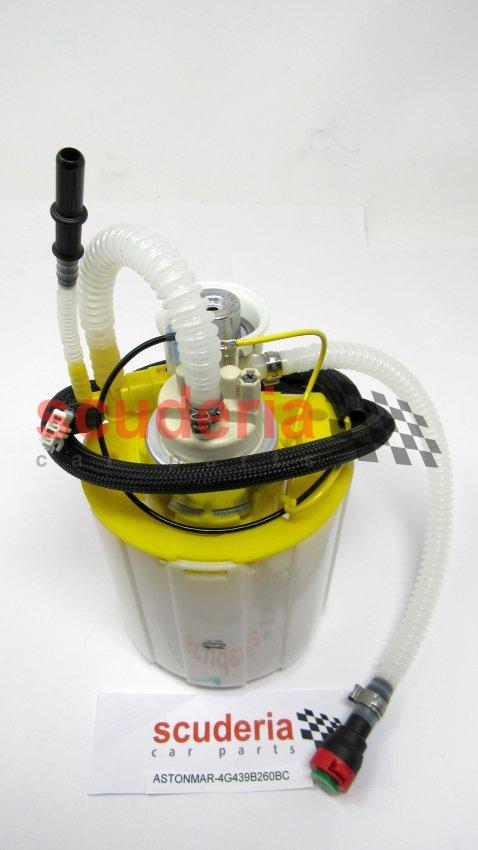

14	4G439B260BC	Pump & Reservoir Assy - Fuel LHS	4G439B260BC Pump & Reservoir Assy - Fuel LHS -	-	1	Enquire

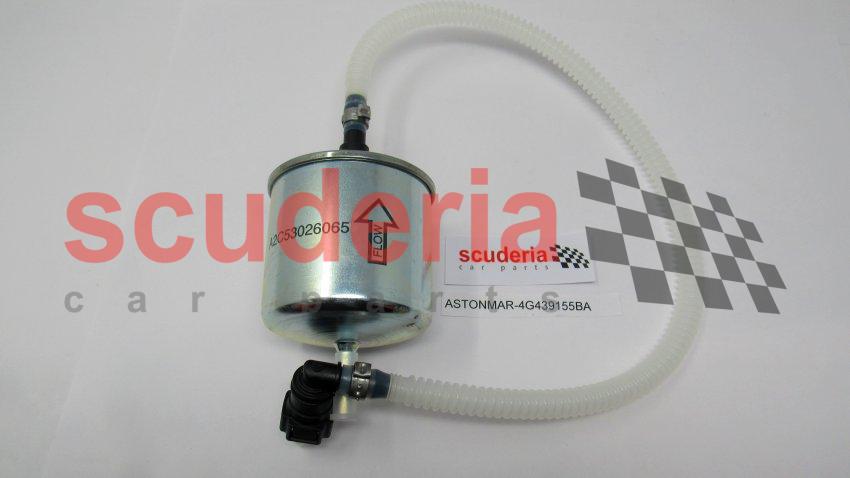

15	4G439155BA	Fuel Filter LH	4G439155BA Fuel Filter LH -	-	1	Enquire

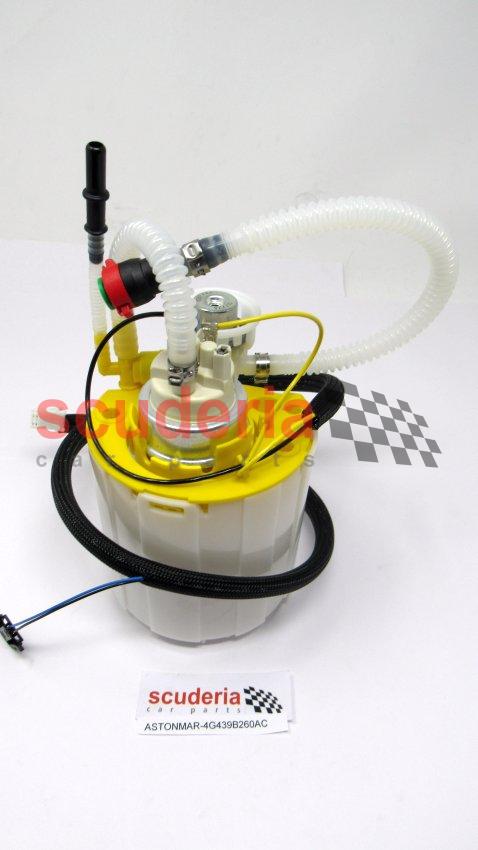

16	4G439B260AC	Pump & Reservoir Assy - Fuel RHS	4G439B260AC Pump & Reservoir Assy - Fuel RHS -	-	1	Enquire

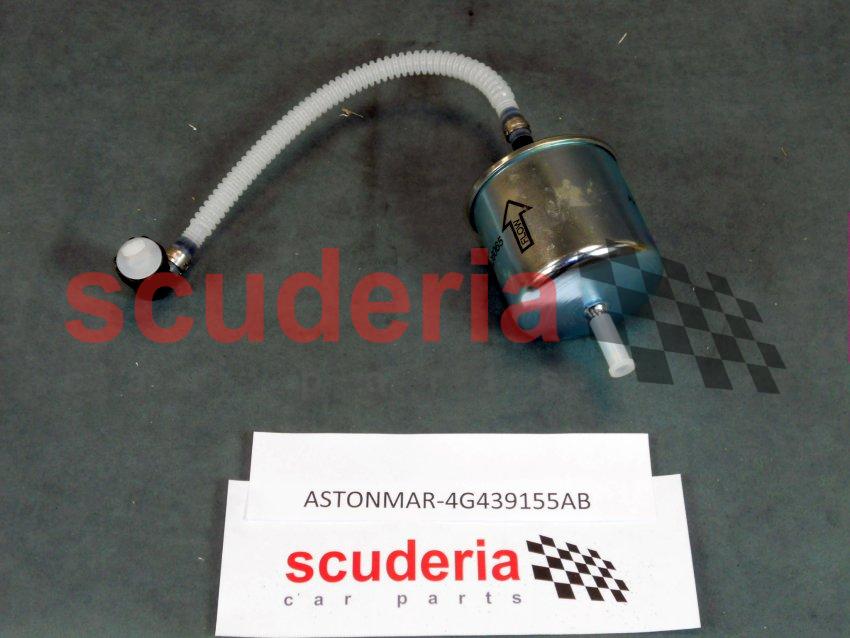

17	4G439155AB	Fuel Filter RHS	4G439155AB Fuel Filter RHS -	-	1	Enquire
18	4G439180BA	BRKT FU/CONN RTN	4G439180BA BRKT FU/CONN RTN 1 per filter assy	-	2	Enquire
19	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16 -	-	2	Enquire
20	4G439B260DA	JET PUMP LH	4G439B260DA JET PUMP LH -	-	1	Enquire
21	4G439B260CA	PMP JET ASY-FUL RHS	4G439B260CA PMP JET ASY-FUL RHS -	-	1	Enquire
22	4G439012APIA01	TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	4G439012APIA01 TIE WRAP - FIR TREE Aprx 18cm/180mm (L) -	-	4	Enquire
