Name: Fuel Tank Assy, 08MY on
Rating: 5.0 (1 reviews)

Find Your Part

Fuel Tank Assy, 08MY on of Aston Martin Aston Martin GT DBS (2007-2012)

View All

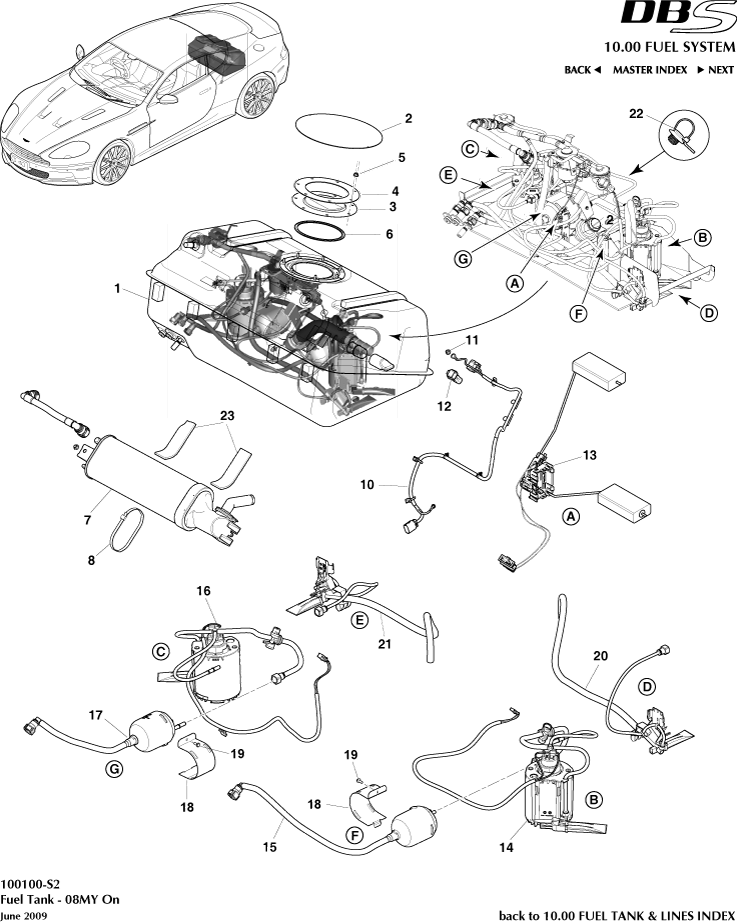

Aston Martin GT DBS (2007-2012) - Fuel Tank Assy, 08MY on

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	BG439C133AA	TNK &CANSTR ASY FUEL	BG439C133AA TNK &CANSTR ASY FUEL From VIN E03189	-	1	Enquire
-	4G439074CB	PLATE ASSY FUEL TANK COVER	4G439074CB PLATE ASSY FUEL TANK COVER Volante, Includes Cover Plate Gasket	-	1	Enquire
-	BG439D653AA	BRKT FU/VPR STRG CN	BG439D653AA BRKT FU/VPR STRG CN From VIN E03189	-	1	Enquire
-	SY6Y7E443BA	MAN TRANS HARNS	SY6Y7E443BA MAN TRANS HARNS From VIN E03189	-	1	Enquire
-	BG434090AA	Hose Assembly	BG434090AA Hose Assembly From VIN E03189	-	1	Enquire
-	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged From VIN E03189	-	2	Enquire
-	6G339B260BD	Module Assy, Jet Pump	6G339B260BD Module Assy, Jet Pump From VIN E03189	-	1	Enquire
-	6G339B260BD	Module Assy, Jet Pump	6G339B260BD Module Assy, Jet Pump From VIN E03189	-	2	Enquire
1	8G439C133AF	TNK & CNSTR ASY FUEL	8G439C133AF TNK & CNSTR ASY FUEL Up to VIN E03189	-	1	Enquire
2	4G439074BB	PLATE FU TNK CVR	4G439074BB PLATE FU TNK CVR Coupe, Includes Cover Plate Gasket	-	1	Enquire
5	697820	NUT M6 FLG	697820 NUT M6 FLG -	-	7	Enquire
6	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace each time Cover Plate is removed. ARRIVING SOON	-	1	Enquire
7	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER Up to VIN E03189	-	1	Enquire
8	SY7Y24404AAW	IP WRAPPED FINISHER	SY7Y24404AAW IP WRAPPED FINISHER Up to VIN E03189	-	1	Enquire
9	4G434090AB	HOSE - FUEL/VAPOUR	4G434090AB HOSE - FUEL/VAPOUR Up to VIN E03189	-	1	Enquire
10	7G4314407AB	FUEL TANK HARNESS	7G4314407AB FUEL TANK HARNESS -	-	1	Enquire
11	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking Up to VIN E03189	-	1	Enquire
12	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	4G433710041 ELEC CONNECTOR-6 WAY SUMITOMO Without â??Oâ?? ring	-	1	Enquire
13	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender -	-	1	Enquire
14	8G439B260AC	LH FUEL PUMP & RESERVOIR	8G439B260AC LH FUEL PUMP & RESERVOIR -	-	1	Enquire
15	8G439155AA	Fuel Filter LH	8G439155AA Fuel Filter LH -	-	1	Enquire
16	6G339B260CC	Fuel Pump and Reservoir RH	6G339B260CC Fuel Pump and Reservoir RH -	-	1	Enquire
17	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH -	-	1	Enquire
20	4G439B260DA	JET PUMP LH	4G439B260DA JET PUMP LH Up to VIN E03189	-	1	Enquire
21	4G439B260CA	PMP JET ASY-FUL RHS	4G439B260CA PMP JET ASY-FUL RHS Up to VIN E03189	-	1	Enquire
23	BG43M2D28BA	Insulation, Fuel Tank Upper	BG43M2D28BA Insulation, Fuel Tank Upper -	-	2	Enquire
