Air Distribution Components of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Air Distribution Components

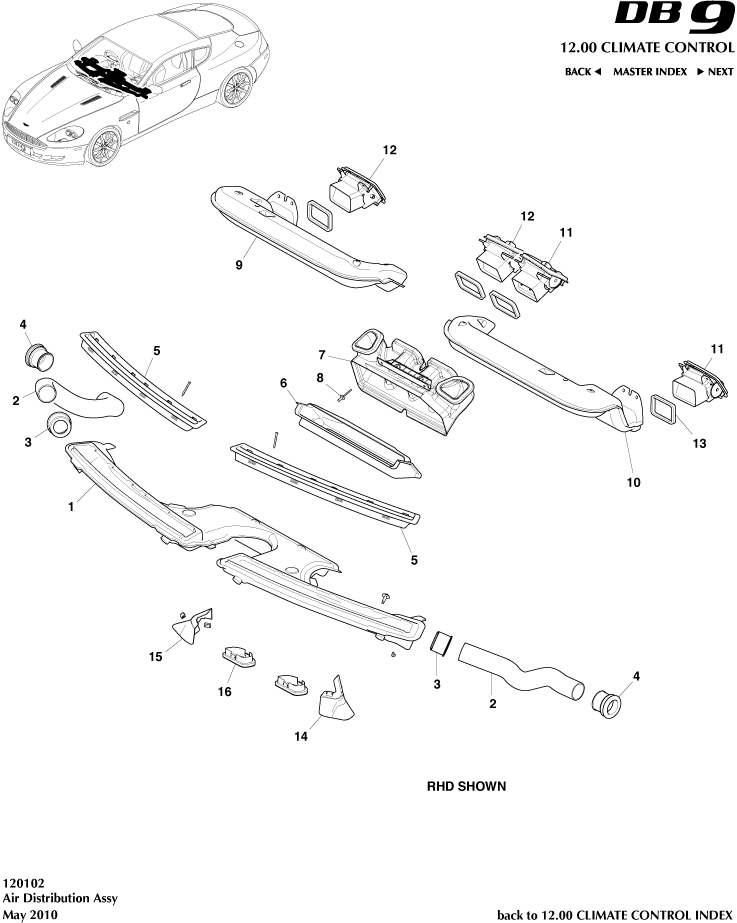

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G3304432AD	Duct Assembly, Windshield Deflector, LHD	6G3304432AD Duct Assembly, Windshield Deflector, LHD -	-	1	Enquire
-	701433	SCREW& WASHER M6x18	701433 SCREW& WASHER M6x18 08MY From (V) A09110	-	4	Enquire
-	701157	SCREW&WSHR 4.2x16	701157 SCREW&WSHR 4.2x16 08MY From (V) A09110	-	6	Enquire
-	6G3379231AA	M3.5 x 38 SCR	6G3379231AA M3.5 x 38 SCR Window Defrost Grille	-	4	Enquire
-	8G4318D404BB	DCT ASY-HTR AIR DSTR	8G4318D404BB DCT ASY-HTR AIR DSTR 08MY From (V) A09110	-	1	Enquire
-	4G4318D404AD	DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD	4G4318D404AD DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD -	-	1	Enquire
-	8G4318D404AC	Duct Assembly, Heater Air Distribution, LHD	8G4318D404AC Duct Assembly, Heater Air Distribution, LHD 08MY From (V) A09110	-	1	Enquire
-	8G4319C804AC	DCT ASY AC I/PNL CTR	8G4319C804AC DCT ASY AC I/PNL CTR 08MY From (V) A09110	-	1	Enquire
-	8G4319C805AC	DCT ASY AC I/PNL CTR	8G4319C805AC DCT ASY AC I/PNL CTR 08MY From (V) A09110	-	1	Enquire
-	8D33046B31BB	Register Assembly, LH, Iridium Silver	8D33046B31BB Register Assembly, LH, Iridium Silver Iridium Silver with White Symbols	-	2	Enquire
-	8D33046B30BB	Register Assembly, RH, Iridium Silver	8D33046B30BB Register Assembly, RH, Iridium Silver Iridium Silver with White Symbols	-	2	Enquire
-	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP 08MY From (V) A09110	-	12	Enquire
-	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw 08MY From (V) A09110	-	12	Enquire
-	9D33014K96AA	Duct Assembly, Aircon Footwell, RH, RHD	9D33014K96AA Duct Assembly, Aircon Footwell, RH, RHD 09MY	-	1	Enquire
-	8G43014K96AB	Duct Assembly, Aircon Footwell, RH, LHD	8G43014K96AB Duct Assembly, Aircon Footwell, RH, LHD 08MY From (V) A09110	-	1	Enquire
-	8G43014K97AB	DCT ASY VEN AIR LWR	8G43014K97AB DCT ASY VEN AIR LWR 08MY From (V) A09110	-	1	Enquire
-	9D33014K97AA	Duct Assembly, Aircon Footwell, LH, LHD	9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD 09MY	-	1	Enquire
-	7G43370807AA	ASY TPM BRKT	7G43370807AA ASY TPM BRKT 07MY	-	1	Enquire
-	7G43370807AB	ASSEMBLY TPM BRACKET	7G43370807AB ASSEMBLY TPM BRACKET 08MY From (V) A09110	-	1	Enquire
1	6G3304432BD	Duct Assembly, Windshield Deflector, RHD	6G3304432BD Duct Assembly, Windshield Deflector, RHD -	-	1	Enquire
2	4G4319E658AC	Hose, A/C Window Demister	4G4319E658AC Hose, A/C Window Demister -	-	2	Enquire
3	4G4319E680AD	Connector, A/C Demister Hose	4G4319E680AD Connector, A/C Demister Hose -	-	2	Enquire
4	4G43C046B80AC	SE I/PNL DEF OPG GRL	4G43C046B80AC SE I/PNL DEF OPG GRL -	-	2	Enquire
5	4G4318C491AJ	Grille - Window Defrost	4G4318C491AJ Grille - Window Defrost -	-	2	Enquire
6	4G4318633BC	DUCT ASSY HEATER OUTLET RH	4G4318633BC DUCT ASSY HEATER OUTLET RH -	-	1	Enquire
7	4G4318D404BD	DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE RHD	4G4318D404BD DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE RHD 07MY	-	1	Enquire
8	702943	Rivet, 3.2 x 12.5, Blind Al Dome Head	702943 Rivet, 3.2 x 12.5, Blind Al Dome Head 08MY From (V) A09110	-	4	Enquire
9	6G3319C735AB	DUCT - AIRCON INSTRUMENT PANEL REGISTER RH	6G3319C735AB DUCT - AIRCON INSTRUMENT PANEL REGISTER RH 07MY	-	1	Enquire
10	6G3319C850AB	DUCT - AIRCON INSTRUMENT PANEL REGISTER LH	6G3319C850AB DUCT - AIRCON INSTRUMENT PANEL REGISTER LH 07MY	-	1	Enquire
11	4G43046B31BB	Register Assembly, Air Con, LH	4G43046B31BB Register Assembly, Air Con, LH Graphite with White Symbols	-	2	Enquire
12	4G43046B30BB	Register Assembly, Air Con, RH	4G43046B30BB Register Assembly, Air Con, RH Graphite with White Symbols	-	2	Enquire
13	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS -	-	4	Enquire
14	8G43014K96BB	DCT ASSY VEN AIR	8G43014K96BB DCT ASSY VEN AIR 08MY From (V) A09110	-	1	Enquire
15	8G43014K97BB	Duct Assembly, Aircon Footwell, LH, RHD	8G43014K97BB Duct Assembly, Aircon Footwell, LH, RHD 08MY From (V) A09110	-	1	Enquire
16	7G43014K00AA	Plug Assembly, Foot Duct Outlet	7G43014K00AA Plug Assembly, Foot Duct Outlet -	-	1	Enquire
