Air Con Line, RHD of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

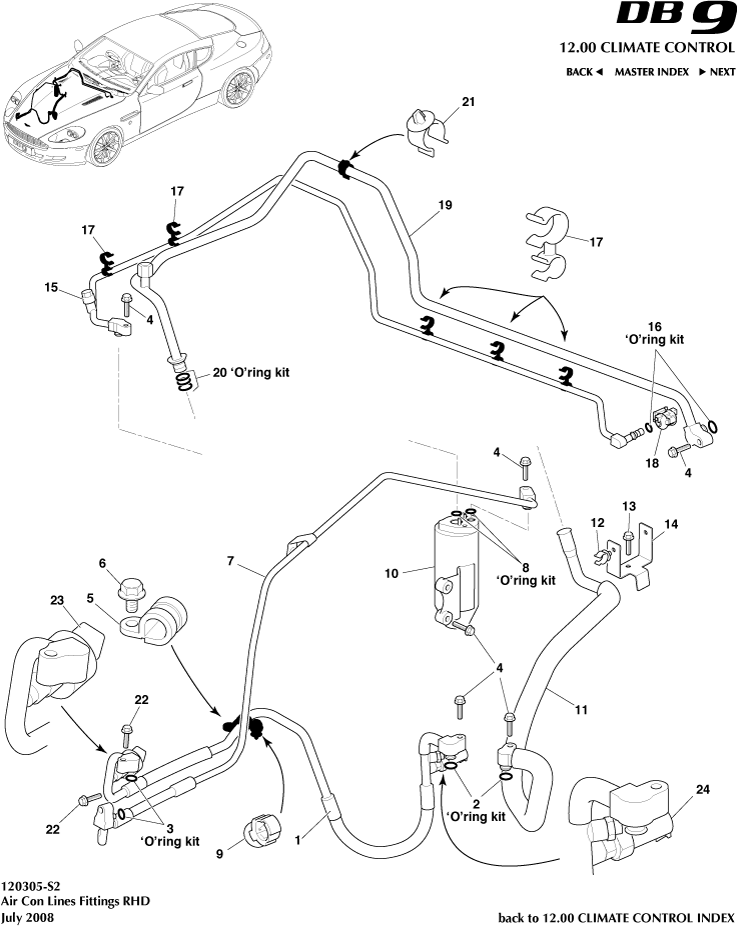

Aston Martin GT DB9 (2004-2017) - Air Con Line, RHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G4319972AA	TUB ASY AC COMP	7G4319972AA TUB ASY AC COMP From 17/9/07	-	1	Enquire
-	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free 08MY From (V) A09110	-	7	Enquire
-	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 08MY From (V) A09110	-	1	Enquire
-	8G4319835CA	TUBE AIRCON DEHYDRATOR	8G4319835CA TUBE AIRCON DEHYDRATOR 08MY From (V) A09110	-	1	Enquire
-	8G4319A705CA	TUB ASY-A/C EVAP OLE	8G4319A705CA TUB ASY-A/C EVAP OLE 08MY From (V) A09110	-	1	Enquire
-	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE 08MY From (V) A09110	-	2	Enquire
-	KY9Y3A052BB	FR LWR W/BONE RH CB	KY9Y3A052BB FR LWR W/BONE RH CB -	-	1	Enquire
-	6F9319D594AA	SW ASY-A/C PRES CTOF	6F9319D594AA SW ASY-A/C PRES CTOF -	-	1	Enquire
1	4G4319972BE	TUB ASY AC COMP	4G4319972BE TUB ASY AC COMP Up to 17/9/07	-	1	Enquire
2	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2) -	-	1	Enquire
3	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) -	-	1	Enquire
4	701150	BOLT M6x1x30 HEX FLG	701150 BOLT M6x1x30 HEX FLG -	-	7	Enquire
5	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
6	700099	SCREW M6x20 HEX FLG	700099 SCREW M6x20 HEX FLG 07MY	-	1	Enquire
7	4G4319D719AF	TUB ASY-A/C DEHY INL	4G4319D719AF TUB ASY-A/C DEHY INL -	-	1	Enquire
8	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) -	-	1	Enquire
9	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	3	Enquire
11	AG4319A705AA	Tube Assy, Evaporator Outlet	AG4319A705AA Tube Assy, Evaporator Outlet -	-	1	Enquire
12	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 -	-	2	Enquire
13	701196	SCREW M6x16 FLG	701196 SCREW M6x16 FLG -	-	1	Enquire
14	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL -	-	1	Enquire
15	4G4319835CF	TUB ASY-A/C DEHY TO	4G4319835CF TUB ASY-A/C DEHY TO 07MY	-	1	Enquire
16	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2 -	-	1	Enquire
17	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel -	-	5	Enquire
18	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
19	4G4319A705CD	TUB ASY-A/C EVAP OLE	4G4319A705CD TUB ASY-A/C EVAP OLE 07MY	-	1	Enquire
20	4G438910912PK	O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	4G438910912PK O-RINGS-EVAP & COND A/C PIPES (PACK OF 3) -	-	1	Enquire
21	701172	Clip, 16 x 2.8 - 3.3	701172 Clip, 16 x 2.8 - 3.3 -	-	3	Enquire
22	699849	SCREW M8x30 HEX FLG	699849 SCREW M8x30 HEX FLG 07MY	-	2	Enquire
23	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
24	1R128910193	A/C SWITCH-CUT OFF	1R128910193 A/C SWITCH-CUT OFF -	-	1	Enquire
