Fuel Tank Assy of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Fuel Tank Assy

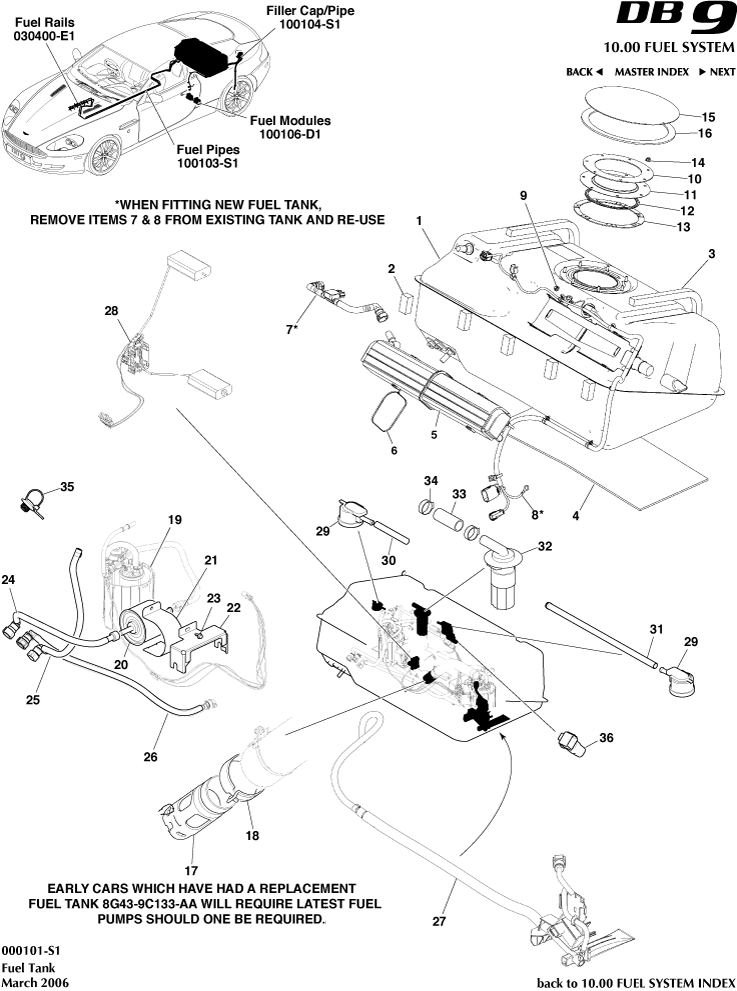

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	BG439C133AA	TNK &CANSTR ASY FUEL	BG439C133AA TNK &CANSTR ASY FUEL From VIN A14278	-	1	Enquire
-	BG439D653AA	BRKT FU/VPR STRG CN	BG439D653AA BRKT FU/VPR STRG CN From VIN A14278	-	1	Enquire
-	SY6Y7E443BA	MAN TRANS HARNS	SY6Y7E443BA MAN TRANS HARNS From VIN A14278	-	1	Enquire
-	BG434090AA	Hose Assembly	BG434090AA Hose Assembly From VIN A14278	-	1	Enquire
-	DG439155AA	Vapour Filter, Fuel Tank	DG439155AA Vapour Filter, Fuel Tank -	-	1	Enquire
-	7G4314407AB	FUEL TANK HARNESS	7G4314407AB FUEL TANK HARNESS From 07MY	-	1	Enquire
-	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged From VIN A14278	-	2	Enquire
-	4G439C055CA	COVER - FUEL TANK SERVICE	4G439C055CA COVER - FUEL TANK SERVICE From VIN A04019	-	1	Enquire
-	697820	NUT M6 FLG	697820 NUT M6 FLG From VIN A14278	-	7	Enquire
-	4G439074CB	PLATE ASSY FUEL TANK COVER	4G439074CB PLATE ASSY FUEL TANK COVER Includes cover plate gasket	-	1	Enquire
-	4G439047BA	HOS ASY FU/TNK FILL	4G439047BA HOS ASY FU/TNK FILL -	-	1	Enquire
-	4G439B260BC	Pump & Reservoir Assy - Fuel LHS	4G439B260BC Pump & Reservoir Assy - Fuel LHS Up To VIN A10559	-	1	Enquire
-	8G439B260AC	LH FUEL PUMP & RESERVOIR	8G439B260AC LH FUEL PUMP & RESERVOIR From VIN A10560	-	1	Enquire
-	6G339B260CC	Fuel Pump and Reservoir RH	6G339B260CC Fuel Pump and Reservoir RH From VIN A10560	-	1	Enquire
-	4G439155BA	Fuel Filter LH	4G439155BA Fuel Filter LH Up To VIN A10559	-	1	Enquire
-	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH From VIN A10560	-	1	Enquire
-	8G439155AA	Fuel Filter LH	8G439155AA Fuel Filter LH From VIN A10560	-	1	Enquire
-	SY9Y48002CA	DIFF ACCESS HATCH RH	SY9Y48002CA DIFF ACCESS HATCH RH From VIN A14278	-	2	Enquire
-	4G439B260CA	PMP JET ASY-FUL RHS	4G439B260CA PMP JET ASY-FUL RHS Up To VIN A10559	-	1	Enquire
-	6G339B260BD	Module Assy, Jet Pump	6G339B260BD Module Assy, Jet Pump From VIN A10560	-	2	Enquire
-	RY6324100FCW	ARMREST ASY RHD DVR	RY6324100FCW ARMREST ASY RHD DVR -	-	4	Enquire
-	1R123410013	O RING	1R123410013 O RING Not illustrated	-	1	Enquire
1	BG433411296	F/TNK & CNSTR KT ROW	BG433411296 F/TNK & CNSTR KT ROW Up To VIN A14277. ROW	-	1	Enquire
1	BG433411297	TNK & CNSTR ASY FUEL	BG433411297 TNK & CNSTR ASY FUEL Up To VIN A14277. Federal	-	1	Enquire
2	4G43M2D28AB	FOAM PAD - TANK FRONT	4G43M2D28AB FOAM PAD - TANK FRONT -	-	5	Enquire
3	4G43482550AA	FOAM PAD - TANK UPPER	4G43482550AA FOAM PAD - TANK UPPER -	-	2	Enquire
4	4G43XC468090AB	FOAM PAD - TANK BASE	4G43XC468090AB FOAM PAD - TANK BASE -	-	1	Enquire
5	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER Up To VIN A14277	-	1	Enquire
6	SY7Y24404AAW	IP WRAPPED FINISHER	SY7Y24404AAW IP WRAPPED FINISHER Up To VIN A14277	-	1	Enquire
7	HY539W549EA	INT MAN AD LH	HY539W549EA INT MAN AD LH Up To VIN A14277	-	1	Enquire
8	4G4314407AE	FUEL TANK HARNESS	4G4314407AE FUEL TANK HARNESS Up To 07MY	-	1	Enquire
9	700142	NUT M6 FLG LOCKING	700142 NUT M6 FLG LOCKING Up To VIN A14277	-	1	Enquire
10	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank -	-	1	Enquire
11	4G439C055AD	COVER-FUEL TANK SERVICE	4G439C055AD COVER-FUEL TANK SERVICE Up To VIN A04018	-	1	Enquire
12	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover - ARRIVING SOON	-	1	Enquire
13	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank -	-	4	Enquire
14	697820	NUT M6 FLG	697820 NUT M6 FLG Up To VIN A14277	-	8	Enquire
15	4G439074AB	PLATE ASY FU TANK CV	4G439074AB PLATE ASY FU TANK CV Includes cover plate gasket	-	1	Enquire
16	4G439073BB	Gasket, Fuel Tank Cover Plate	4G439073BB Gasket, Fuel Tank Cover Plate Part of Plate assy,Fuel Tank Cover	-	1	Enquire
17	4G433410332	CHECK VALVE FUEL FILL	4G433410332 CHECK VALVE FUEL FILL -	-	1	Enquire
18	702594	CLAMP BOX15 SPRING BAND	702594 CLAMP BOX15 SPRING BAND -	-	1	Enquire
19	4G439B260AC	Pump & Reservoir Assy - Fuel RHS	4G439B260AC Pump & Reservoir Assy - Fuel RHS Up To VIN A10559	-	1	Enquire
20	4G439155AB	Fuel Filter RHS	4G439155AB Fuel Filter RHS Up To VIN A10559	-	1	Enquire
21	4G439180AB	BRACKET - FUEL FILTER	4G439180AB BRACKET - FUEL FILTER Up To VIN A14277	-	2	Enquire
22	4G439180BA	BRKT FU/CONN RTN	4G439180BA BRKT FU/CONN RTN Up to 07MY	-	2	Enquire
23	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16 -	-	2	Enquire
24	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
25	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
26	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
27	4G439B260DA	JET PUMP LH	4G439B260DA JET PUMP LH Up To VIN A10559	-	1	Enquire
28	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender -	-	1	Enquire
29	4G439B190BA	ROLL OVER VALVE	4G439B190BA ROLL OVER VALVE -	-	2	Enquire
30	4G434090BB	HOSE - FUEL/VAPOUR	4G434090BB HOSE - FUEL/VAPOUR -	-	1	Enquire
31	4G434090AB	HOSE - FUEL/VAPOUR	4G434090AB HOSE - FUEL/VAPOUR -	-	1	Enquire
32	4G439B190AA	FUEL LEVEL VENT VALVE	4G439B190AA FUEL LEVEL VENT VALVE -	-	1	Enquire
33	4G434090CA	HOSE - FUEL VAPOUR	4G434090CA HOSE - FUEL VAPOUR -	-	1	Enquire
34	RY6324100FCW	ARMREST ASY RHD DVR	RY6324100FCW ARMREST ASY RHD DVR -	-	2	Enquire
35	KY9YQ3A050DDA	SHROUD FWD FLWB RH	KY9YQ3A050DDA SHROUD FWD FLWB RH -	-	4	Enquire
36	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	4G433710041 ELEC CONNECTOR-6 WAY SUMITOMO Less O Ring	-	4	Enquire
