Fuel Filler Cap & Pipe, Coupe

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Fuel Filler Cap & Pipe, Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

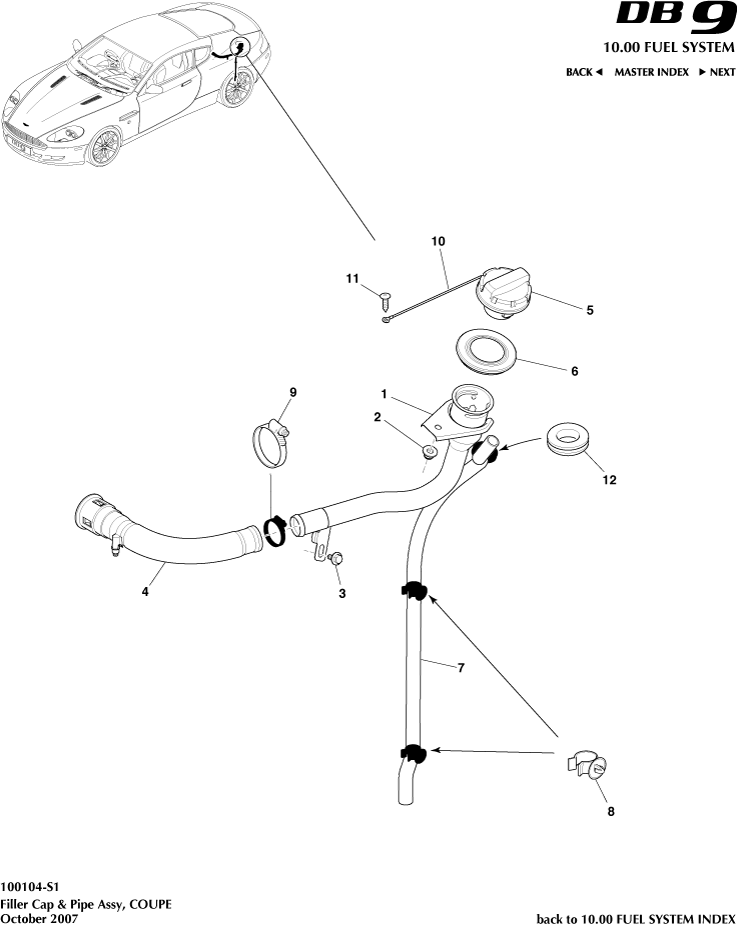

Fuel Filler Cap & Pipe, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG439032AA
PIP & HOS ASY FU/TNK
- 		- 1 Enquire
- 703151
Screw M6x16 Washer Hex HD Chrome Free
08MY From (V) A09110 		- 1 Enquire
- 702594
CLAMP BOX15 SPRING BAND
- 		- 1 Enquire
- 4G439030AF
Cap Assembly, Fuel Filler
08MY From (V) A09110 		- 1 Enquire
- 1R12343982AA
FILTER DRAIN TUBE FUEL FILLER BOWL
- 		- 1 Enquire
1 DG439034AA
Pipe Assembly, Fuel Tank Filler
- 		- 1 Enquire
2 701194
NUT&WASHER M6 HEXFLG
- 		- 1 Enquire
3 701196
SCREW M6x16 FLG
- 		- 1 Enquire
4 4G439047AA
HOSE - FUEL TANK FILLER
Pt of 4G43-9032-AD 		- 1 Enquire
5 4G439030AE
CAP - FUEL FILLER
07MY 		- 1 Enquire
6 4G438703AA
FUEL FILLER PIPE GAITER
- 		- 1 Enquire
7 4G439C071AA
PIPE FUEL FILL OVERFLOW
- 		- 1 Enquire
8 4G439A317AA
Clip, fuel fill overflow pipe
- 		- 2 Enquire
9 1R12341157AA
CLAMP - HOSE FILLER PIPE
- 		- 1 Enquire
10 4G439C027AA
TETHER FUEL TANK FILLER CAP
- 		- 1 Enquire
11 702288
Screw, 4.2 x 16 Self Tapping
- 		- 1 Enquire
