Front Wheel and Tyre Assembly of Aston Martin Aston Martin DBS V12

View All

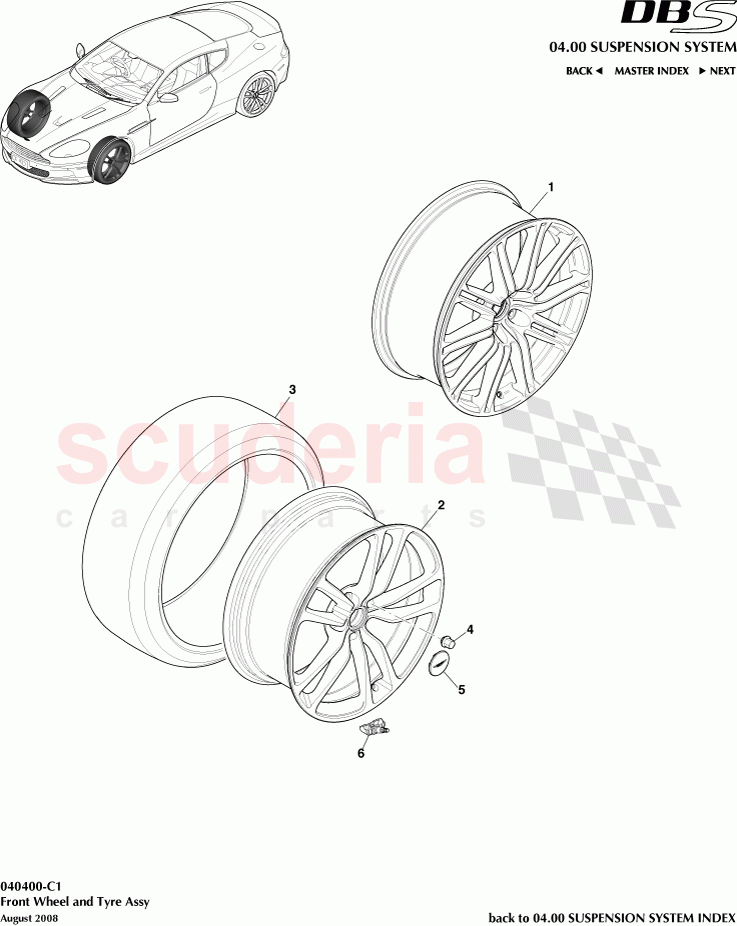

Aston Martin DBS V12 - Front Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D331007HC	FRONT WHEEL-20in GRAPHITE	Enquire	To Order
	8D331007AC	FRONT WHEEL-20 in SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD331007CA	WHL FRT GRAPH-20 in	Enquire	To Order
	BD331007AA	FRT WHL SILVER-20 in	Enquire	To Order
	CD331007JA	WHEEL FRONT 20 INCH REV DIAMOND TURNED BLACK	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D331508CA	Tyre, Road Front Winter, 245/35 R20	Enquire	To Order
	FG431508AA	ROAD TYRE FRONT-20in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096HAPK	BADGE-WHL CENTRE(4)	Enquire	To Order
	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD23360671CA	TPMS Valve and Transmitter	Enquire	To Order
	CD23360671DA	TPMS Valve and Transmitter Assy	Enquire	To Order
	8D33974747AA	WINTER TYRE LABEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D331007HC	FRONT WHEEL-20in GRAPHITE	8D331007HC FRONT WHEEL-20in GRAPHITE Graphite	-	2	Enquire
1	8D331007AC	FRONT WHEEL-20 in SILVER	8D331007AC FRONT WHEEL-20 in SILVER Silver	-	2	Enquire
2	BD331007CA	WHL FRT GRAPH-20 in	BD331007CA WHL FRT GRAPH-20 in Graphite, optional (introduced 09MY)	-	2	Enquire
2	BD331007AA	FRT WHL SILVER-20 in	BD331007AA FRT WHL SILVER-20 in Silver, optional (introduced 09MY)	-	2	Enquire
2	CD331007JA	WHEEL FRONT 20 INCH REV DIAMOND TURNED BLACK	CD331007JA WHEEL FRONT 20 INCH REV DIAMOND TURNED BLACK Carbon Edition	-	2	Enquire
2	BD331007EA	WHEEL FRONT-20inch DIAMOND TURNED BLACK	BD331007EA WHEEL FRONT-20inch DIAMOND TURNED BLACK Carbon Edition	-	2	Enquire
2	CD331007KA	WHEEL FRONT 20 inch BLACK	CD331007KA WHEEL FRONT 20 inch BLACK Carbon Edition	-	2	Enquire
3	8D331508CA	Tyre, Road Front Winter, 245/35 R20	8D331508CA Tyre, Road Front Winter, 245/35 R20	-	2	Enquire
3	FG431508AA	ROAD TYRE FRONT-20in	FG431508AA ROAD TYRE FRONT-20in	-	2	Enquire
4	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire
5	HY531A096HAPK	BADGE-WHL CENTRE(4)	HY531A096HAPK BADGE-WHL CENTRE(4) Anthracite/Grey	-	2	Enquire
5	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	HY531A096FAPK BADGE-WHEEL CENTRE (PACK OF 4) Silver	-	2	Enquire
6	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 11MY 433Mhz	-	1	Enquire
6	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 11MY 315Mhz	-	1	Enquire
6	8D33974747AA	WINTER TYRE LABEL	8D33974747AA WINTER TYRE LABEL	-	1	Enquire
6	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER	-	2	Enquire
6	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service	-	2	Enquire
6	1R12360671AA	Transmitter/valve	1R12360671AA Transmitter/valve	-	2	Enquire
6	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	-	2	Enquire
6	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	-	Enquire
