Front Suspension Assembly of Aston Martin Aston Martin DBS V12

View All

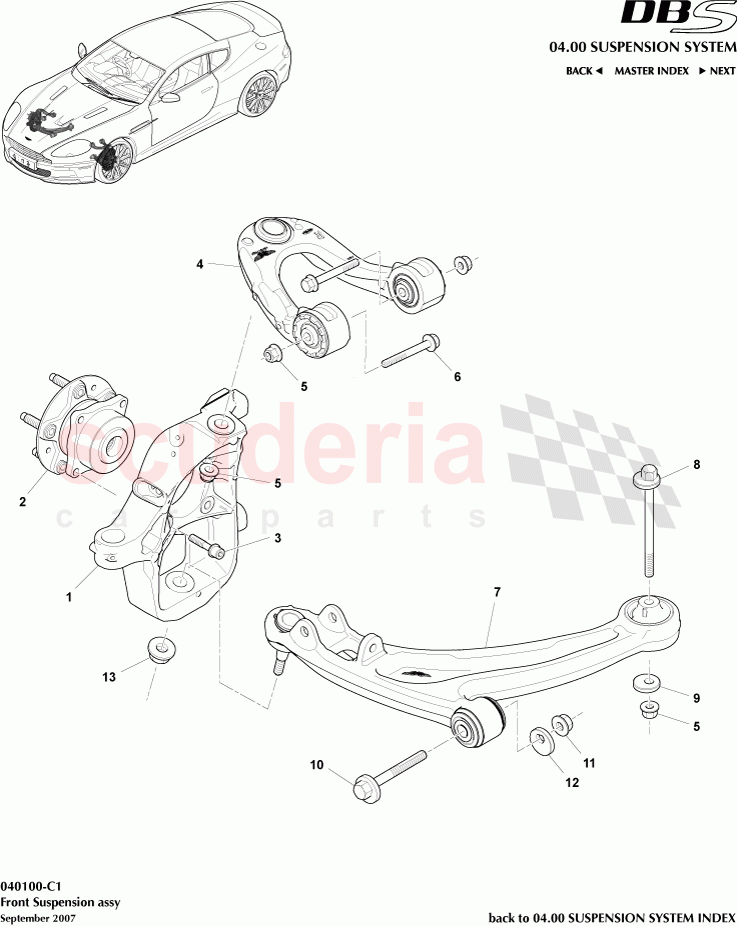

Aston Martin DBS V12 - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D333K186AC	Knuckle Assy, Front Wheel, RH	Enquire	To Order
	8D333K185AC	Knuckle Assy, Front Wheel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

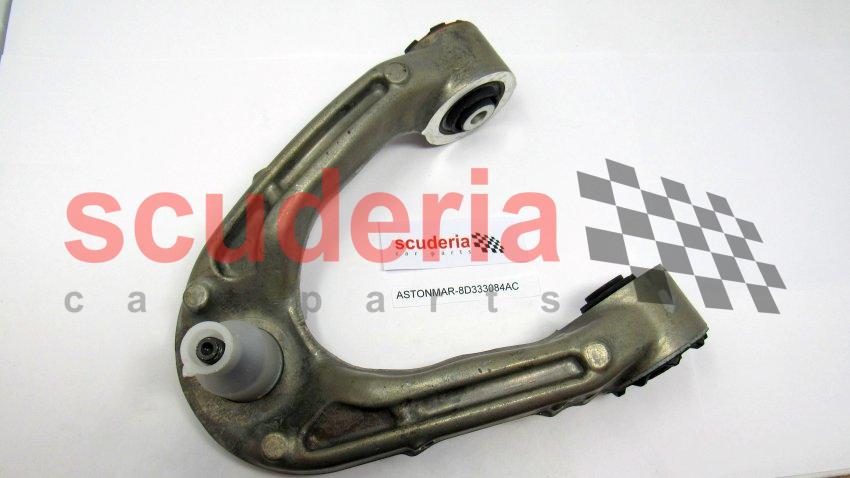

	8D333084AC	Arm Bush Front Suspension Upper RH	Enquire	To Order
	8D333091AC	Arm Bush Front Suspension Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	Enquire	To Order
	8D333A053AC	FRONT SUSPENSION LOWER ARM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B236BB	Bolt M12 Eccentric Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

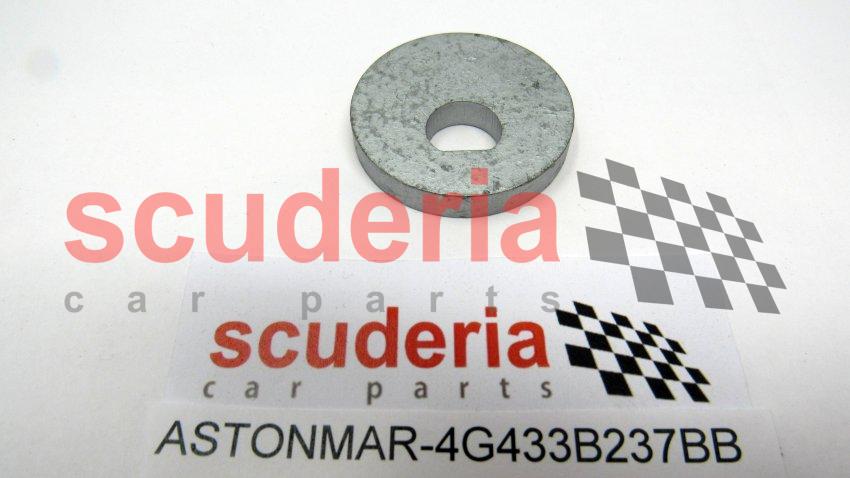

	4G433B237BB	Washer, M12, Eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

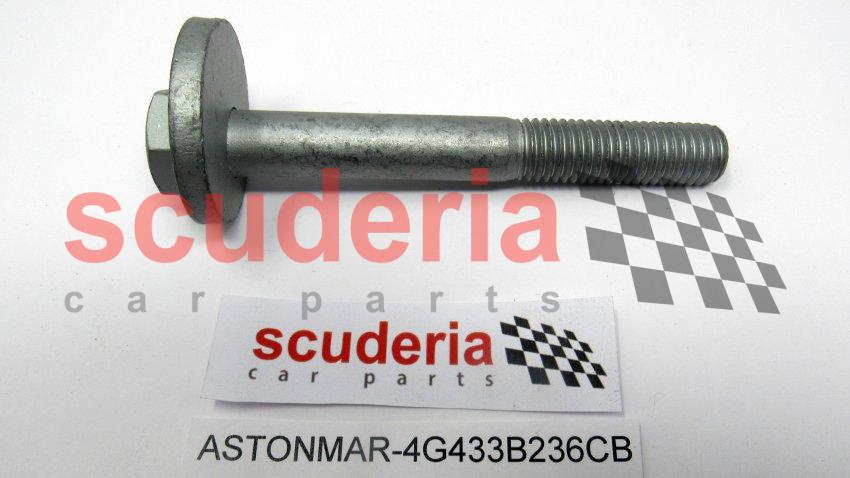

	4G433B236CB	Bolt, M14, eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

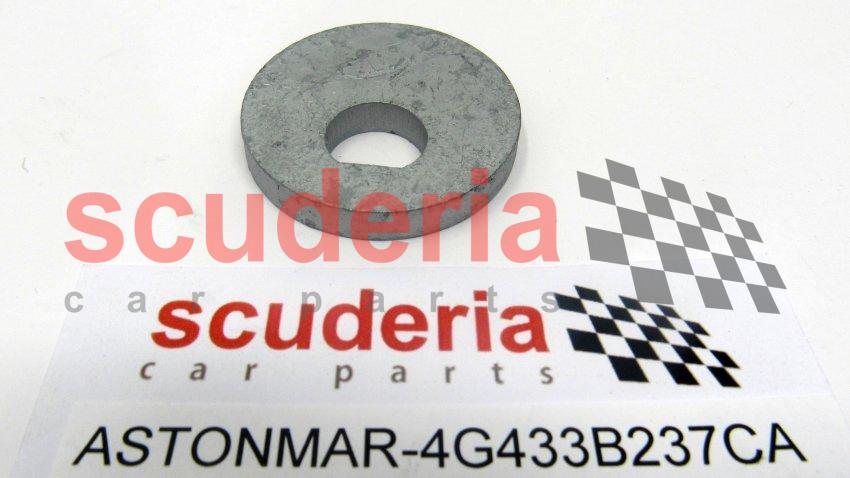

	4G433B237CA	Washer, M14 eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

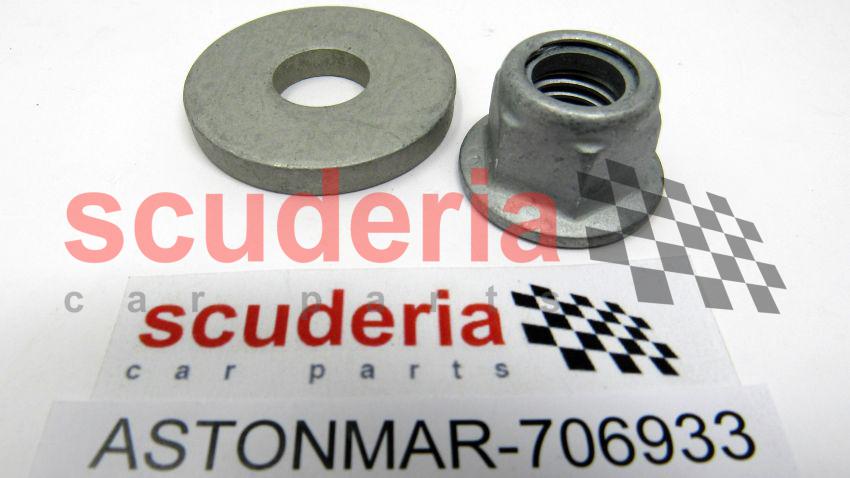

	706933	Nut And Washer Set M12	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D333K186AC	Knuckle Assy, Front Wheel, RH	8D333K186AC Knuckle Assy, Front Wheel, RH	-	1	Enquire
1	8D333K185AC	Knuckle Assy, Front Wheel, LH	8D333K185AC Knuckle Assy, Front Wheel, LH	-	1	Enquire
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	4G432B663AD HUB & BEARING ASSEMBLY, FRONT	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Bearing to Knuckle	-	8	Enquire
4	8D333084AC	Arm Bush Front Suspension Upper RH	8D333084AC Arm Bush Front Suspension Upper RH	-	1	Enquire
4	8D333091AC	Arm Bush Front Suspension Upper LH	8D333091AC Arm Bush Front Suspension Upper LH	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	-	8	Enquire
6	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	-	4	Enquire
7	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	8D333A052AC ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	-	1	Enquire
7	8D333A053AC	FRONT SUSPENSION LOWER ARM LH	8D333A053AC FRONT SUSPENSION LOWER ARM LH	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric	-	2	Enquire
11	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	-	2	Enquire
12	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric	-	2	Enquire
13	706933	Nut And Washer Set M12	706933 Nut And Washer Set M12	-	2	Enquire
