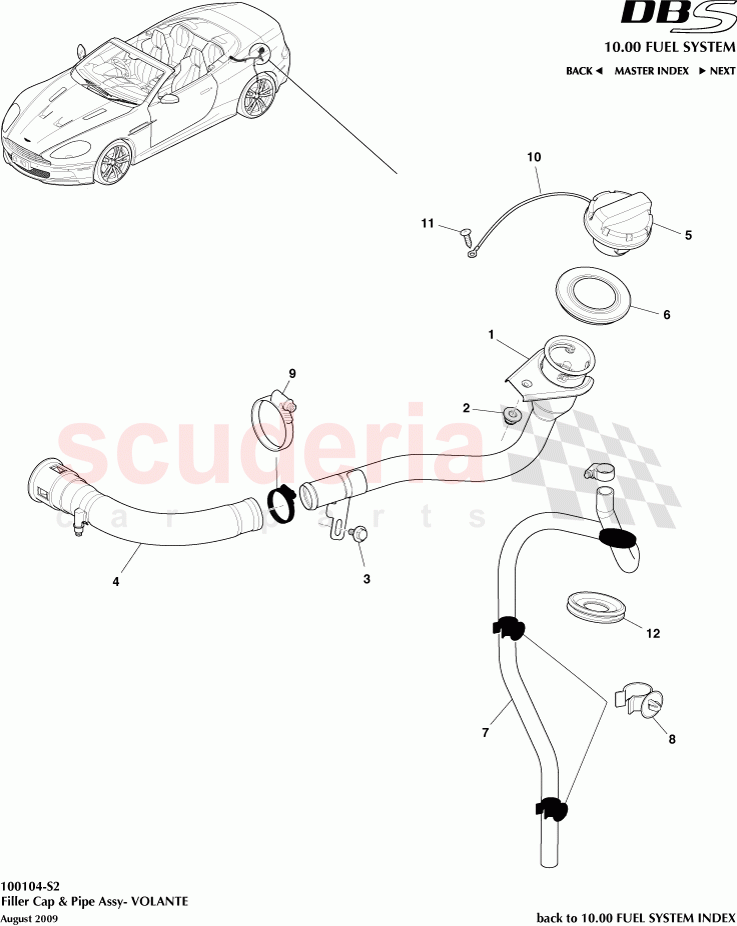

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G439032BD	PIPE & HOSE ASSY FUEL TANK FILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439047AA	HOSE - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GG339030AA	CAP FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438703AA	FUEL FILLER PIPE GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C071AA	PIPE FUEL FILL OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A317AA	Clip, fuel fill overflow pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341157AA	CLAMP - HOSE FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C027AA	TETHER FUEL TANK FILLER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702288	Screw, 4.2 x 16 Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314605BA	Grommet, rubber	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439032BD	PIPE & HOSE ASSY FUEL TANK FILL	4G439032BD PIPE & HOSE ASSY FUEL TANK FILL	-	1	Enquire
1	4G439032BD	PIPE & HOSE ASSY FUEL TANK FILL	4G439032BD PIPE & HOSE ASSY FUEL TANK FILL	-	1	Enquire
2	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	1	Enquire
3	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
4	4G439047AA	HOSE - FUEL TANK FILLER	4G439047AA HOSE - FUEL TANK FILLER	-	1	Enquire
5	GG339030AA	CAP FUEL TANK	GG339030AA CAP FUEL TANK	-	1	Enquire
6	4G438703AA	FUEL FILLER PIPE GAITER	4G438703AA FUEL FILLER PIPE GAITER	-	1	Enquire
7	4G439C071AA	PIPE FUEL FILL OVERFLOW	4G439C071AA PIPE FUEL FILL OVERFLOW	-	1	Enquire
8	4G439A317AA	Clip, fuel fill overflow pipe	4G439A317AA Clip, fuel fill overflow pipe	-	2	Enquire
9	1R12341157AA	CLAMP - HOSE FILLER PIPE	1R12341157AA CLAMP - HOSE FILLER PIPE	-	1	Enquire
10	4G439C027AA	TETHER FUEL TANK FILLER CAP	4G439C027AA TETHER FUEL TANK FILLER CAP	-	1	Enquire
11	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping	-	1	Enquire
12	4G4314605BA	Grommet, rubber	4G4314605BA Grommet, rubber	-	1	Enquire
