Aston Martin DBS V12 - Exhaust System

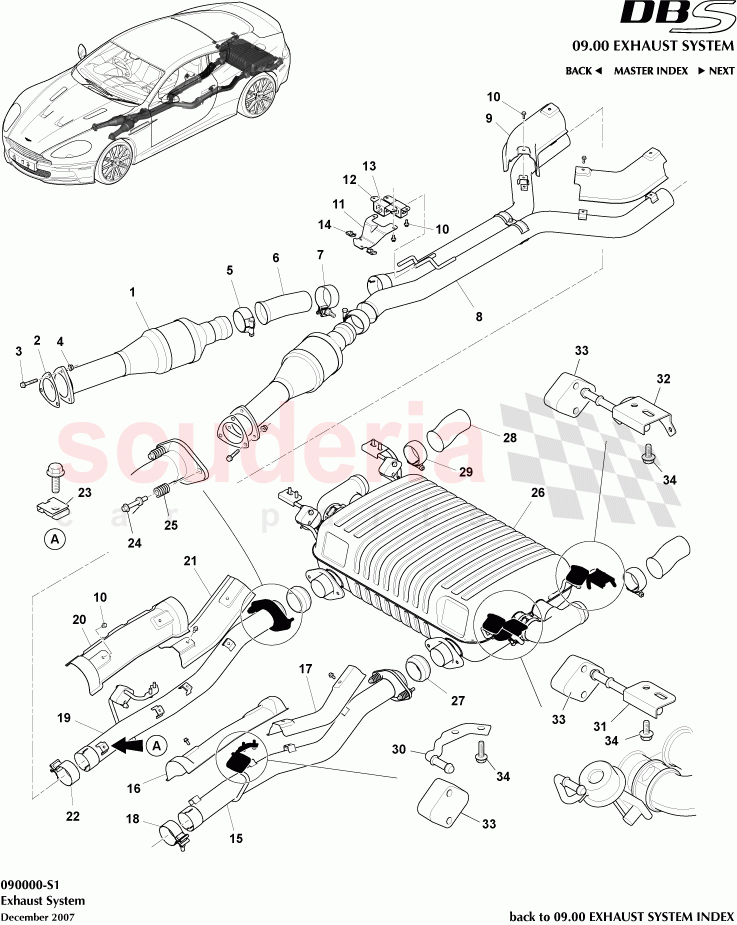

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435E211AD	Catalyst & Pipe Assembly	$1,147.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	To Order

Photo	Part No	Description	Price (each)	Stock
	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220FA	Pipe, Exhaust Intermediate Stub	$43.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220EA	Pipe, Intermediate Exhaust Centre	$669.19	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221AA	Shield Assy, Exhaust System, Rear Front	$202.16	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962ED	Bracket, Support	$26.01	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	$86.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	$8.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332185BA	Clip, spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220BE	INTER PIPE - EXH LH	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	FD335G221BA	SHL ASY EXH SYS RR R	$206.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	4G4332185BA	Clip, spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AE	INT PIPE - EXHAUST	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	FD335G221BA	SHL ASY EXH SYS RR R	$206.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	4G4332185BA	Clip, spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	$16.26	To Order

Photo	Part No	Description	Price (each)	Stock
	8D335230BF	REAR MUFFLER & BYPASS VALVE ASSY	$7,375.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	$59.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220CA	INTERMEDIATE PIPE - EXHAUST	$42.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201BC	INTERMEDIATE MOUNTING BRACKET LH MANUAL	$14.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201CC	INTERMEDIATE MOUNTING BRACKET RH MANUAL	$14.17	To Order
	4G435N201FC	Mounting Bracket, Muffler, Front LH	$18.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201AC	Mounting Bracket, Muffler, Front RH	$18.65	To Order
	4G435N201HD	Mounting Bracket, Muffler, Rear LH	$72.92	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201GD	Mounting Bracket, Muffler, Rear RH	$32.86	To Order
	4G433510026	Isolator, Exhaust Hanger	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly	$1,147.98	2
2	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	4G435E281AA EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	1
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	6
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	6
5	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
6	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub	$43.36	1
7	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	1
8	CG435220EA	Pipe, Intermediate Exhaust Centre	CG435220EA Pipe, Intermediate Exhaust Centre	$669.19	1
9	AD435G221AA	Shield Assy, Exhaust System, Rear Front	AD435G221AA Shield Assy, Exhaust System, Rear Front	$202.16	2
10	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	16
11	4G433962ED	Bracket, Support	4G433962ED Bracket, Support	$26.01	1
12	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	$86.84	2
13	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	$8.43	2
14	4G4332185BA	Clip, spring	4G4332185BA Clip, spring	-	2	Enquire
15	4G435220BE	INTER PIPE - EXH LH	4G435220BE INTER PIPE - EXH LH	$585.13	1
16	FD335G221BA	SHL ASY EXH SYS RR R	FD335G221BA SHL ASY EXH SYS RR R	$206.37	1
17	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	1
18	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	1
18	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	4
18	4G4332185BA	Clip, spring	4G4332185BA Clip, spring	-	4	Enquire
19	4G435220AE	INT PIPE - EXHAUST	4G435220AE INT PIPE - EXHAUST	$585.13	1
20	FD335G221BA	SHL ASY EXH SYS RR R	FD335G221BA SHL ASY EXH SYS RR R	$206.37	1
21	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	1
22	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	1
23	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	4
23	4G4332185BA	Clip, spring	4G4332185BA Clip, spring	-	4	Enquire
24	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head	$4.64	4
25	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange	$16.26	4
26	8D335230BF	REAR MUFFLER & BYPASS VALVE ASSY	8D335230BF REAR MUFFLER & BYPASS VALVE ASSY	$7,375.41	1
27	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust	$59.78	2
28	4G435220CA	INTERMEDIATE PIPE - EXHAUST	4G435220CA INTERMEDIATE PIPE - EXHAUST	$42.27	2
29	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
30	4G435N201BC	INTERMEDIATE MOUNTING BRACKET LH MANUAL	4G435N201BC INTERMEDIATE MOUNTING BRACKET LH MANUAL	$14.17	1
31	4G435N201CC	INTERMEDIATE MOUNTING BRACKET RH MANUAL	4G435N201CC INTERMEDIATE MOUNTING BRACKET RH MANUAL	$14.17	1
31	4G435N201FC	Mounting Bracket, Muffler, Front LH	4G435N201FC Mounting Bracket, Muffler, Front LH	$18.65	1
32	4G435N201AC	Mounting Bracket, Muffler, Front RH	4G435N201AC Mounting Bracket, Muffler, Front RH	$18.65	1
32	4G435N201HD	Mounting Bracket, Muffler, Rear LH	4G435N201HD Mounting Bracket, Muffler, Rear LH	$72.92	1
33	4G435N201GD	Mounting Bracket, Muffler, Rear RH	4G435N201GD Mounting Bracket, Muffler, Rear RH	$32.86	1
33	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger	$68.98	6
34	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	$0.29	12
