Name: Parking Brake (Manual) (RHD)
Rating: 5.0 (1 reviews)

Parking Brake (Manual) (RHD) of Aston Martin Aston Martin DBS V12

View All

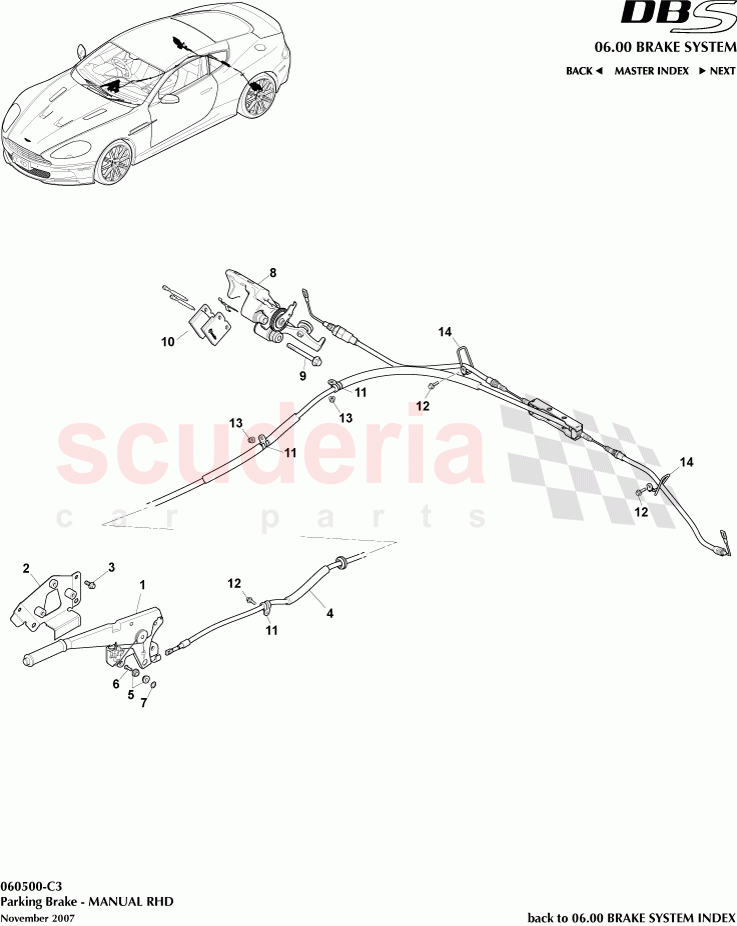

Aston Martin DBS V12 - Parking Brake (Manual) (RHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433011504	Handbrake Lever Assembly, RHD	$328.18	To Order
	1R12302928AC	HANDLE LEVER H/BRAKE	$202.68	To Order
	4G432C637BB	HANDBRAKE HANDLEVER	$360.82	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A686BB	Bracket Assembly, Handbrake Lever, RHD	$897.20	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332853AB	Cable and Conduit	$372.45	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33439136AA	Trunnion, Handbrake Cable	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332K605AA	PIN PIVOT CABLE HANDBRAKE	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	$13.32	To Order

Photo	Part No	Description	Price (each)	Stock
	AD232C464BB	Caliper, Handbrake, RH	$672.88	To Order
	AD232C465BB	Caliper, Handbrake, LH	$672.88	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332B296BA	KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER	$61.42	To Order
	4G43224259BA	SPRING - ANTI RATTLE HANDBRAKE CAL RH	$71.07	To Order
	4G432B296BA	PINS - PAD RETAINING	$66.36	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	694891	P-CLIP	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	3784688	Switch, Handbrake	$351.69	To Order
	8D33229047BA	Pigtail	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433011504	Handbrake Lever Assembly, RHD	4G433011504 Handbrake Lever Assembly, RHD	$328.18	1
1	1R12302928AC	HANDLE LEVER H/BRAKE	1R12302928AC HANDLE LEVER H/BRAKE	$202.68	1
1	4G432C637BB	HANDBRAKE HANDLEVER	4G432C637BB HANDBRAKE HANDLEVER	$360.82	1
2	4G432A686BB	Bracket Assembly, Handbrake Lever, RHD	4G432A686BB Bracket Assembly, Handbrake Lever, RHD	$897.20	1
3	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	$0.29	6
4	8D332853AB	Cable and Conduit	8D332853AB Cable and Conduit	$372.45	1
5	6G33439136AA	Trunnion, Handbrake Cable	6G33439136AA Trunnion, Handbrake Cable	$2.34	2
6	6G332K605AA	PIN PIVOT CABLE HANDBRAKE	6G332K605AA PIN PIVOT CABLE HANDBRAKE	$1.77	1
7	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10	$13.32	1
8	AD232C464BB	Caliper, Handbrake, RH	AD232C464BB Caliper, Handbrake, RH	$672.88	1
8	AD232C465BB	Caliper, Handbrake, LH	AD232C465BB Caliper, Handbrake, LH	$672.88	1
9	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	4G432C564CA Bolt M10x87 Hex flange, secures EPB	$3.17	4
10	8D332B296BA	KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER	8D332B296BA KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER (1 per caliper)	$61.42	2
10	4G43224259BA	SPRING - ANTI RATTLE HANDBRAKE CAL RH	4G43224259BA SPRING - ANTI RATTLE HANDBRAKE CAL RH (1 per caliper)	$71.07	2
10	4G432B296BA	PINS - PAD RETAINING	4G432B296BA PINS - PAD RETAINING (2 per caliper)	$66.36	4
10	4G432C562BB	PADS HANDBRAKE ARRIVING SOON	4G432C562BB PADS HANDBRAKE (per axle) ARRIVING SOON	$181.75	1
10	4G432W065AA	BOOT - SLIDING PIN	4G432W065AA BOOT - SLIDING PIN	$49.60	2
11	694891	P-CLIP	694891 P-CLIP	$4.08	4
12	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	3
13	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	$0.12	3
14	3784688	Switch, Handbrake	3784688 Switch, Handbrake	$351.69	1
14	8D33229047BA	Pigtail	8D33229047BA Pigtail	-	2	Enquire
