Front Brake Disc Assembly of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Front Brake Disc Assembly

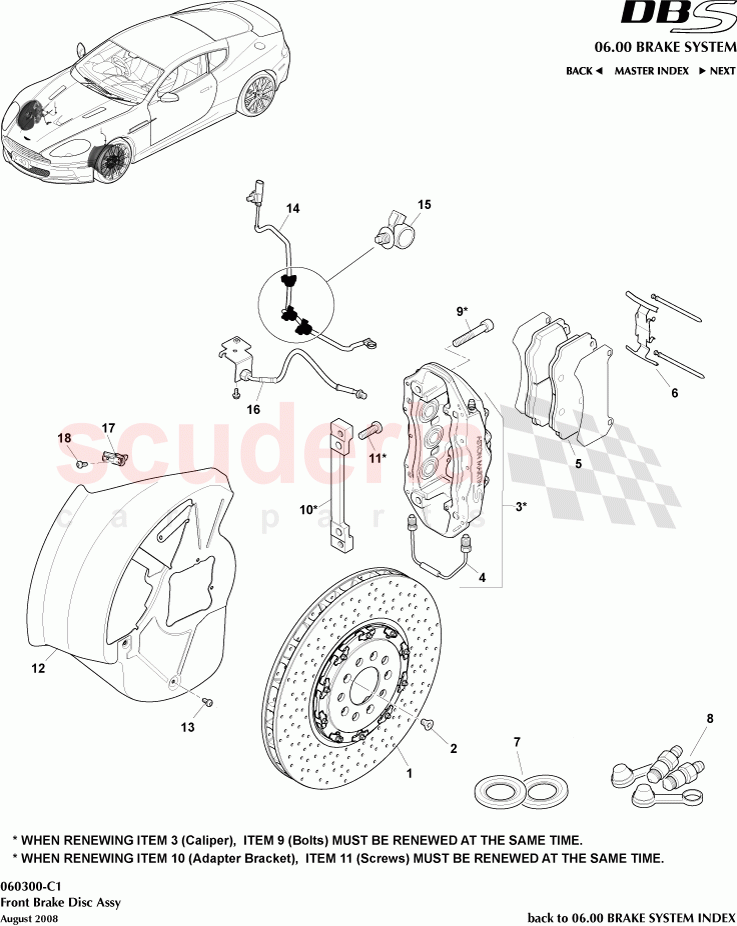

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED231125CA	DSC FRT WHL BRK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D332C462CA	CAL ASSY FR RH BLK	Enquire	To Order
	8D332C463CA	CAL ASSY FR LH BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332D007BB	BRAKE PAD KIT FRONT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D332C588AA	KIT PAD SPRING AND PIN FRONT (PER CALIPER)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D3332180AA	KIT DUST BOOT FRONT (PER CALIPER)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	IN STOCK
	4G4333693AA	Cap, Bleed Screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D33CD60AA	Bolt, Caliper to Adaptor Bracket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D332810981	Adaptor Bracket, Front Caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33YA64AA	BOLT - ADAPTOR BRACKET TO KNUCKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332K004AB	Shield front brake disc, RH	Enquire	To Order
	8D332K005AB	Shield front brake disc, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D332L507AA	Pad Wear Lead, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432078AD	Hose Assembly, Front Wheel Brake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439010039	Sensor, Wheel Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026BA	Screw, wheel speed sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	ED231125CA	DSC FRT WHL BRK	ED231125CA DSC FRT WHL BRK	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk IN STOCK	4G432N389AA Screw, M8 x 14, Flat Head Countersunk IN STOCK	-	4	Enquire
3	8D332C462CA	CAL ASSY FR RH BLK	8D332C462CA CAL ASSY FR RH BLK	-	1	Enquire
3	8D332C463CA	CAL ASSY FR LH BLK	8D332C463CA CAL ASSY FR LH BLK	-	1	Enquire
5	8D332D007BB	BRAKE PAD KIT FRONT IN STOCK	8D332D007BB BRAKE PAD KIT FRONT Per Axle Set IN STOCK	-	1	Enquire
6	8D332C588AA	KIT PAD SPRING AND PIN FRONT (PER CALIPER) IN STOCK	8D332C588AA KIT PAD SPRING AND PIN FRONT (PER CALIPER) Per Caliper IN STOCK	-	1	Enquire
7	8D3332180AA	KIT DUST BOOT FRONT (PER CALIPER) IN STOCK	8D3332180AA KIT DUST BOOT FRONT (PER CALIPER) Per Caliper IN STOCK	-	1	Enquire
8	4G432C563AA	Kit, Bleed Screw IN STOCK	4G432C563AA Kit, Bleed Screw Per Caliper IN STOCK	-	1	Enquire
8	4G4333693AA	Cap, Bleed Screw IN STOCK	4G4333693AA Cap, Bleed Screw Per Caliper IN STOCK	-	1	Enquire
9	8D33CD60AA	Bolt, Caliper to Adaptor Bracket IN STOCK	8D33CD60AA Bolt, Caliper to Adaptor Bracket IN STOCK	-	4	Enquire
10	8D332810981	Adaptor Bracket, Front Caliper	8D332810981 Adaptor Bracket, Front Caliper	-	2	Enquire
11	8D33YA64AA	BOLT - ADAPTOR BRACKET TO KNUCKLE	8D33YA64AA BOLT - ADAPTOR BRACKET TO KNUCKLE	-	4	Enquire
12	8D332K004AB	Shield front brake disc, RH	8D332K004AB Shield front brake disc, RH	-	1	Enquire
12	8D332K005AB	Shield front brake disc, LH	8D332K005AB Shield front brake disc, LH	-	1	Enquire
13	4G4313D026AA	Screw, retaining disc shield IN STOCK	4G4313D026AA Screw, retaining disc shield IN STOCK	-	8	Enquire
14	8D332L507AA	Pad Wear Lead, Front	8D332L507AA Pad Wear Lead, Front	-	2	Enquire
15	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100) IN STOCK	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) IN STOCK	-	6	Enquire
16	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH	-	1	Enquire
17	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed	-	2	Enquire
18	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor	-	2	Enquire
