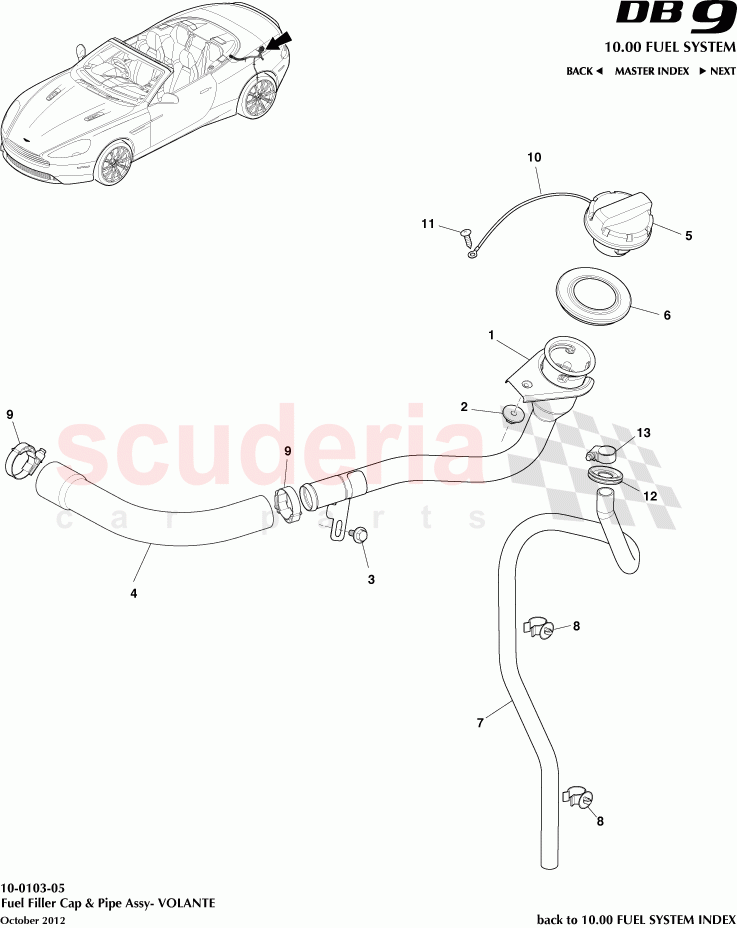

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG439034BA	Pipe, Fuel Tank Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG439047BA	Hose, Fuel Tank Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GG339030AA	CAP FUEL TANK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438703AA	FUEL FILLER PIPE GAITER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG439C071BA	Pipe, Fuel Fill Overflow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A317AA	Clip, fuel fill overflow pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A064AA	Clamp, Fuel Tank Filler Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C027AA	TETHER FUEL TANK FILLER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702288	Screw, 4.2 x 16 Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314605BA	Grommet, rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	IN STOCK

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	DG439034BA	Pipe, Fuel Tank Filler	DG439034BA Pipe, Fuel Tank Filler	-	1	Enquire
2	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	1	Enquire
3	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	1	Enquire
4	DG439047BA	Hose, Fuel Tank Filler	DG439047BA Hose, Fuel Tank Filler	-	1	Enquire
5	GG339030AA	CAP FUEL TANK IN STOCK	GG339030AA CAP FUEL TANK IN STOCK	-	1	Enquire
6	4G438703AA	FUEL FILLER PIPE GAITER IN STOCK	4G438703AA FUEL FILLER PIPE GAITER IN STOCK	-	1	Enquire
7	AG439C071BA	Pipe, Fuel Fill Overflow	AG439C071BA Pipe, Fuel Fill Overflow	-	1	Enquire
8	4G439A317AA	Clip, fuel fill overflow pipe	4G439A317AA Clip, fuel fill overflow pipe	-	2	Enquire
9	4G439A064AA	Clamp, Fuel Tank Filler Hose	4G439A064AA Clamp, Fuel Tank Filler Hose	-	2	Enquire
10	4G439C027AA	TETHER FUEL TANK FILLER CAP IN STOCK	4G439C027AA TETHER FUEL TANK FILLER CAP IN STOCK	-	1	Enquire
11	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping	-	1	Enquire
12	4G4314605BA	Grommet, rubber	4G4314605BA Grommet, rubber	-	1	Enquire
13	699094	Clip, Hose, Spring Loaded, 16-25 IN STOCK	699094 Clip, Hose, Spring Loaded, 16-25 IN STOCK	-	1	Enquire
