Fuel Tank Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Fuel Tank Assembly

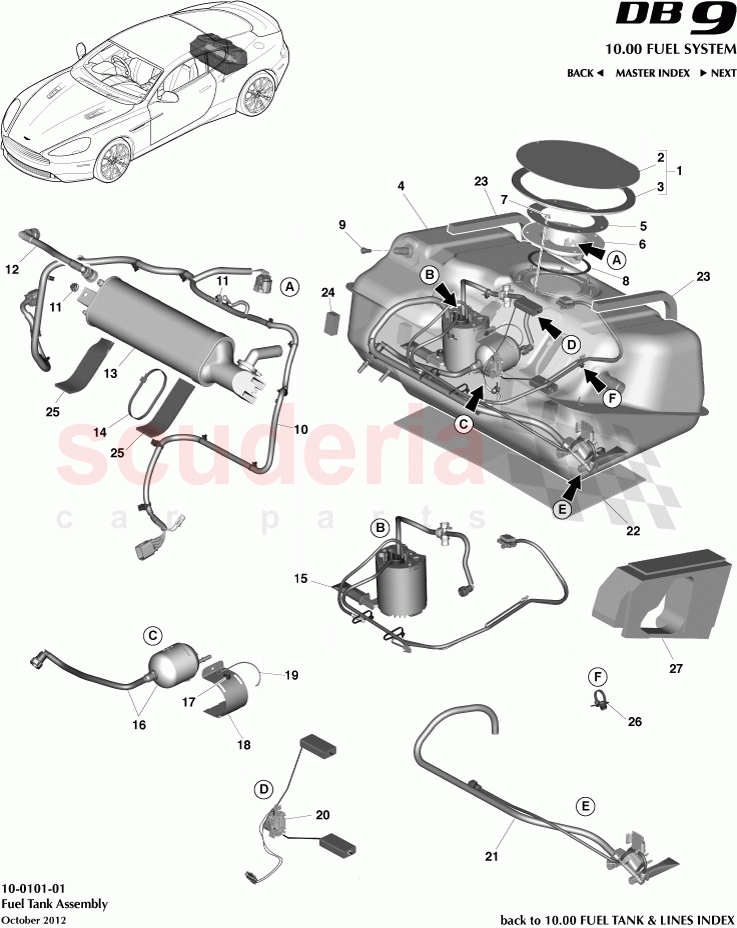

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG439074CB	Plate, Fuel Tank Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG439073AA	Gasket, Fuel Tank Cover Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG439C133AA	Fuel Tank & Canister Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332133BA	Clamp Plate, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339A309AA	Cover, Fuel Tank, Service	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W520101	Nut, M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439073AA	Gasket, Fuel Tank Service Cover	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	DG339155AB	Filter Assembly, Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4314407AC	Harness, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697177	Nut, M6, Flanged	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG434090AA	Hose Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439D653AB	BRKT FU/VPR STRG CN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339H307AB	Pump And Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339155AB	Fuel Filter RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439180AA	Bracket, filter assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3366991AB	Earth Wire	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439E275AA	Sensor - Fuel Tank Sender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339275AA	Jet Pump Module Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43XC468090AB	FOAM PAD - TANK BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M2D28AA	Insulation, Fuel Tank Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43482550AA	FOAM PAD - TANK UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43M2D28BA	Insulation, Fuel Tank Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439012APIA01	TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4348781AA	Fuel Tank Packer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD339C133AF	TNK & CNSTR ASY FUEL	CD339C133AF TNK & CNSTR ASY FUEL 14.5MY	-	1	Enquire
2	DG439074CB	Plate, Fuel Tank Cover	DG439074CB Plate, Fuel Tank Cover	-	1	Enquire
3	DG439073AA	Gasket, Fuel Tank Cover Plate	DG439073AA Gasket, Fuel Tank Cover Plate	-	1	Enquire
4	DG439C133AA	Fuel Tank & Canister Assembly	DG439C133AA Fuel Tank & Canister Assembly	-	1	Enquire
5	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank	-	1	Enquire
6	CD339A309AA	Cover, Fuel Tank, Service	CD339A309AA Cover, Fuel Tank, Service	-	1	Enquire
7	W520101	Nut, M6	W520101 Nut, M6	-	7	Enquire
8	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace Each Time Fuel Tank Service Cover Is Removed. ARRIVING SOON	-	1	Enquire
9	DG339155AB	Filter Assembly, Fuel	DG339155AB Filter Assembly, Fuel	-	1	Enquire
10	DG4314407AC	Harness, Fuel Tank	DG4314407AC Harness, Fuel Tank	-	1	Enquire
11	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged	-	1	Enquire
12	BG434090AA	Hose Assembly	BG434090AA Hose Assembly	-	1	Enquire
13	BG439D653AB	BRKT FU/VPR STRG CN	BG439D653AB BRKT FU/VPR STRG CN	-	1	Enquire
15	CD339H307AB	Pump And Reservoir	CD339H307AB Pump And Reservoir	-	1	Enquire
16	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH	-	1	Enquire
17	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	1	Enquire
18	8G439180AA	Bracket, filter assy	8G439180AA Bracket, filter assy	-	1	Enquire
19	6G3366991AB	Earth Wire	6G3366991AB Earth Wire	-	1	Enquire
20	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender	-	1	Enquire
21	CD339275AA	Jet Pump Module Assembly	CD339275AA Jet Pump Module Assembly	-	2	Enquire
22	4G43XC468090AB	FOAM PAD - TANK BASE	4G43XC468090AB FOAM PAD - TANK BASE	-	1	Enquire
23	4G43M2D28AA	Insulation, Fuel Tank Upper	4G43M2D28AA Insulation, Fuel Tank Upper	-	2	Enquire
24	4G43482550AA	FOAM PAD - TANK UPPER	4G43482550AA FOAM PAD - TANK UPPER	-	5	Enquire
25	BG43M2D28BA	Insulation, Fuel Tank Upper	BG43M2D28BA Insulation, Fuel Tank Upper	-	2	Enquire
26	4G439012APIA01	TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	4G439012APIA01 TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	-	9	Enquire
27	DG4348781AA	Fuel Tank Packer	DG4348781AA Fuel Tank Packer 14.5MY	-	1	Enquire
