Aston Martin DB9 (2004-2012) - Rear Suspension Sub System

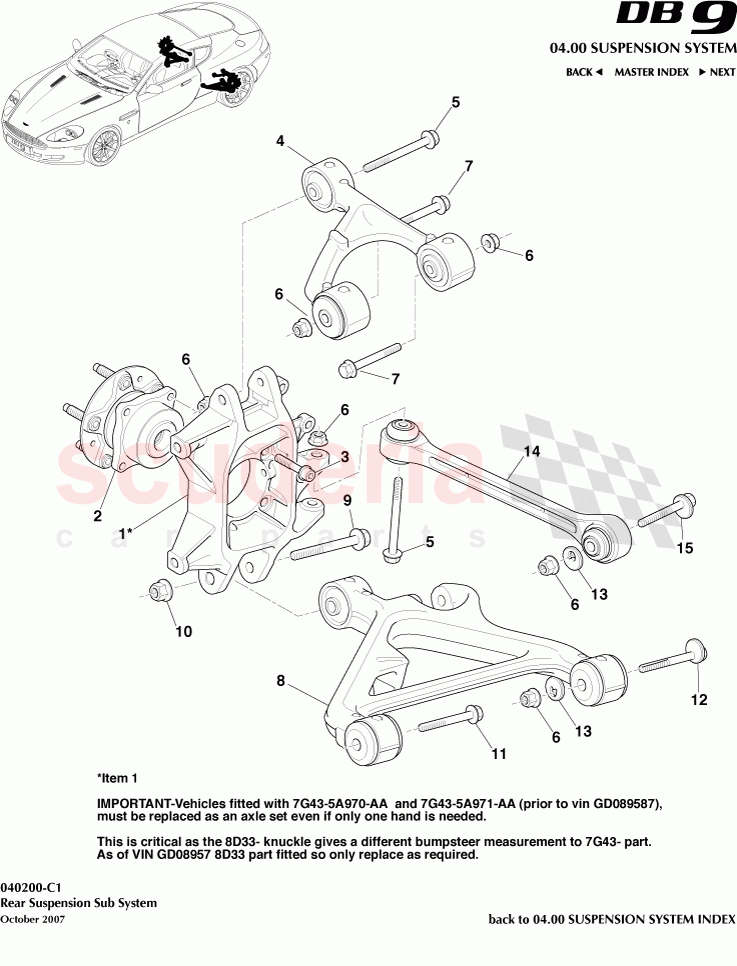

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D335A970AB KNUCKLE - REAR WHEEL RH $1,333.21 To Order
8D335A971AB KNUCKLE - REAR WHEEL LH $1,333.21 To Order
Photo Part No Description Price (each) Stock
4G432B663AD HUB & BEARING ASSEMBLY, FRONT $588.48 To Order
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $27.31 To Order
Photo Part No Description Price (each) Stock
6G335K742AA Arm & Bushing Assy, Rear Suspension, Upper, RH $816.28 To Order
6G335K743AA Arm & Bushing Assy, Rear Suspension, Upper, LH $816.28 To Order
4G435K742BC Arm & Bushing Assy Rear Suspension Upper RH $812.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD33487029AA Bolt, M12 x 110, Hex Flange Head $9.77 To Order
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.27 To Order
Photo Part No Description Price (each) Stock
703181 BOLT M12 X 85 HEX FLANGE CHROME FREE $12.48 To Order
Photo Part No Description Price (each) Stock
4G435B530BE REAR SUSPENSION LOWER ARM RH $727.17 To Order
4G435B531BE ARM & BUSHING REAR LOWER $727.17 To Order
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $21.66 To Order
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.39 To Order
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.69 To Order
Photo Part No Description Price (each) Stock
703274 Bolt, M12, Eccentric $47.10 To Order
Photo Part No Description Price (each) Stock
4G432610840 Washer, M12, Eccentric $56.46 To Order
Photo Part No Description Price (each) Stock
4G435B551AA TOE CONTROL ARM REAR SUSPENSION RH $720.29 To Order
Photo Part No Description Price (each) Stock
4G435K978AB Bolt, M12, Eccentric $45.41 To Order
View All
Rear Suspension Sub System of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D335A970AB
KNUCKLE - REAR WHEEL RH
12MY 		$1,333.21 1
1 8D335A971AB
KNUCKLE - REAR WHEEL LH
12MY 		$1,333.21 1
2 4G432B663AD
HUB & BEARING ASSEMBLY, FRONT 		$588.48 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5) 		$27.31 8
4 6G335K742AA
Arm & Bushing Assy, Rear Suspension, Upper, RH
10.7MY 		$816.28 1
4 6G335K743AA
Arm & Bushing Assy, Rear Suspension, Upper, LH
10.7MY 		$816.28 1
4 4G435K742BC
Arm & Bushing Assy Rear Suspension Upper RH 		$812.00 1
4 4G435K743BC
ARM & BUSHING ASSY REAR SUSPENSION UPPER LH 		$812.00 1
5 AD33487029AA
Bolt, M12 x 110, Hex Flange Head 		$9.77 4
6 703565
NUT-M12 HEX FLANGE 		$1.27 8
7 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE 		$12.48 4
8 4G435B530BE
REAR SUSPENSION LOWER ARM RH 		$727.17 1
8 4G435B531BE
ARM & BUSHING REAR LOWER 		$727.17 1
9 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE 		$21.66 2
10 704596
Nut, M14, Hex Flange Head 		$1.39 2
11 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED 		$6.69 2
12 703274
Bolt, M12, Eccentric 		$47.10 2
13 4G432610840
Washer, M12, Eccentric 		$56.46 4
14 4G435B551AA
TOE CONTROL ARM REAR SUSPENSION RH 		$720.29 2
15 4G435K978AB
Bolt, M12, Eccentric 		$45.41 2
