Front Suspension Sub System of Aston Martin Aston Martin DB9 (2004-2012)

View All

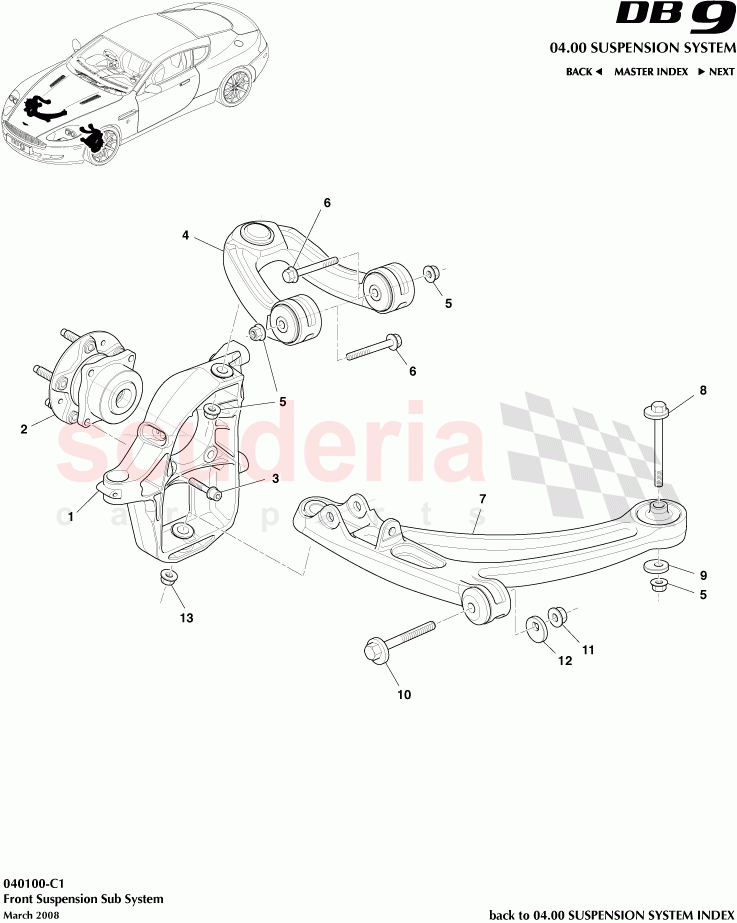

Aston Martin DB9 (2004-2012) - Front Suspension Sub System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7G433K186AB	KNUCKLE FRONT RH	Enquire	To Order
	7G433K185AB	KNUCKLE FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D333084AC	Arm Bush Front Suspension Upper RH	Enquire	IN STOCK
	8D333091AC	Arm Bush Front Suspension Upper LH	Enquire	IN STOCK
	4G433084BE	ARM BUSH FRONT SUSPENSION UPPER RH	Enquire	IN STOCK

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433A052BF	ARM & BUSHING FRONT	Enquire	IN STOCK
	4G433A053BG	ARM & BUSHING FRONT SUSPENSION LH	Enquire	IN STOCK
	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G433B236BB	Bolt M12 Eccentric Front	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433B237BB	Washer, M12, Eccentric	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433B236CB	Bolt, M14, eccentric	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	Enquire	IN STOCK
	704596	Nut, M14, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433B237CA	Washer, M14 eccentric	Enquire	IN STOCK
	1R12232726AB	CAM WASHER-FRT LCA	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	706933	Nut And Washer Set M12	Enquire	IN STOCK
	706933	Nut And Washer Set M12	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7G433K186AB	KNUCKLE FRONT RH	7G433K186AB KNUCKLE FRONT RH 12MY	-	1	Enquire
1	7G433K185AB	KNUCKLE FRONT LH	7G433K185AB KNUCKLE FRONT LH 12MY	-	1	Enquire
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT IN STOCK	4G432B663AD HUB & BEARING ASSEMBLY, FRONT 12MY IN STOCK	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5) IN STOCK	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Bearing to Knuckle IN STOCK	-	8	Enquire
4	8D333084AC	Arm Bush Front Suspension Upper RH IN STOCK	8D333084AC Arm Bush Front Suspension Upper RH 11MY (also 10.7MY with ADS) IN STOCK	-	1	Enquire
4	8D333091AC	Arm Bush Front Suspension Upper LH IN STOCK	8D333091AC Arm Bush Front Suspension Upper LH 11MY (also 10.7MY with ADS) IN STOCK	-	1	Enquire

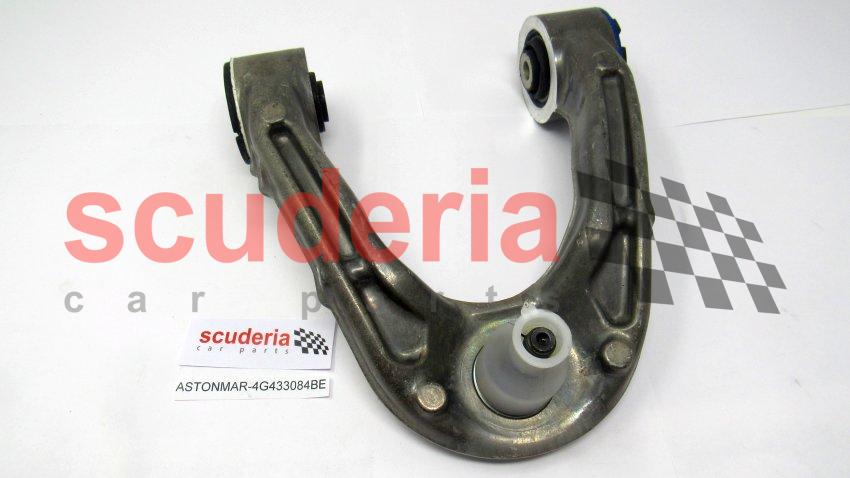

4	4G433084BE	ARM BUSH FRONT SUSPENSION UPPER RH IN STOCK	4G433084BE ARM BUSH FRONT SUSPENSION UPPER RH pre 09MY IN STOCK	-	1	Enquire

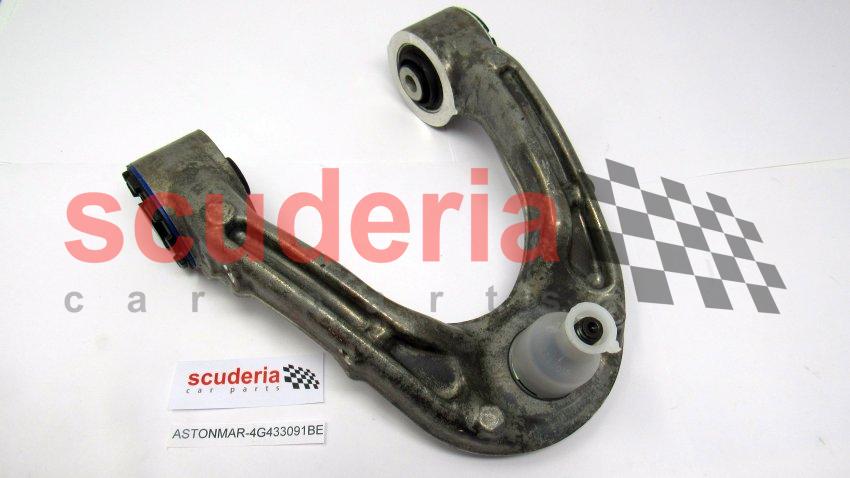

4	4G433091BE	ARM BUSH FRONT SUSPENSION UPPER LH IN STOCK	4G433091BE ARM BUSH FRONT SUSPENSION UPPER LH pre 09MY IN STOCK	-	1	Enquire
4	6G333084AB	ARM BUSH/JOINT FRONT SUSPENSION UPPER RH IN STOCK	6G333084AB ARM BUSH/JOINT FRONT SUSPENSION UPPER RH 09MY IN STOCK	-	1	Enquire
4	6G333091AB	ARM BUSH/JOINT FRONT SUSPENSION UPPER LH IN STOCK	6G333091AB ARM BUSH/JOINT FRONT SUSPENSION UPPER LH 09MY IN STOCK	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE IN STOCK	703565 NUT-M12 HEX FLANGE IN STOCK	-	8	Enquire
6	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED IN STOCK	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED IN STOCK	-	4	Enquire
7	4G433A052BF	ARM & BUSHING FRONT IN STOCK	4G433A052BF ARM & BUSHING FRONT pre 09MY IN STOCK	-	1	Enquire
7	4G433A053BG	ARM & BUSHING FRONT SUSPENSION LH IN STOCK	4G433A053BG ARM & BUSHING FRONT SUSPENSION LH pre 09MY IN STOCK	-	1	Enquire
7	8D333A052AC	ARM & BSHG ASSY FRONT SUSPENSION LOWER RH IN STOCK	8D333A052AC ARM & BSHG ASSY FRONT SUSPENSION LOWER RH 09MY IN STOCK	-	1	Enquire
7	8D333A053AC	FRONT SUSPENSION LOWER ARM LH IN STOCK	8D333A053AC FRONT SUSPENSION LOWER ARM LH 09MY IN STOCK	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front IN STOCK	4G433B236BB Bolt M12 Eccentric Front IN STOCK	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric IN STOCK	4G433B237BB Washer, M12, Eccentric IN STOCK	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric IN STOCK	4G433B236CB Bolt, M14, eccentric IN STOCK	-	2	Enquire
11	704596	Nut, M14, Hex Flange Head IN STOCK	704596 Nut, M14, Hex Flange Head IN STOCK	-	2	Enquire
11	704596	Nut, M14, Hex Flange Head IN STOCK	704596 Nut, M14, Hex Flange Head IN STOCK	-	1	Enquire
12	4G433B237CA	Washer, M14 eccentric IN STOCK	4G433B237CA Washer, M14 eccentric 08MY From (V) A09110 IN STOCK	-	2	Enquire
12	1R12232726AB	CAM WASHER-FRT LCA IN STOCK	1R12232726AB CAM WASHER-FRT LCA 07MY IN STOCK	-	2	Enquire
13	706933	Nut And Washer Set M12 IN STOCK	706933 Nut And Washer Set M12 08MY From (V) A09110 IN STOCK	-	2	Enquire
13	706933	Nut And Washer Set M12 IN STOCK	706933 Nut And Washer Set M12 07MY IN STOCK	-	2	Enquire
