Steering Column Assembly

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Steering Column Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D333C695BCW Shroud assy, steering column upper $528.34 To Order
4G433C695BCW STEERING COLUMN SHROUD UPPER $318.01 To Order
4G433F902AC Shroud assy, steering column upper Enquire To Order
Photo Part No Description Price (each) Stock
8D333K512BCW Shroud assy, steering column lower, AUTO Enquire To Order
8D333533ADW SHRD ASY STNG COL LW $740.42 To Order
4G433K512BCW STEERING COLUMN SHROUD LOWER (AUTO) $231.28 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D333E721AB Plate, steering column, load spread $10.59 To Order
4G431110307 STEERING COLUMN LOAD SPREAD PLATE $7.08 To Order
Photo Part No Description Price (each) Stock
4G433L508AA Insulation, fill plate $341.57 To Order
8D333L508CA INS NON AUTO FIL PLT $3,670.66 To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head $0.12 To Order
707158 Screw & Washer, M3.5 x 13, Flange Pan Head $1.23 IN STOCK
Photo Part No Description Price (each) Stock
4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black $0.71 IN STOCK
707263 SCREW 4.2x13 FLG T/F $4.30 To Order
Photo Part No Description Price (each) Stock
91963 STEERING COLUMN ASSY $4,943.05 To Order
91963 STEERING COLUMN ASSY $4,943.05 To Order
AD433C529AB Column Assy, Electric with Isolator $1,624.78 To Order
Photo Part No Description Price (each) Stock
4G433F818AB SNS ASY - STNG ROT $372.36 To Order
4G4314C229AA Sensor, steering angle Enquire To Order
4G4314C040AA Software, SAS Enquire To Order
Photo Part No Description Price (each) Stock
4G43ALR3219BA Bracket, Steering Angle Sensor Mounting $4.35 To Order
Photo Part No Description Price (each) Stock
4G433D677BA Gaiter, Steering Column, RHD $58.46 To Order
4G433D677AA Gaiter, Steering Column, LHD $59.67 To Order
Photo Part No Description Price (each) Stock
707158 Screw & Washer, M3.5 x 13, Flange Pan Head $1.23 IN STOCK
Photo Part No Description Price (each) Stock
91963 STEERING COLUMN ASSY $4,943.05 To Order
91963 STEERING COLUMN ASSY $4,943.05 To Order
91963 STEERING COLUMN ASSY $4,943.05 To Order
Photo Part No Description Price (each) Stock
703138PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10 $6.94 To Order
4G433C684AB Bolt, M8 x 30, Hex Head Flange, Patch $3.17 IN STOCK
703138PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10 $6.94 To Order
Photo Part No Description Price (each) Stock
702631 M8 X 25 TRIANGULAR $0.80 To Order
701351 SCREW M8x34 TRIANGULAR $0.57 To Order
Photo Part No Description Price (each) Stock
4G433N997AC Coupling, Steering Gear to Column $117.53 To Order
Photo Part No Description Price (each) Stock
701355 Screw, M10 x 21.8, Pan Head, Pilot $1.27 To Order
View All

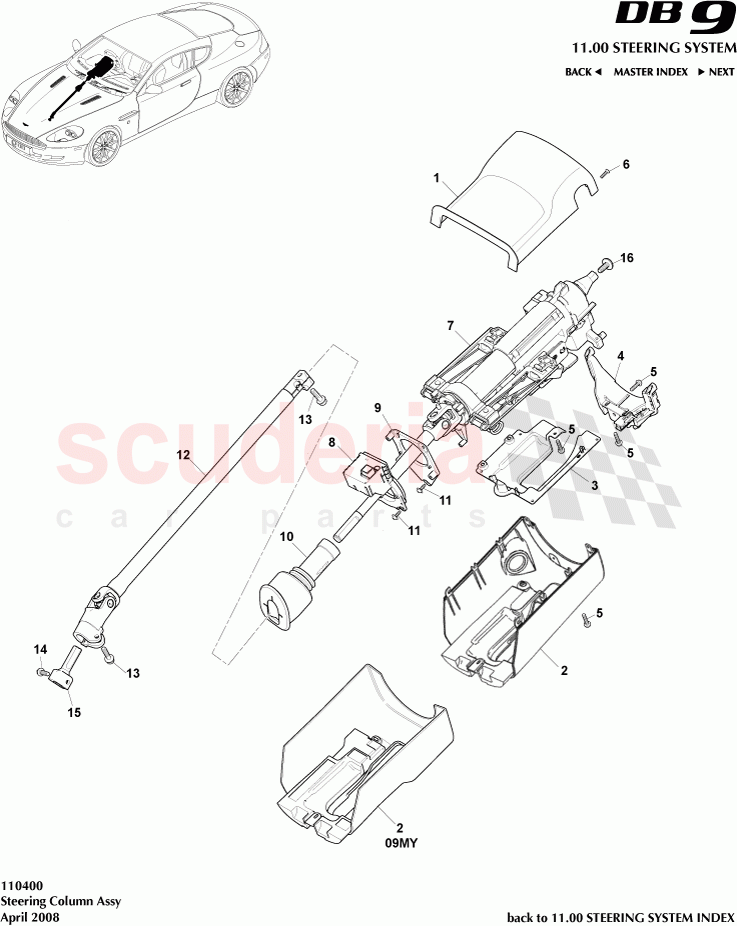

Steering Column Assembly of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D333C695BCW
Shroud assy, steering column upper
09MY 		$528.34 1
1 4G433C695BCW
STEERING COLUMN SHROUD UPPER 		$318.01 1
1 4G433F902AC
Shroud assy, steering column upper 		- 1 Enquire
2 8D333K512BCW
Shroud assy, steering column lower, AUTO
09MY, AUTO 		- 1 Enquire
2 8D333533ADW
SHRD ASY STNG COL LW
09MY, MAN 		$740.42 1
2 4G433K512BCW
STEERING COLUMN SHROUD LOWER (AUTO)
AUTO 		$231.28 1
2 4G433533BCW
STEERING COLUMN SHROUD LOWER (MAN)
MAN 		$259.16 1
2 4G433F900AC
Shroud assy, steering column lower, MAN
MAN 		- 1 Enquire
3 8D333E721AB
Plate, steering column, load spread
09MY 		$10.59 1
3 4G431110307
STEERING COLUMN LOAD SPREAD PLATE 		$7.08 1
4 4G433L508AA
Insulation, fill plate
MANUAL only 		$341.57 1
4 8D333L508CA
INS NON AUTO FIL PLT
09MY 		$3,670.66 1
5 703736
Screw Self Tapping, 4.2 x 19, Washer Head
09MY 		$0.12 8
5 707158
Screw & Washer, M3.5 x 13, Flange Pan Head
IN STOCK 		$1.23 8
6 4G43103081BA
Screw, M4 x 16, Countersunk, Stainless Black
09MY
IN STOCK 		$0.71 2
6 707263
SCREW 4.2x13 FLG T/F 		$4.30 2
7 91963
STEERING COLUMN ASSY
Up to (V) B06365 		$4,943.05 1
7 91963
STEERING COLUMN ASSY
From (V) B06366 		$4,943.05 1
7 AD433C529AB
Column Assy, Electric with Isolator
09MY 		$1,624.78 1
8 4G433F818AB
SNS ASY - STNG ROT 		$372.36 1
8 4G4314C229AA
Sensor, steering angle 		- 1 Enquire
8 4G4314C040AA
Software, SAS 		- 1 Enquire
9 4G43ALR3219BA
Bracket, Steering Angle Sensor Mounting 		$4.35 1
10 4G433D677BA
Gaiter, Steering Column, RHD
RHD 		$58.46 1
10 4G433D677AA
Gaiter, Steering Column, LHD
LHD 		$59.67 1
11 707158
Screw & Washer, M3.5 x 13, Flange Pan Head
IN STOCK 		$1.23 6
12 91963
STEERING COLUMN ASSY
Up to (V) B06365 		$4,943.05 1
12 91963
STEERING COLUMN ASSY
From (V) B06366 		$4,943.05 1
12 91963
STEERING COLUMN ASSY
09MY 		$4,943.05 1
13 703138PK
BOLT-M8x25 PATCH CHROME FREE PACK OF 10
08MY From (V) A09110 		$6.94 2
13 4G433C684AB
Bolt, M8 x 30, Hex Head Flange, Patch
09MY
IN STOCK 		$3.17 2
13 703138PK
BOLT-M8x25 PATCH CHROME FREE PACK OF 10
07MY 		$6.94 2
14 702631
M8 X 25 TRIANGULAR 		$0.80 1
14 701351
SCREW M8x34 TRIANGULAR 		$0.57 1
15 4G433N997AC
Coupling, Steering Gear to Column 		$117.53 1
16 701355
Screw, M10 x 21.8, Pan Head, Pilot 		$1.27 1
