Aston Martin DB9 (2004-2012) - Hoses and Cooler Reservoir (LHD)

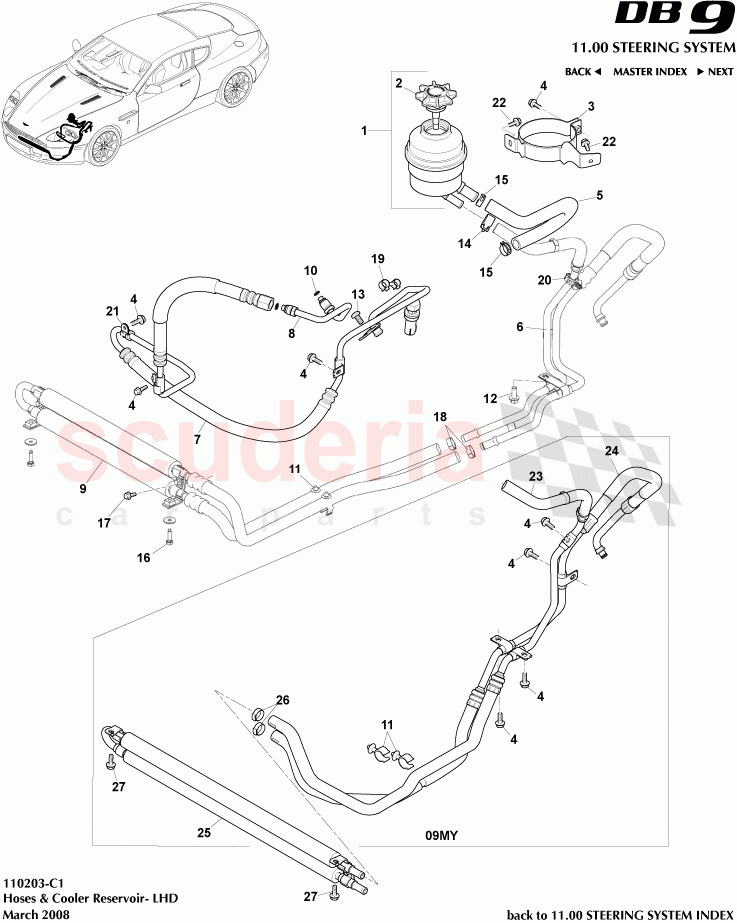

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433R700AB	Reservoir and Cap Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4334006AA	Cap assy, power steering reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433489AC	BRACKET ASSY - PAS RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433E525AA	RESERVOIR TO PUMP SUCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A713AC	ASSY TUBE PAS RETURN - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A719AE	HOSE ASSY PAS PRESSURE LINE PUMP TO GEAR LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433494AA	PUMP OUTLET TUBE - HIGH PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433D746AC	COOLING LOOP (LHD) POWER STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C727AA	HOSE CLIP (RAYMOND 81442)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701349	Clamp, Hose 20 Dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43105050AA	CLIP - DOUBLE REYMOND REF 80476	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694891	P-CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333A713AB	RETURN HOSE COOLER TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333F558AC	Hose Return Gear to Cooler LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333D746AB	COOLING LOOP POWER STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786250	Edge Protection, Switch Harness, 150mm	Enquire	To Order
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order
