Aston Martin DB9 (2004-2012) - Fuel Tank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG433411297	TNK & CNSTR ASY FUEL	Enquire	To Order
	BG433411296	F/TNK & CNSTR KT ROW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M2D28AB	FOAM PAD - TANK FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43482550AA	FOAM PAD - TANK UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43XC468090AB	FOAM PAD - TANK BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439D653AA	CARBON CANNISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C133A	Tie-wrap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A228AB	Tube, assy, fuel vap to canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314407AB	FUEL TANK HARNESS	Enquire	To Order
	4G4314407AE	FUEL TANK HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332133BA	Clamp Plate, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C055CA	COVER - FUEL TANK SERVICE	Enquire	To Order
	4G439C055AD	COVER-FUEL TANK SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439073AA	Gasket, Fuel Tank Service Cover	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4332133BA	Clamp Plate, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439074CB	PLATE ASSY FUEL TANK COVER	Enquire	To Order
	4G439074EA	PLATE ASY FU TANK CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KY539073AA	GASKET FUEL TANK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439047BB	HOS ASY FU/TNK FILL	Enquire	To Order
	4G433410332	CHECK VALVE FUEL FILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702594	CLAMP BOX15 SPRING BAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

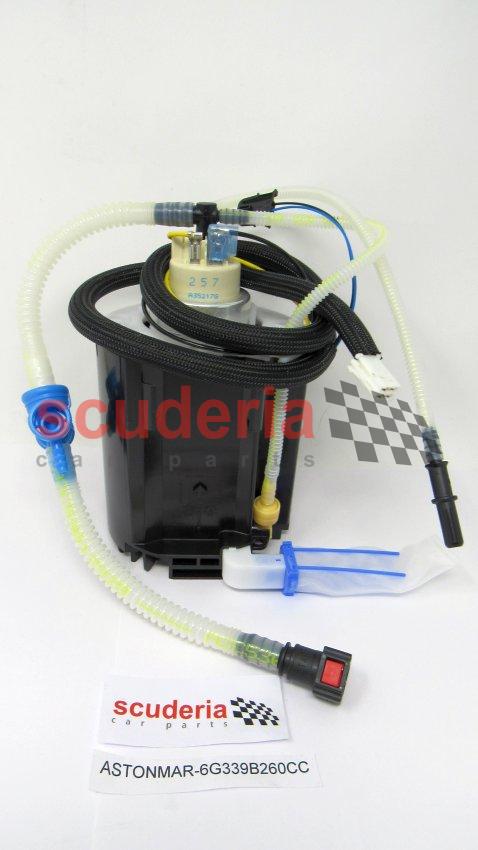

	4G439B260AC	Pump & Reservoir Assy - Fuel RHS	Enquire	To Order
	6G339B260CC	Fuel Pump and Reservoir RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339155AB	Fuel Filter RH	Enquire	To Order
	8G439155AA	Fuel Filter LH	Enquire	To Order
	92065	Fuel Filter RHS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G439180AB	BRACKET - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439180BA	BRKT FU/CONN RTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B035AB	TUBE ASSY - FUEL VAPOUR LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B260DA	JET PUMP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439E275AA	Sensor - Fuel Tank Sender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B190BA	ROLL OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434090BB	HOSE - FUEL/VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434090AB	HOSE - FUEL/VAPOUR	Enquire	To Order
	4G439009A	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B190AA	FUEL LEVEL VENT VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434090CA	HOSE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439009A	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439012A	Tie warp, fir tree	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410013	O RING	Enquire	To Order
	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	Enquire	To Order

View All

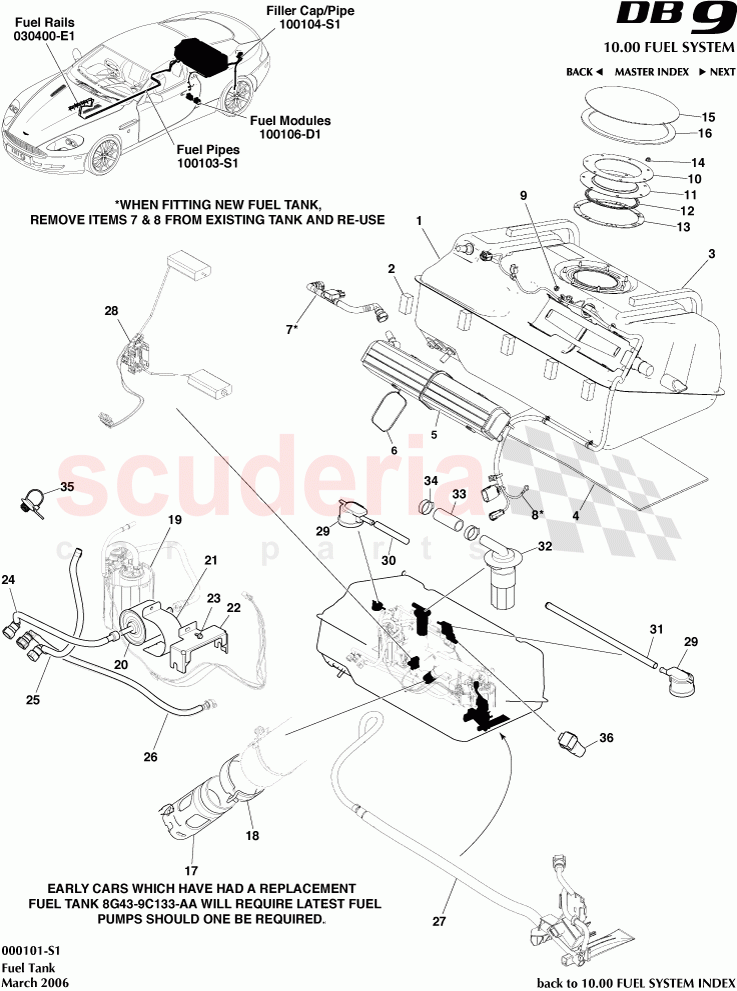

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG433411297	TNK & CNSTR ASY FUEL	BG433411297 TNK & CNSTR ASY FUEL 08MY from (V) A10560	-	1	Enquire
1	BG433411296	F/TNK & CNSTR KT ROW	BG433411296 F/TNK & CNSTR KT ROW 09MY	-	1	Enquire
2	4G43M2D28AB	FOAM PAD - TANK FRONT	4G43M2D28AB FOAM PAD - TANK FRONT	-	5	Enquire
3	4G43482550AA	FOAM PAD - TANK UPPER	4G43482550AA FOAM PAD - TANK UPPER	-	2	Enquire
4	4G43XC468090AB	FOAM PAD - TANK BASE	4G43XC468090AB FOAM PAD - TANK BASE	-	1	Enquire
5	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER	-	1	Enquire
6	4G439C133A	Tie-wrap	4G439C133A Tie-wrap Cannister Assy	-	1	Enquire
7	4G439A228AB	Tube, assy, fuel vap to canister	4G439A228AB Tube, assy, fuel vap to canister	-	1	Enquire
8	7G4314407AB	FUEL TANK HARNESS	7G4314407AB FUEL TANK HARNESS 07MY	-	1	Enquire
8	4G4314407AE	FUEL TANK HARNESS	4G4314407AE FUEL TANK HARNESS	-	1	Enquire
9	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	1	Enquire
10	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank	-	1	Enquire
11	4G439C055CA	COVER - FUEL TANK SERVICE	4G439C055CA COVER - FUEL TANK SERVICE 06MY from (V) A04019	-	1	Enquire
11	4G439C055AD	COVER-FUEL TANK SERVICE	4G439C055AD COVER-FUEL TANK SERVICE 05MY	-	1	Enquire
12	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover ARRIVING SOON	-	1	Enquire
13	4G4332133BA	Clamp Plate, Fuel Tank	4G4332133BA Clamp Plate, Fuel Tank	-	4	Enquire
14	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	8	Enquire
15	4G439074CB	PLATE ASSY FUEL TANK COVER	4G439074CB PLATE ASSY FUEL TANK COVER Includes cover plate gasket	-	1	Enquire
15	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV Includes cover plate gasket	-	1	Enquire
16	KY539073AA	GASKET FUEL TANK COVER	KY539073AA GASKET FUEL TANK COVER Part of Plate assy, Fuel Tank Cover	-	1	Enquire
17	4G439047BB	HOS ASY FU/TNK FILL	4G439047BB HOS ASY FU/TNK FILL	-	1	Enquire
17	4G433410332	CHECK VALVE FUEL FILL	4G433410332 CHECK VALVE FUEL FILL	-	1	Enquire
18	702594	CLAMP BOX15 SPRING BAND	702594 CLAMP BOX15 SPRING BAND	-	1	Enquire
19	4G439B260AC	Pump & Reservoir Assy - Fuel RHS	4G439B260AC Pump & Reservoir Assy - Fuel RHS 07MY, upto (V) 10559	-	1	Enquire
19	6G339B260CC	Fuel Pump and Reservoir RH	6G339B260CC Fuel Pump and Reservoir RH 08MY, From (V) 10560	-	1	Enquire
20	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH From (V) 10560	-	2	Enquire
20	8G439155AA	Fuel Filter LH	8G439155AA Fuel Filter LH From (V) 10560	-	2	Enquire
20	92065	Fuel Filter RHS	92065 Fuel Filter RHS	-	2	Enquire
20	92066	Fuel Filter LH	92066 Fuel Filter LH	-	2	Enquire
21	4G439180AB	BRACKET - FUEL FILTER	4G439180AB BRACKET - FUEL FILTER	-	2	Enquire
22	4G439180BA	BRKT FU/CONN RTN	4G439180BA BRKT FU/CONN RTN Up to 07MY	-	2	Enquire
23	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	2	Enquire
25	4G439B035AB	TUBE ASSY - FUEL VAPOUR LOWER	4G439B035AB TUBE ASSY - FUEL VAPOUR LOWER	-	1	Enquire
27	4G439B260DA	JET PUMP LH	4G439B260DA JET PUMP LH	-	1	Enquire
28	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender	-	1	Enquire
29	4G439B190BA	ROLL OVER VALVE	4G439B190BA ROLL OVER VALVE	-	2	Enquire
30	4G434090BB	HOSE - FUEL/VAPOUR	4G434090BB HOSE - FUEL/VAPOUR	-	1	Enquire
31	4G434090AB	HOSE - FUEL/VAPOUR	4G434090AB HOSE - FUEL/VAPOUR	-	1	Enquire
31	4G439009A	Clip, Oetiker	4G439009A Clip, Oetiker	-	4	Enquire
32	4G439B190AA	FUEL LEVEL VENT VALVE	4G439B190AA FUEL LEVEL VENT VALVE	-	1	Enquire
33	4G434090CA	HOSE - FUEL VAPOUR	4G434090CA HOSE - FUEL VAPOUR	-	1	Enquire
34	4G439009A	Clip, Oetiker	4G439009A Clip, Oetiker	-	2	Enquire
35	4G439012A	Tie warp, fir tree	4G439012A Tie warp, fir tree	-	4	Enquire
36	1R123410013	O RING	1R123410013 O RING Not illustrated	-	1	Enquire
36	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	4G433710041 ELEC CONNECTOR-6 WAY SUMITOMO less ‘O’ ring	-	4	Enquire
