Aston Martin DB9 (2004-2012) - Exhaust

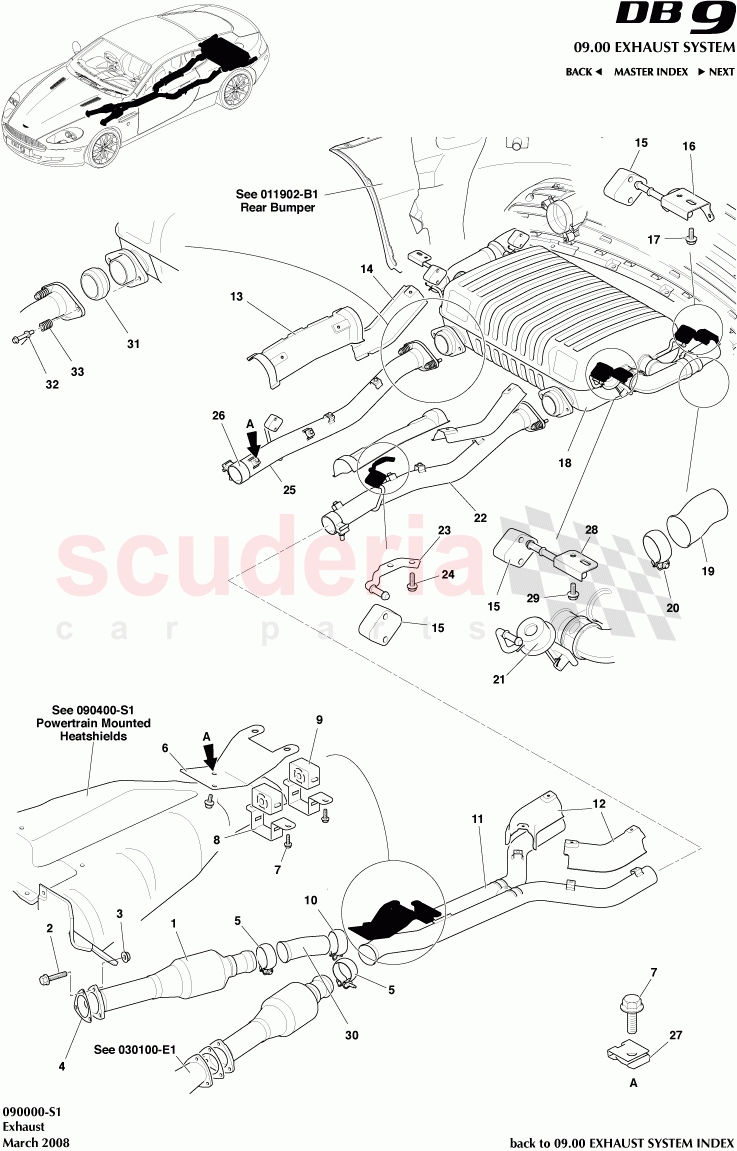

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435E211AD	Catalyst & Pipe Assembly	$1,147.98	To Order
	4G435E211AE	CATALYST & PIPE ASSY - UNDERFLOOR	$1,331.57	To Order

Photo	Part No	Description	Price (each)	Stock
	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962CD	HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	$12.57	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	$86.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	$8.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220EA	Pipe, Intermediate Exhaust Centre	$669.19	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221AA	Shield Assy, Exhaust System, Rear Front	$202.16	To Order

Photo	Part No	Description	Price (each)	Stock
	FD335G221BA	SHL ASY EXH SYS RR R	$206.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510026	Isolator, Exhaust Hanger	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201HD	Mounting Bracket, Muffler, Rear LH	$72.92	To Order
	4G435N201GD	Mounting Bracket, Muffler, Rear RH	$32.86	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435230FH	Muffler & Bypass Valve Assy	$5,704.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220CA	INTERMEDIATE PIPE - EXHAUST	$42.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435230FH	Muffler & Bypass Valve Assy	$5,704.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220BE	INTER PIPE - EXH LH	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201BC	INTERMEDIATE MOUNTING BRACKET LH MANUAL	$14.17	To Order
	4G435N201CC	INTERMEDIATE MOUNTING BRACKET RH MANUAL	$14.17	To Order
	4G435N201DC	Bracket, Exhaust Pipe Mounting, Intermediate LH	$13.91	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AE	INT PIPE - EXHAUST	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435N201FC	Mounting Bracket, Muffler, Front LH	$18.65	To Order
	4G435N201AC	Mounting Bracket, Muffler, Front RH	$18.65	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220FA	Pipe, Exhaust Intermediate Stub	$43.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	$59.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	$16.26	To Order

View All

Exhaust of Aston Martin Aston Martin DB9 (2004-2012)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly 09MY	$1,147.98	2
	1	4G435E211AE	CATALYST & PIPE ASSY - UNDERFLOOR	4G435E211AE CATALYST & PIPE ASSY - UNDERFLOOR	$1,331.57	2
	2	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	6
	3	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	6
	4	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	4G435E281AA EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	2
	5	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
	6	4G433962CD	HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	4G433962CD HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	$12.57	1
	7	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 08MY From (V) A09110	$0.75	4
	7	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 07MY	$0.75	4
	8	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	$86.84	2
	9	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	$8.43	2
	10	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
	11	CG435220EA	Pipe, Intermediate Exhaust Centre	CG435220EA Pipe, Intermediate Exhaust Centre	$669.19	1
	12	AD435G221AA	Shield Assy, Exhaust System, Rear Front	AD435G221AA Shield Assy, Exhaust System, Rear Front	$202.16	1
	13	FD335G221BA	SHL ASY EXH SYS RR R	FD335G221BA SHL ASY EXH SYS RR R	$206.37	2
	14	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR	$210.95	2
	15	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger	$68.98	6
	16	4G435N201HD	Mounting Bracket, Muffler, Rear LH	4G435N201HD Mounting Bracket, Muffler, Rear LH	$72.92	1
	16	4G435N201GD	Mounting Bracket, Muffler, Rear RH	4G435N201GD Mounting Bracket, Muffler, Rear RH	$32.86	1
	17	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	$0.29	8
	17	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 07MY	$0.29	8
	18	4G435230FH	Muffler & Bypass Valve Assy	4G435230FH Muffler & Bypass Valve Assy	$5,704.08	1
	19	4G435220CA	INTERMEDIATE PIPE - EXHAUST	4G435220CA INTERMEDIATE PIPE - EXHAUST	$42.27	2
	20	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
	21	4G435230FH	Muffler & Bypass Valve Assy	4G435230FH Muffler & Bypass Valve Assy	$5,704.08	2
	22	4G435220BE	INTER PIPE - EXH LH	4G435220BE INTER PIPE - EXH LH	$585.13	1
	23	4G435N201BC	INTERMEDIATE MOUNTING BRACKET LH MANUAL	4G435N201BC INTERMEDIATE MOUNTING BRACKET LH MANUAL Manual	$14.17	1
	23	4G435N201CC	INTERMEDIATE MOUNTING BRACKET RH MANUAL	4G435N201CC INTERMEDIATE MOUNTING BRACKET RH MANUAL Manual	$14.17	1
	23	4G435N201DC	Bracket, Exhaust Pipe Mounting, Intermediate LH	4G435N201DC Bracket, Exhaust Pipe Mounting, Intermediate LH Auto	$13.91	1
	23	4G435N201EC	Bracket, Exhaust Pipe Mounting, Intermediate RH	4G435N201EC Bracket, Exhaust Pipe Mounting, Intermediate RH Auto	$13.91	1
	24	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	$0.29	4
	24	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 07MY	$0.29	4
	25	4G435220AE	INT PIPE - EXHAUST	4G435220AE INT PIPE - EXHAUST	$585.13	1
	26	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
	27	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	$3.05	24
	28	4G435N201FC	Mounting Bracket, Muffler, Front LH	4G435N201FC Mounting Bracket, Muffler, Front LH	$18.65	1
	28	4G435N201AC	Mounting Bracket, Muffler, Front RH	4G435N201AC Mounting Bracket, Muffler, Front RH	$18.65	1
	29	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	$0.29	4
	29	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 07MY	$0.29	4
	30	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub	$43.36	1
	31	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust	$59.78	2
	32	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head	$4.64	4
	33	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange	$16.26	4
