Power Steering of Aston Martin Aston Martin DB7 Vantage

View All

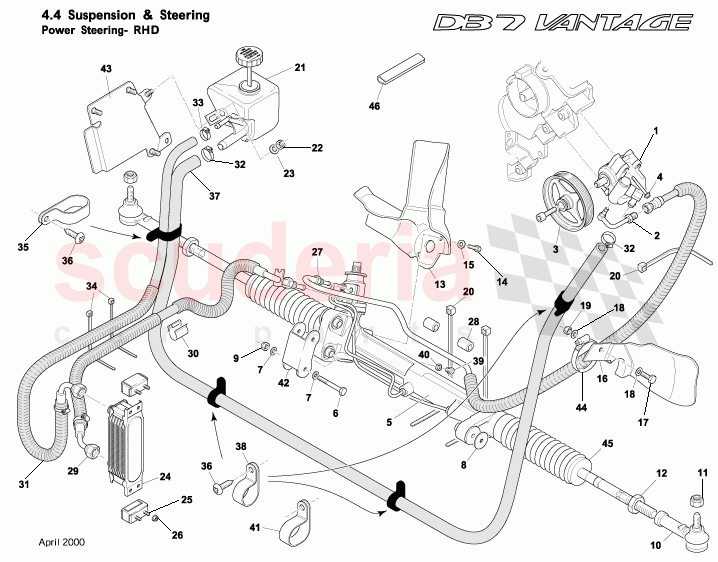

Aston Martin DB7 Vantage - Power Steering

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2485417	POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	24121497AA	OUTLET ADAPTOR - PAS PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2485419	Pulley, power steering pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699131	BOLT M8 x 70 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	24123664AA	ASSY RACK & MTGS RHD	Enquire	To Order
	91777	ASSY RACK & MTGS LHD	Enquire	To Order
	24123664AA	ASSY RACK & MTGS RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697244	BOLT 5/16 UNF x2.5/8 HEX HEAD S	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697126	WASHER 5/16 PLAIN ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481038	WASHER-0.359 ID x 1.44 OD x 0.315 thk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697128	NUT 5/16 UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481734	S/RACK TRACK ROD END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701062	NUT M12-1.5 NYLOC ZP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481735	S/RACK TRACK ROD NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86120772AB	HEATSHIELD-STEERING RACK RHD	Enquire	To Order
	86120773AB	Heatshield- Steering Rack	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86122212AB	H/SHIELD GAITOR STRG RACK RHD ASSY	Enquire	To Order
	86122213AB	Heatshield- Gaiter Steering Rack Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692089	SCREW M8 x 16 HEX HD GRD 8 8 ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692135	NUT M8 HEX SLK GRD 8 ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3386540	ASSY - PAS RESERVOIR	Enquire	To Order
	33124714AA	ASSY SUPPORT BRACKET PAS RESERVOIR	Enquire	To Order
	33124713AA	CLAMP BRACKET PAS RESERVOIR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	44121325AA	OIL COOLER - PAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4481588	MTG BRKT-OIL COOLER	Enquire	To Order
	4481589	MOUNTING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697121	NUT/WASHER ASSY-M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33125120AA	ASSY HOSE HIGH PRESSURE PUMP TO RACk RHD	Enquire	To Order

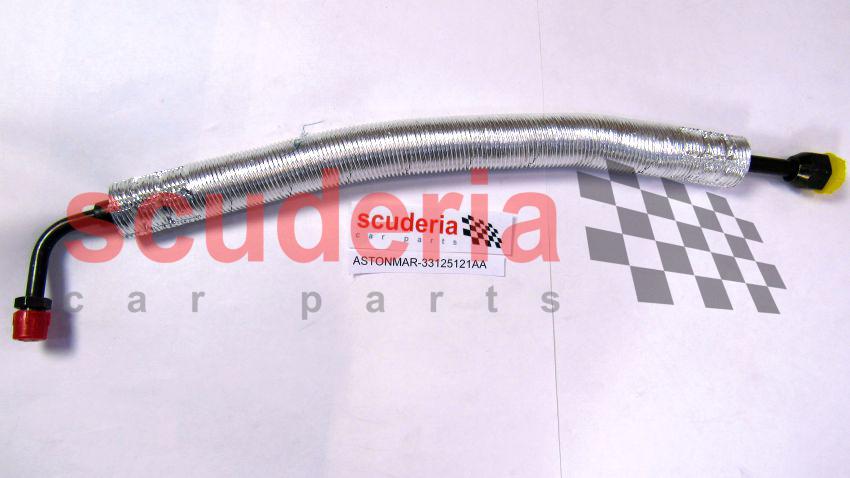

	33125121AA	High Pressure Hose Pump To Rack LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4283510	RUBBER SLEEVE- AUTO TRANS.PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120744AB	ASSY HOSE LOW PRESSURE RHD	Enquire	To Order

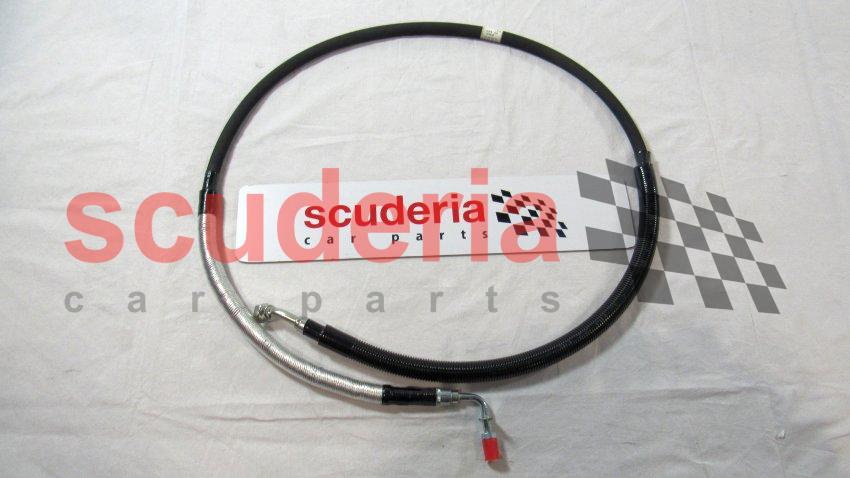

	33120745AC	Low Pressure Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699327	CLIP-HOSE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

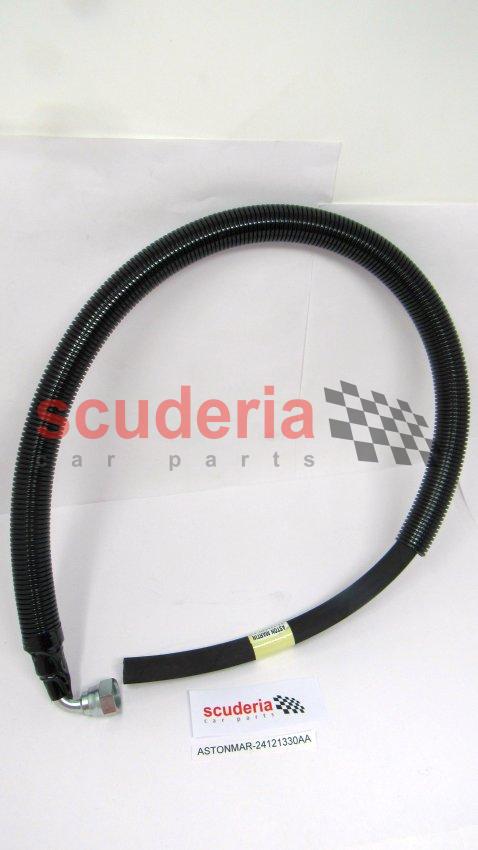

	24121330AA	Low Pressure Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114679	HOSE-CLIP S/STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

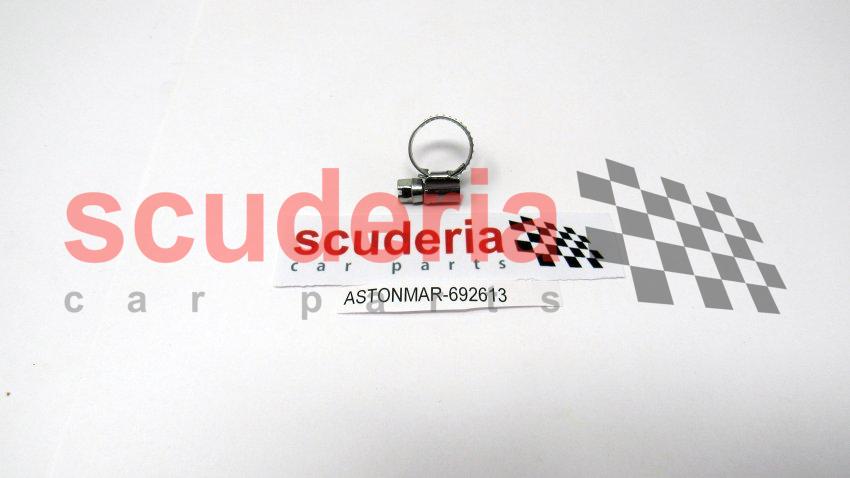

	692613	Hose-Clip 10-16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697274PK	TIE STRAP(PK OF 100)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698944	CLIP DOUBLE PIPE 24 DIA + 16 DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697615	SCREW 5/16 UNF x1/2 HEX AB ST	Enquire	To Order
	697615	SCREW 5/16 UNF x1/2 HEX AB ST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

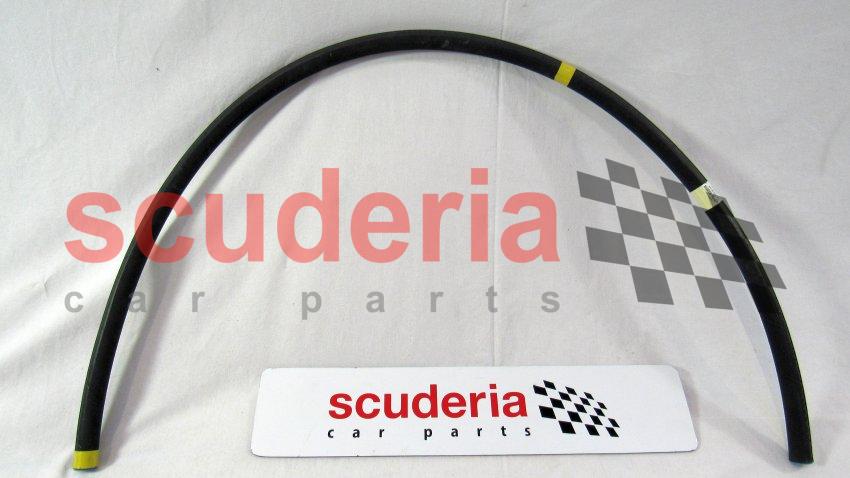

	33120746AB	Hose Low Pressure reservoir	Enquire	To Order
	33123061AB	CONDUIT-FLEXIBLE BLACK 25mm	Enquire	To Order
	3790075	Cable Tie, 290mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698943	CLIP PIPE 25 DIA	Enquire	To Order
	698943	CLIP PIPE 25 DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697242	SCREW M8 x 10 HEX RECESS CAP HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481033	WASHER SPECIAL- ALUMINIUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2485217	PIPE CLIP-DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481035	ASSY-STIFFENER-RHD WELDED	Enquire	To Order
	2481036	ASSY-STIFFENER-LHD WELDED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	Enquire	To Order
	699327	CLIP-HOSE SUPPORT	Enquire	To Order
	697122	NUT M6 NYLOC	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	24123052AA	Clip, worm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2481733	STRG RACK GAITER & CLIP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23125070AA	STEERING RACK SPACER	Enquire	To Order
	3481380	EDGE FINISHER- DRAFLEX STRIP	Enquire	To Order
	2481732	COLLAR-STEERING RACK MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	2485417	POWER STEERING PUMP	2485417 POWER STEERING PUMP	-	1	Enquire
1	2485417	POWER STEERING PUMP	2485417 POWER STEERING PUMP	-	1	Enquire
2	24121497AA	OUTLET ADAPTOR - PAS PUMP	24121497AA OUTLET ADAPTOR - PAS PUMP	-	1	Enquire
3	2485419	Pulley, power steering pump	2485419 Pulley, power steering pump	-	1	Enquire
4	699131	BOLT M8 x 70 x 1.25	699131 BOLT M8 x 70 x 1.25 P/S Pump to Cylinder block	-	4	Enquire
5	24123664AA	ASSY RACK & MTGS RHD	24123664AA ASSY RACK & MTGS RHD RHD Up to (V) 300555	-	1	Enquire
5	91777	ASSY RACK & MTGS LHD	91777 ASSY RACK & MTGS LHD LHD Up to (V) 300555	-	1	Enquire
5	24123664AA	ASSY RACK & MTGS RHD	24123664AA ASSY RACK & MTGS RHD RHD From (V) 300556	-	1	Enquire
5	91777	ASSY RACK & MTGS LHD	91777 ASSY RACK & MTGS LHD LHD From (V) 300556	-	1	Enquire
6	697244	BOLT 5/16 UNF x2.5/8 HEX HEAD S	697244 BOLT 5/16 UNF x2.5/8 HEX HEAD S	-	3	Enquire
7	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED	-	6	Enquire
8	2481038	WASHER-0.359 ID x 1.44 OD x 0.315 thk	2481038 WASHER-0.359 ID x 1.44 OD x 0.315 thk	-	3	Enquire
9	697128	NUT 5/16 UNF NYLOC THIN	697128 NUT 5/16 UNF NYLOC THIN	-	3	Enquire
10	2481734	S/RACK TRACK ROD END	2481734 S/RACK TRACK ROD END	-	2	Enquire
11	701062	NUT M12-1.5 NYLOC ZP	701062 NUT M12-1.5 NYLOC ZP	-	2	Enquire
12	2481735	S/RACK TRACK ROD NUT	2481735 S/RACK TRACK ROD NUT	-	2	Enquire
13	86120772AB	HEATSHIELD-STEERING RACK RHD	86120772AB HEATSHIELD-STEERING RACK RHD RHD	-	1	Enquire
13	86120773AB	Heatshield- Steering Rack	86120773AB Heatshield- Steering Rack LHD	-	1	Enquire
14	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	697133 SCREW M8 x 20 HEX HEAD GRD 8.8	-	2	Enquire
15	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	-	2	Enquire
16	86122212AB	H/SHIELD GAITOR STRG RACK RHD ASSY	86122212AB H/SHIELD GAITOR STRG RACK RHD ASSY RHD	-	1	Enquire
16	86122213AB	Heatshield- Gaiter Steering Rack Assy	86122213AB Heatshield- Gaiter Steering Rack Assy LHD	-	1	Enquire
17	692089	SCREW M8 x 16 HEX HD GRD 8 8 ZINC PLT	692089 SCREW M8 x 16 HEX HD GRD 8 8 ZINC PLT	-	1	Enquire
18	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	-	2	Enquire
19	692135	NUT M8 HEX SLK GRD 8 ZINC PLT	692135 NUT M8 HEX SLK GRD 8 ZINC PLT	-	1	Enquire
20	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	3	Enquire
21	3386540	ASSY - PAS RESERVOIR	3386540 ASSY - PAS RESERVOIR From (V) 402725	-	1	Enquire
21	33124714AA	ASSY SUPPORT BRACKET PAS RESERVOIR	33124714AA ASSY SUPPORT BRACKET PAS RESERVOIR From (V) 402725	-	1	Enquire
21	33124713AA	CLAMP BRACKET PAS RESERVOIR	33124713AA CLAMP BRACKET PAS RESERVOIR From (V) 402725	-	1	Enquire
21	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD From (V) 402725	-	2	Enquire
21	3385920	PAS RESERVOIR KIT DB7 VANTAGE	3385920 PAS RESERVOIR KIT DB7 VANTAGE	-	1	Enquire
22	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	-	2	Enquire
23	697286	Washer M6 Large OD	697286 Washer M6 Large OD	-	2	Enquire
24	44121325AA	OIL COOLER - PAS	44121325AA OIL COOLER - PAS	-	2	Enquire
25	4481588	MTG BRKT-OIL COOLER	4481588 MTG BRKT-OIL COOLER	-	2	Enquire
25	4481589	MOUNTING RUBBER	4481589 MOUNTING RUBBER	-	2	Enquire
26	697121	NUT/WASHER ASSY-M6	697121 NUT/WASHER ASSY-M6	-	4	Enquire
27	33125120AA	ASSY HOSE HIGH PRESSURE PUMP TO RACk RHD	33125120AA ASSY HOSE HIGH PRESSURE PUMP TO RACk RHD RHD- P/S Pump to Strg Rack	-	1	Enquire
27	33125121AA	High Pressure Hose Pump To Rack LHD	33125121AA High Pressure Hose Pump To Rack LHD LHD- P/S Pump to Strg Rack	-	1	Enquire
28	4283510	RUBBER SLEEVE- AUTO TRANS.PIPES	4283510 RUBBER SLEEVE- AUTO TRANS.PIPES RHD Only	-	1	Enquire
29	33120744AB	ASSY HOSE LOW PRESSURE RHD	33120744AB ASSY HOSE LOW PRESSURE RHD RHD- Strg Rack to Oil Cooler	-	1	Enquire
29	33120745AC	Low Pressure Hose	33120745AC Low Pressure Hose LHD- Strg Rack to Oil Cooler	-	1	Enquire
30	699327	CLIP-HOSE SUPPORT	699327 CLIP-HOSE SUPPORT RHD Only	-	1	Enquire
31	24121330AA	Low Pressure Hose	24121330AA Low Pressure Hose Oil Cooler to Reservoir	-	1	Enquire
32	114679	HOSE-CLIP S/STEEL	114679 HOSE-CLIP S/STEEL	-	2	Enquire
33	692613	Hose-Clip 10-16mm	692613 Hose-Clip 10-16mm	-	1	Enquire
34	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100)	-	2	Enquire
35	698944	CLIP DOUBLE PIPE 24 DIA + 16 DIA	698944 CLIP DOUBLE PIPE 24 DIA + 16 DIA	-	1	Enquire
36	697615	SCREW 5/16 UNF x1/2 HEX AB ST	697615 SCREW 5/16 UNF x1/2 HEX AB ST RHD	-	2	Enquire
36	697615	SCREW 5/16 UNF x1/2 HEX AB ST	697615 SCREW 5/16 UNF x1/2 HEX AB ST LHD	-	4	Enquire
37	33120746AB	Hose Low Pressure reservoir	33120746AB Hose Low Pressure reservoir Reservoir to Pump	-	1	Enquire
37	33123061AB	CONDUIT-FLEXIBLE BLACK 25mm	33123061AB CONDUIT-FLEXIBLE BLACK 25mm Reservoir to Pump	-	2	Enquire
37	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Reservoir to Pump	-	2	Enquire
38	698943	CLIP PIPE 25 DIA	698943 CLIP PIPE 25 DIA LHD	-	1	Enquire
38	698943	CLIP PIPE 25 DIA	698943 CLIP PIPE 25 DIA RHD	-	3	Enquire
39	697242	SCREW M8 x 10 HEX RECESS CAP HEAD	697242 SCREW M8 x 10 HEX RECESS CAP HEAD	-	1	Enquire
40	2481033	WASHER SPECIAL- ALUMINIUM	2481033 WASHER SPECIAL- ALUMINIUM	-	1	Enquire
41	2485217	PIPE CLIP-DOUBLE	2485217 PIPE CLIP-DOUBLE LHD Only	-	2	Enquire
42	2481035	ASSY-STIFFENER-RHD WELDED	2481035 ASSY-STIFFENER-RHD WELDED RHD	-	1	Enquire
42	2481036	ASSY-STIFFENER-LHD WELDED	2481036 ASSY-STIFFENER-LHD WELDED LHD	-	1	Enquire
43	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 RHD	-	1	Enquire
43	699327	CLIP-HOSE SUPPORT	699327 CLIP-HOSE SUPPORT RHD	-	1	Enquire
43	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC RHD	-	1	Enquire
43	33120741AE	ASSY BRACKET MTG MISFIRE MODULE RH	33120741AE ASSY BRACKET MTG MISFIRE MODULE RH	-	1	Enquire
44	24123052AA	Clip, worm	24123052AA Clip, worm	-	1	Enquire
45	2481733	STRG RACK GAITER & CLIP KIT	2481733 STRG RACK GAITER & CLIP KIT	-	1	Enquire
46	23125070AA	STEERING RACK SPACER	23125070AA STEERING RACK SPACER Optional, standard on GT	-	2	Enquire
46	3481380	EDGE FINISHER- DRAFLEX STRIP	3481380 EDGE FINISHER- DRAFLEX STRIP Located on Engine Mnts	-	2	Enquire
46	2481732	COLLAR-STEERING RACK MOUNTING	2481732 COLLAR-STEERING RACK MOUNTING	-	2	Enquire
