Front Suspension of Aston Martin Aston Martin DB7 Vantage

View All

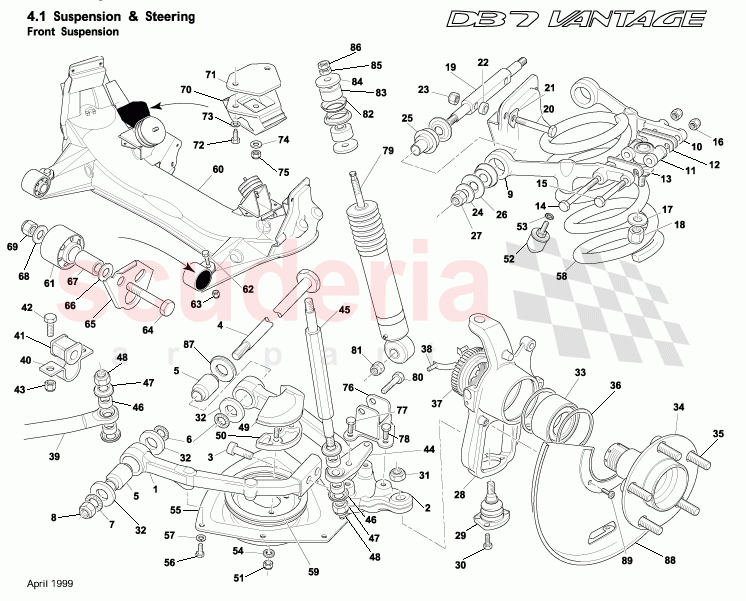

Aston Martin DB7 Vantage - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	23121817AC	ASSY LWR W/BONE ARM FRONT LH	Enquire	To Order
	23121818AC	ASSY LWR WISHBONE ARM REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23121819AC	ASSY LWR WISHBONE ARM REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23122430AB	SCREW SPECIAL - CAP HD M14 X 35 PATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23122937AA	SHAFT FULCRUM LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

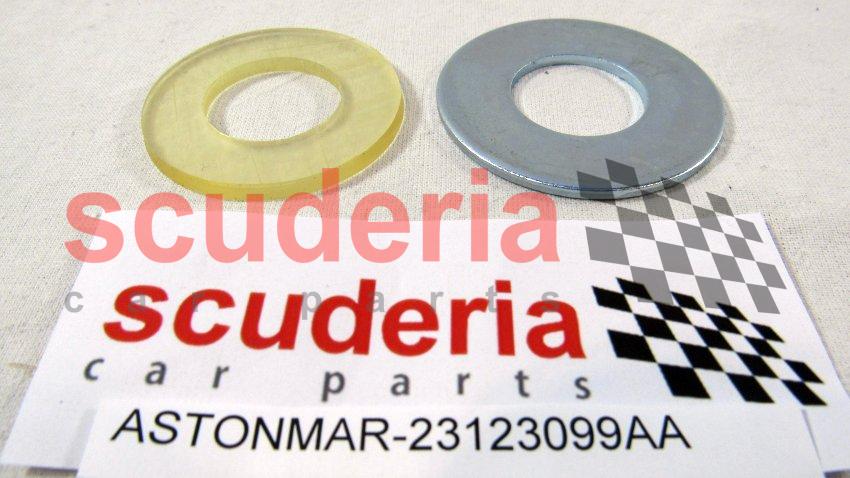

	23123099AA	Steel & Plastic Washer	Enquire	To Order

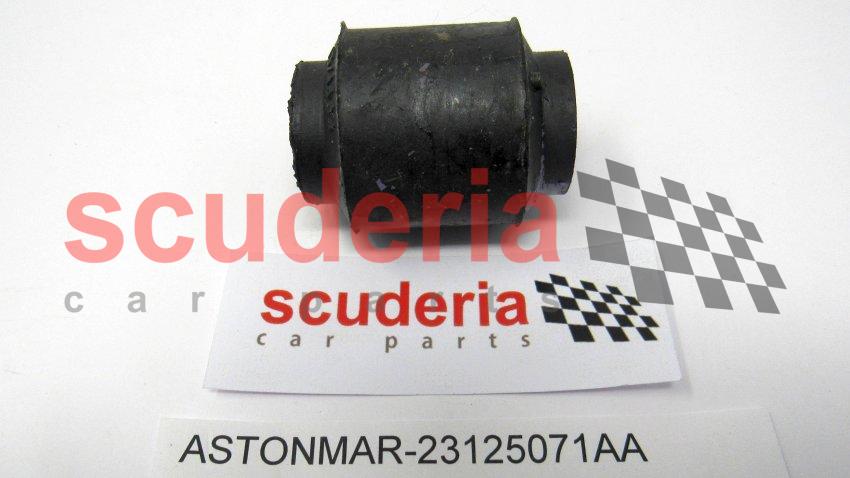

	23125071AA	LOWER WISHBONE BUSH FRONT/REAR GT	Enquire	To Order

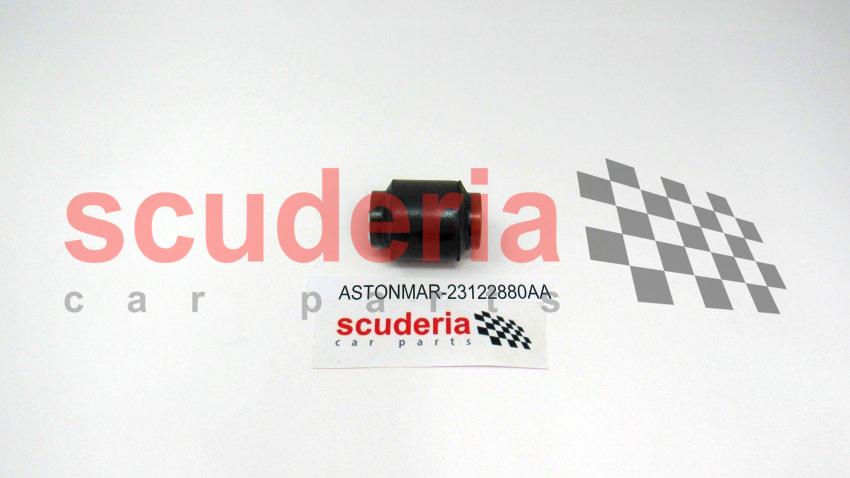

	23122880AA	Lower Wishbone Bush	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

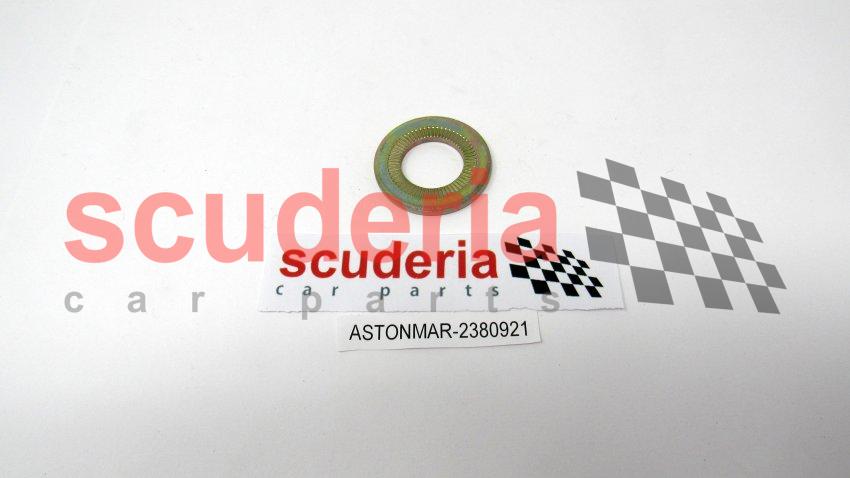

	2380921	Washer Rad.Knurl 13/16in ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380922	WASHER RAD KNURL 19/32 ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2310678	SHIM-FRT UPPR W/BONE TO UPRIGHT	Enquire	To Order

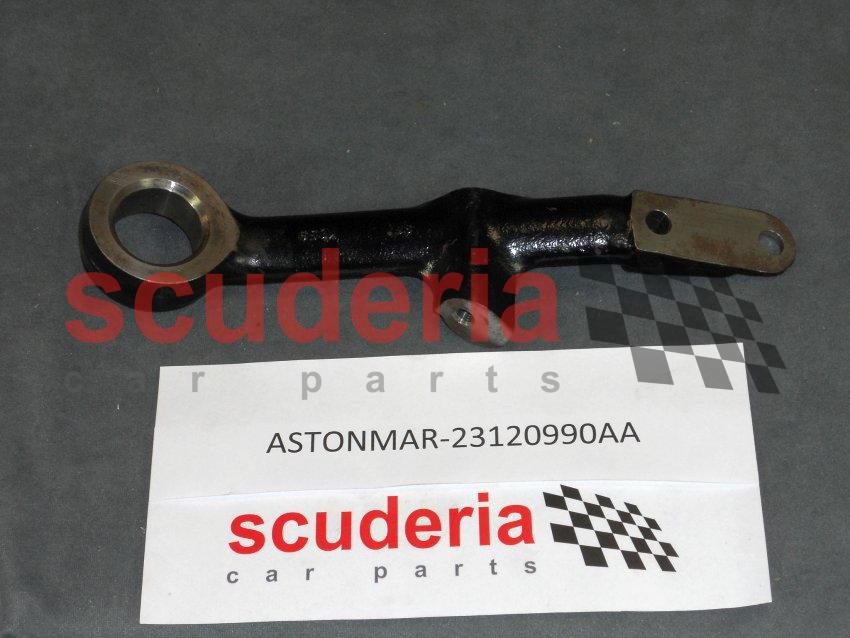

	23120990AA	Upper Wishbone Arm Front RH	Enquire	To Order
	2384887PK	NUT-LOCKING(PK OF 2)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

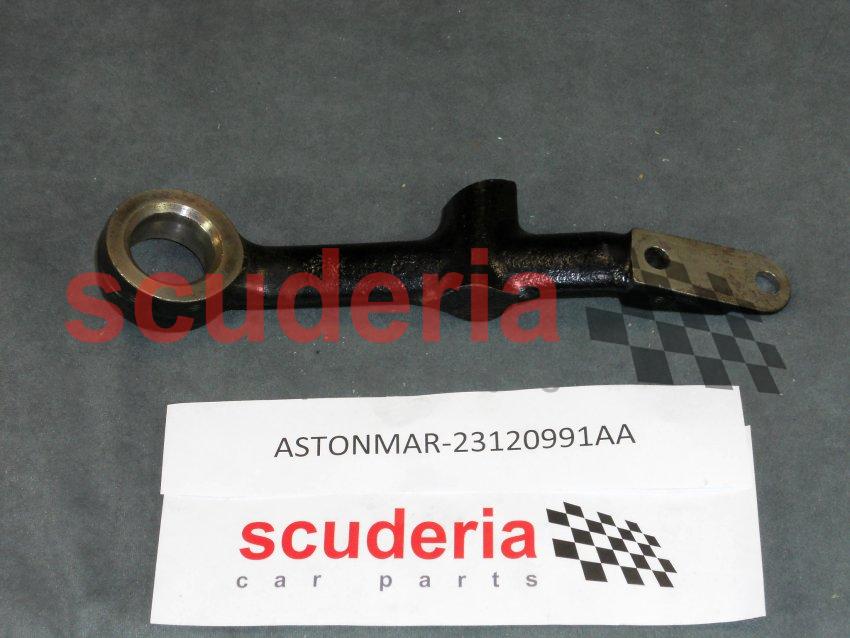

	23120991AA	Upper Wishbone Arm Front LH	Enquire	To Order
	23120992AA	UPPER WISHBONE ARM REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23120993AA	UPPER WISHBONE ARM REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2326003	UPPER BALL JOINT ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2310678	SHIM-FRT UPPR W/BONE TO UPRIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385640	SHIM	Enquire	To Order
	2380934	PLATE SPACING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	520622	BOLT 3/8 UNF x 2 3/4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	520622	BOLT 3/8 UNF x 2 3/4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697215	WASHER 1/2in PLAIN ZINC PL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	690156	NUT 1/2 UNF SLK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380925	SHAFT-UPPER FULCRUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	520720	BOLT 7/16 UNF x2 1/2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380905	WASHER 1/2in ID IFS PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23123432AA	SHIM CAMBER 1.0 THK	Enquire	To Order
	23123433AA	SHIM CAMBER 1.5 THK	Enquire	To Order
	23123434AA	SHIM CAMBER 2.0 THK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697221PK	NUT-7/16UNF NYLOC(5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703129	Washer Large OD M12 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	950230113PK	BUSH SLIPFLEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	950230112	WASHER - UPPER W/BNE BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	24125390AA	Vertical link assy complete, RH, GT	Enquire	To Order
	24125389AA	Vertical link assy complete, LH, GT	Enquire	To Order
	24120984AB	LINK VERTICAL RH	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	24120985AB	LINK VERTICAL LH	Enquire	To Order
	24120984AC	LINK VERTICAL RH	Enquire	To Order
	24120985AC	LINK VERTICAL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385655	LOWER BALL JOINT ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380918	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697266	NUT 9/16in UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23122972AA	Washer 5mm Thick Polyurethane	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385194	WHEEL BEARING ASSY	Enquire	To Order
	2385795	ASSY-FT HUB & BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385795	ASSY-FT HUB & BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2684984	WHEEL BOLT 1/2 UNF x 3/4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697787	CIRCLIP-INTERNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385197	ROTOR-ABS/HUB NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2385798	PIN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380970	ANTI-ROLL BAR	Enquire	To Order
	2383454	ANTI ROLL BAR-FRONT	Enquire	To Order
	2356684	A/ROLL BAR MNTG BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2356684	A/ROLL BAR MNTG BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380257	BUSH ANTI ROLL BAR	Enquire	To Order
	2383455	Bush - Anti Roll Bar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697233	SCREW 3/8 HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23122186AA	ANTI ROLL BAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380971	LINK - ANTI ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380258	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380972	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	Enquire	To Order
	697789	Grease, white	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2383415	BUMPSTOP-FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23125074AA	SPACER BUMPSTOP - GT	Enquire	To Order
	2383416	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697128	NUT 5/16 UNF NYLOC THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380903	METALASTIC REBOUND BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697226	WASHER 5/16inS/PROOF EXT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697227	WASHER 5/16inS/PROOF INTERNAL BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380906	ASSY - SPRING PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699086	SCREW 3/8 UNF x3/4in HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	690368	WASHER 3/8 x.694 SPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23140189AA	FRONT SPRING - ZAGATO	Enquire	To Order
	23122208BC	FRONT SPRING - CONV	Enquire	To Order
	23122210AC	FRONT SPRING - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2390061	SPRING PACKING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91835	ASSY-CROSSBEAM W/ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2383944	BUSH FRONT MOUNTING IFS	Enquire	To Order
	2380973	BUSH	Enquire	To Order
	23125127AA	FRONT SIX SHOOTER BUSH SNUBBER WASHER - GT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697231	SCREW 1/2 UNFx 1.1/4 HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	690156	NUT 1/2 UNF SLK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380974	BRACKET-FRONT TIE DOWN-RH	Enquire	To Order
	23124283AB	BOLT 3/4UNFx167 LONG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380975	BRACKET-FRONT TIE DOWN-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380904	DISC TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697229	WASHER 3/4 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700316	NUT 3/4in UNF NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380965	Mounting-Rear Vee Front Suspension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380963	SPACER- FRONT SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2381724	SCREW-SPECIAL DOG POINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	690368	WASHER 3/8 x.694 SPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380901	WASHER 15/32 ID x 3/8 OD x 8 SWG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23121628AB	ASSY BRACKET DAMPER MOUNTING LOWER	Enquire	To Order
	697220	NUT 3/8in UNF NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23121629AB	ASSY BRACKET DAMPER MOUNTING LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697790	LOCKING BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23121005AA	Bolt, damper bracket outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23123658AA	Shock Absorber Front	Enquire	To Order
	23122829AA	Gaiter, front damper	Enquire	To Order
	23123658AA	Shock Absorber Front	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	696104	BOLT M14 X 2 X 80MM HEX HD GRADE 8.8 ZINC CLEAR PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692094	NUT M14 NYLOC TYPE P BRIGHT ZINC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23125338AA	CUP WASHER - GT	Enquire	To Order
	2380984	CUP WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23125194AA	KIT-ISOLATOR - GT	Enquire	To Order
	23125194AA	KIT-ISOLATOR - GT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23125195AA	WASHER - FRONT DAMPER MOUNTING - GT	Enquire	To Order
	23125382AA	CONICAL WASHER	Enquire	To Order
	2380986	WASHER -FRONT DAMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2380987	NUT-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697219PK	NUT-5/16 UNF HEX(10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28123564AA	Disc shield, RH	Enquire	To Order
	23123099AA	Steel & Plastic Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2886058	Disc protection cover, front	Enquire	To Order
	28123565AA	Disc shield, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699087	SCREW TORX PAN HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	23120950BE	Front suspension assy, complete RHD Volante	23120950BE Front suspension assy, complete RHD Volante From (V) 300556 Up to (V) 300831	-	1	Enquire
-	23120951BE	ASSY FRT SUSPENSION COMPLETE CONV LHD	23120951BE ASSY FRT SUSPENSION COMPLETE CONV LHD From (V) 300556 Up to (V) 300831	-	1	Enquire
-	23120950BF	ASSY FRT SUSPENSION COMPLETE CONV RHD	23120950BF ASSY FRT SUSPENSION COMPLETE CONV RHD From (V) 300832 Up to (V) 301543	-	1	Enquire
-	23120951BF	ASSY FRT SUSPENSION COMPLETE CONV LHD	23120951BF ASSY FRT SUSPENSION COMPLETE CONV LHD From (V) 300832 Up to (V) 301543	-	1	Enquire
-	23120950BG	ASSY FRT SUSPENSION COMPLETE CONV RHD	23120950BG ASSY FRT SUSPENSION COMPLETE CONV RHD From (V) 301544 Up to (V) 301457	-	1	Enquire
-	23120951BG	ASSY FRT SUSPENSION COMPLETE CONV LHD	23120951BG ASSY FRT SUSPENSION COMPLETE CONV LHD From (V) 301544 Up to (V) 301457	-	1	Enquire
-	23120950BH	ASSY FRT SUSPENSION COMPLETE CONV RHD	23120950BH ASSY FRT SUSPENSION COMPLETE CONV RHD From (V) 301458 Up to (V) 402884	-	1	Enquire
-	23120951BH	ASSY FRT SUSPENSION COMPLETE CONV LHD	23120951BH ASSY FRT SUSPENSION COMPLETE CONV LHD From (V) 301458 Up to (V) 402884	-	1	Enquire
-	23120948AH	Front suspension assy, complete RHD Coupe	23120948AH Front suspension assy, complete RHD Coupe From (V) 300556 Up to (V) 300831	-	1	Enquire
-	23120949AE	ASSY FRT SUSPENSION COMPLETE COUPE LHD	23120949AE ASSY FRT SUSPENSION COMPLETE COUPE LHD From (V) 300556 Up to (V) 300831	-	1	Enquire
-	23120948AH	Front suspension assy, complete RHD Coupe	23120948AH Front suspension assy, complete RHD Coupe From (V) 300832 Up to (V) 301543	-	1	Enquire
-	23120949AF	ASSY FRT SUSPENSION COMPLETE COUPE LHD	23120949AF ASSY FRT SUSPENSION COMPLETE COUPE LHD From (V) 300832 Up to (V) 301543	-	1	Enquire
-	23120948AH	Front suspension assy, complete RHD Coupe	23120948AH Front suspension assy, complete RHD Coupe From (V) 301544 Up to (V) 301457	-	1	Enquire
-	23120949AG	ASSY FRT SUSPENSION COMPLETE COUPE LHD	23120949AG ASSY FRT SUSPENSION COMPLETE COUPE LHD From (V) 301544 Up to (V) 301457	-	1	Enquire
-	23120948AH	Front suspension assy, complete RHD Coupe	23120948AH Front suspension assy, complete RHD Coupe From (V) 301458 Up to (V) 402884	-	1	Enquire
-	23120949AH	ASSY FRT SUSPENSION COMPLETE COUPE LHD	23120949AH ASSY FRT SUSPENSION COMPLETE COUPE LHD From (V) 301458 Up to (V) 402884	-	1	Enquire
-	23120950BD	ASSY -FRT SUSPENSION COMPLETE CONV RHD	23120950BD ASSY -FRT SUSPENSION COMPLETE CONV RHD Up to (V) 300555	-	1	Enquire
-	23120951BD	ASSY-FRT SUSPENSION COMPLETE CONV LHD	23120951BD ASSY-FRT SUSPENSION COMPLETE CONV LHD Up to (V) 300555	-	1	Enquire
-	23120948AH	Front suspension assy, complete RHD Coupe	23120948AH Front suspension assy, complete RHD Coupe Up to (V) 300555	-	1	Enquire
-	23120949AD	ASSY FRT SUSPENSION COMPLETE COUPE LHD	23120949AD ASSY FRT SUSPENSION COMPLETE COUPE LHD Up to (V) 300555	-	1	Enquire
-	23120950BI	ASSY FRT SUSPENSION COMPLETE CONV RHD	23120950BI ASSY FRT SUSPENSION COMPLETE CONV RHD From (V) 402885	-	1	Enquire
-	23120951BI	Front suspension assy, complete LHD Volante	23120951BI Front suspension assy, complete LHD Volante From (V) 402885	-	1	Enquire
-	23120948AI	Front suspension assy, complete RHD Coupe	23120948AI Front suspension assy, complete RHD Coupe From (V) 402885	-	1	Enquire
-	23120949AI	Front suspension assy, complete LHD Coupe	23120949AI Front suspension assy, complete LHD Coupe From (V) 402885	-	1	Enquire
-	23125392BA	Front suspension assy, complete RHD Volante GT	23125392BA Front suspension assy, complete RHD Volante GT	-	1	Enquire
-	23125393BA	Front suspension assy, complete LHD Volante GT	23125393BA Front suspension assy, complete LHD Volante GT	-	1	Enquire
-	23125028AA	Front suspension assy, complete RHD Coupe GT	23125028AA Front suspension assy, complete RHD Coupe GT	-	1	Enquire
-	23125029AA	Front suspension assy, complete LHD Coupe GT	23125029AA Front suspension assy, complete LHD Coupe GT	-	1	Enquire
-	23140198AA	Front suspension assy, complete RHD Zagato	23140198AA Front suspension assy, complete RHD Zagato	-	1	Enquire
-	23140199AA	Front suspension assy, complete LHD Zagato	23140199AA Front suspension assy, complete LHD Zagato	-	1	Enquire
-	23150052AA	ASSY FRT SUSPENSION COMPLETE RHD	23150052AA ASSY FRT SUSPENSION COMPLETE RHD	-	1	Enquire
-	23150053AA	Front suspension assy, complete LHD DBAR1	23150053AA Front suspension assy, complete LHD DBAR1	-	1	Enquire
-	23125094AA	ASSY LOWER WISHBONE ARM - FRONT RH - GT	23125094AA ASSY LOWER WISHBONE ARM - FRONT RH - GT	-	1	Enquire
-	23125095AA	ASSY LOWER WISHBONE ARM FRONT LH - GT	23125095AA ASSY LOWER WISHBONE ARM FRONT LH - GT	-	1	Enquire
-	23125096AA	ASSY LOWER WISHBONE ARM REAR RH - GT	23125096AA ASSY LOWER WISHBONE ARM REAR RH - GT	-	1	Enquire
-	23125097AA	ASSY LOWER WISHBONE ARM REAR LH - GT	23125097AA ASSY LOWER WISHBONE ARM REAR LH - GT	-	1	Enquire
-	23121816AC	ASSY LWR WISHBONE ARM FRONT RH	23121816AC ASSY LWR WISHBONE ARM FRONT RH	-	1	Enquire
-	23121817AC	ASSY LWR W/BONE ARM FRONT LH	23121817AC ASSY LWR W/BONE ARM FRONT LH	-	1	Enquire
-	23121818AC	ASSY LWR WISHBONE ARM REAR RH	23121818AC ASSY LWR WISHBONE ARM REAR RH	-	1	Enquire
-	23121819AC	ASSY LWR WISHBONE ARM REAR LH	23121819AC ASSY LWR WISHBONE ARM REAR LH	-	1	Enquire
1	23121817AC	ASSY LWR W/BONE ARM FRONT LH	23121817AC ASSY LWR W/BONE ARM FRONT LH	-	1	Enquire
1	23121818AC	ASSY LWR WISHBONE ARM REAR RH	23121818AC ASSY LWR WISHBONE ARM REAR RH	-	1	Enquire
2	23121819AC	ASSY LWR WISHBONE ARM REAR LH	23121819AC ASSY LWR WISHBONE ARM REAR LH	-	1	Enquire
3	23122430AB	SCREW SPECIAL - CAP HD M14 X 35 PATCH	23122430AB SCREW SPECIAL - CAP HD M14 X 35 PATCH	-	4	Enquire
4	23122937AA	SHAFT FULCRUM LOWER	23122937AA SHAFT FULCRUM LOWER	-	2	Enquire
5	23123099AA	Steel & Plastic Washer	23123099AA Steel & Plastic Washer	-	2	Enquire
5	23125071AA	LOWER WISHBONE BUSH FRONT/REAR GT	23125071AA LOWER WISHBONE BUSH FRONT/REAR GT	-	4	Enquire
5	23122880AA	Lower Wishbone Bush	23122880AA Lower Wishbone Bush	-	4	Enquire
5	23122972AA	Washer 5mm Thick Polyurethane	23122972AA Washer 5mm Thick Polyurethane	-	6	Enquire
5	699439	Red rubber grease	699439 Red rubber grease	-	-	Enquire
6	2380921	Washer Rad.Knurl 13/16in ID	2380921 Washer Rad.Knurl 13/16in ID	-	4	Enquire
7	2380922	WASHER RAD KNURL 19/32 ID	2380922 WASHER RAD KNURL 19/32 ID	-	2	Enquire
8	2310678	SHIM-FRT UPPR W/BONE TO UPRIGHT	2310678 SHIM-FRT UPPR W/BONE TO UPRIGHT	-	1	Enquire
8	23120990AA	Upper Wishbone Arm Front RH	23120990AA Upper Wishbone Arm Front RH	-	1	Enquire
8	2384887PK	NUT-LOCKING(PK OF 2)	2384887PK NUT-LOCKING(PK OF 2)	-	2	Enquire
8	45123460AA	Ruglyde rubber lubricant	45123460AA Ruglyde rubber lubricant	-	-	Enquire
9	23120991AA	Upper Wishbone Arm Front LH	23120991AA Upper Wishbone Arm Front LH	-	1	Enquire
9	23120992AA	UPPER WISHBONE ARM REAR RH	23120992AA UPPER WISHBONE ARM REAR RH	-	1	Enquire
10	23120993AA	UPPER WISHBONE ARM REAR LH	23120993AA UPPER WISHBONE ARM REAR LH	-	1	Enquire
11	2326003	UPPER BALL JOINT ASY	2326003 UPPER BALL JOINT ASY	-	2	Enquire
12	2310678	SHIM-FRT UPPR W/BONE TO UPRIGHT	2310678 SHIM-FRT UPPR W/BONE TO UPRIGHT	-	6	Enquire
13	2385640	SHIM	2385640 SHIM	-	2	Enquire
13	2380934	PLATE SPACING	2380934 PLATE SPACING	-	6	Enquire
14	520622	BOLT 3/8 UNF x 2 3/4	520622 BOLT 3/8 UNF x 2 3/4	-	2	Enquire
15	520622	BOLT 3/8 UNF x 2 3/4	520622 BOLT 3/8 UNF x 2 3/4	-	2	Enquire
16	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	697144PK NUT 3/8 UNF NYLOC (PACK OF 10)	-	4	Enquire
17	697215	WASHER 1/2in PLAIN ZINC PL	697215 WASHER 1/2in PLAIN ZINC PL	-	2	Enquire
18	690156	NUT 1/2 UNF SLK HEX	690156 NUT 1/2 UNF SLK HEX	-	2	Enquire
19	2380925	SHAFT-UPPER FULCRUM	2380925 SHAFT-UPPER FULCRUM	-	2	Enquire
20	520720	BOLT 7/16 UNF x2 1/2	520720 BOLT 7/16 UNF x2 1/2	-	4	Enquire
21	2380905	WASHER 1/2in ID IFS PILLAR	2380905 WASHER 1/2in ID IFS PILLAR	-	4	Enquire
22	23123432AA	SHIM CAMBER 1.0 THK	23123432AA SHIM CAMBER 1.0 THK Use selectively	-	4	Enquire
22	23123433AA	SHIM CAMBER 1.5 THK	23123433AA SHIM CAMBER 1.5 THK Use selectively	-	4	Enquire
22	23123434AA	SHIM CAMBER 2.0 THK	23123434AA SHIM CAMBER 2.0 THK Use selectively	-	4	Enquire
22	2380901	WASHER 15/32 ID x 3/8 OD x 8 SWG	2380901 WASHER 15/32 ID x 3/8 OD x 8 SWG	-	-	Enquire
23	697221PK	NUT-7/16UNF NYLOC(5)	697221PK NUT-7/16UNF NYLOC(5)	-	4	Enquire
24	703129	Washer Large OD M12 Chrome Free	703129 Washer Large OD M12 Chrome Free	-	4	Enquire
25	950230113PK	BUSH SLIPFLEX	950230113PK BUSH SLIPFLEX	-	4	Enquire
26	950230112	WASHER - UPPER W/BNE BUSH	950230112 WASHER - UPPER W/BNE BUSH	-	4	Enquire
27	24125390AA	Vertical link assy complete, RH, GT	24125390AA Vertical link assy complete, RH, GT Optional, standard on GT	-	1	Enquire
27	24125389AA	Vertical link assy complete, LH, GT	24125389AA Vertical link assy complete, LH, GT Optional, standard on GT	-	1	Enquire
27	24120984AB	LINK VERTICAL RH	24120984AB LINK VERTICAL RH Up to (V) 402884	-	1	Enquire
27	24121028AC	ASSY VERTICAL LINK COMPLETE RH	24121028AC ASSY VERTICAL LINK COMPLETE RH Up to (V) 402884	-	1	Enquire
27	24121029AC	ASSY VERTICAL LINK COMPLETE LH	24121029AC ASSY VERTICAL LINK COMPLETE LH Up to (V) 402884	-	1	Enquire
27	24121028AD	Vertical link assy complete, RH	24121028AD Vertical link assy complete, RH From (V) 402885	-	1	Enquire
27	24121029AD	Vertical link assy complete, LH	24121029AD Vertical link assy complete, LH From (V) 402885	-	1	Enquire
27	690156	NUT 1/2 UNF SLK HEX	690156 NUT 1/2 UNF SLK HEX	-	4	Enquire
28	24120985AB	LINK VERTICAL LH	24120985AB LINK VERTICAL LH Up to (V) 402884	-	1	Enquire
28	24120984AC	LINK VERTICAL RH	24120984AC LINK VERTICAL RH From (V) 402885	-	1	Enquire
28	24120985AC	LINK VERTICAL LH	24120985AC LINK VERTICAL LH From (V) 402885	-	1	Enquire
29	2385655	LOWER BALL JOINT ASY	2385655 LOWER BALL JOINT ASY	-	2	Enquire
30	2380918	BOLT	2380918 BOLT	-	8	Enquire
31	697266	NUT 9/16in UNF NYLOC THIN	697266 NUT 9/16in UNF NYLOC THIN	-	2	Enquire
32	23122972AA	Washer 5mm Thick Polyurethane	23122972AA Washer 5mm Thick Polyurethane	-	6	Enquire
33	2385194	WHEEL BEARING ASSY	2385194 WHEEL BEARING ASSY	-	2	Enquire
33	2385795	ASSY-FT HUB & BOLTS	2385795 ASSY-FT HUB & BOLTS	-	2	Enquire
34	2385795	ASSY-FT HUB & BOLTS	2385795 ASSY-FT HUB & BOLTS	-	2	Enquire
35	2684984	WHEEL BOLT 1/2 UNF x 3/4	2684984 WHEEL BOLT 1/2 UNF x 3/4	-	10	Enquire
36	697787	CIRCLIP-INTERNAL	697787 CIRCLIP-INTERNAL	-	4	Enquire
37	2385197	ROTOR-ABS/HUB NUT	2385197 ROTOR-ABS/HUB NUT	-	2	Enquire
38	2385798	PIN SPRING	2385798 PIN SPRING	-	2	Enquire
39	2380970	ANTI-ROLL BAR	2380970 ANTI-ROLL BAR Volante	-	1	Enquire
39	2383454	ANTI ROLL BAR-FRONT	2383454 ANTI ROLL BAR-FRONT Coupe	-	1	Enquire
39	2356684	A/ROLL BAR MNTG BRKT	2356684 A/ROLL BAR MNTG BRKT	-	1	Enquire
40	2356684	A/ROLL BAR MNTG BRKT	2356684 A/ROLL BAR MNTG BRKT	-	1	Enquire
41	2380257	BUSH ANTI ROLL BAR	2380257 BUSH ANTI ROLL BAR Volante	-	2	Enquire
41	2383455	Bush - Anti Roll Bar	2383455 Bush - Anti Roll Bar Coupe	-	2	Enquire
42	697233	SCREW 3/8 HEX HEAD	697233 SCREW 3/8 HEX HEAD	-	4	Enquire
43	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	697144PK NUT 3/8 UNF NYLOC (PACK OF 10)	-	4	Enquire
44	23122186AA	ANTI ROLL BAR BRACKET	23122186AA ANTI ROLL BAR BRACKET	-	2	Enquire
45	2380971	LINK - ANTI ROLL BAR	2380971 LINK - ANTI ROLL BAR	-	2	Enquire
46	2380258	BUSH	2380258 BUSH	-	8	Enquire
47	2380972	WASHER	2380972 WASHER	-	8	Enquire
48	697144PK	NUT 3/8 UNF NYLOC (PACK OF 10)	697144PK NUT 3/8 UNF NYLOC (PACK OF 10)	-	4	Enquire
48	697789	Grease, white	697789 Grease, white	-	-	Enquire
49	2383415	BUMPSTOP-FRONT	2383415 BUMPSTOP-FRONT	-	2	Enquire
50	23125074AA	SPACER BUMPSTOP - GT	23125074AA SPACER BUMPSTOP - GT GT	-	2	Enquire
50	2383416	SPACER	2383416 SPACER	-	2	Enquire
51	697128	NUT 5/16 UNF NYLOC THIN	697128 NUT 5/16 UNF NYLOC THIN	-	4	Enquire
52	2380903	METALASTIC REBOUND BUSH	2380903 METALASTIC REBOUND BUSH	-	4	Enquire
53	697226	WASHER 5/16inS/PROOF EXT	697226 WASHER 5/16inS/PROOF EXT	-	8	Enquire
54	697227	WASHER 5/16inS/PROOF INTERNAL BLACK	697227 WASHER 5/16inS/PROOF INTERNAL BLACK	-	4	Enquire
55	2380906	ASSY - SPRING PAN	2380906 ASSY - SPRING PAN	-	2	Enquire
56	699086	SCREW 3/8 UNF x3/4in HEX HEAD	699086 SCREW 3/8 UNF x3/4in HEX HEAD	-	12	Enquire
57	690368	WASHER 3/8 x.694 SPR	690368 WASHER 3/8 x.694 SPR	-	8	Enquire
58	23140189AA	FRONT SPRING - ZAGATO	23140189AA FRONT SPRING - ZAGATO Zagato/DBAR1	-	2	Enquire
58	23122208BC	FRONT SPRING - CONV	23122208BC FRONT SPRING - CONV Volante	-	2	Enquire
58	23122210AC	FRONT SPRING - COUPE	23122210AC FRONT SPRING - COUPE Coupe	-	2	Enquire
59	2390061	SPRING PACKING RING	2390061 SPRING PACKING RING	-	6	Enquire
60	91835	ASSY-CROSSBEAM W/ASY	91835 ASSY-CROSSBEAM W/ASY	-	1	Enquire
61	2383944	BUSH FRONT MOUNTING IFS	2383944 BUSH FRONT MOUNTING IFS Volante	-	2	Enquire
61	2380973	BUSH	2380973 BUSH Coupe	-	2	Enquire
61	23125127AA	FRONT SIX SHOOTER BUSH SNUBBER WASHER - GT	23125127AA FRONT SIX SHOOTER BUSH SNUBBER WASHER - GT GT	-	2	Enquire
61	23125069AA	FRONT SIX SHOOTER BUSH SNUBBER - GT	23125069AA FRONT SIX SHOOTER BUSH SNUBBER - GT GT	-	2	Enquire
62	697231	SCREW 1/2 UNFx 1.1/4 HEX HEAD	697231 SCREW 1/2 UNFx 1.1/4 HEX HEAD	-	2	Enquire
63	690156	NUT 1/2 UNF SLK HEX	690156 NUT 1/2 UNF SLK HEX	-	2	Enquire
64	2380974	BRACKET-FRONT TIE DOWN-RH	2380974 BRACKET-FRONT TIE DOWN-RH	-	1	Enquire
64	23124283AB	BOLT 3/4UNFx167 LONG	23124283AB BOLT 3/4UNFx167 LONG	-	2	Enquire
65	2380975	BRACKET-FRONT TIE DOWN-LH	2380975 BRACKET-FRONT TIE DOWN-LH	-	2	Enquire
66	2380944	WASHER	2380944 WASHER	-	2	Enquire
67	2380904	DISC TUBE	2380904 DISC TUBE	-	2	Enquire
68	697229	WASHER 3/4 PLAIN FORM A	697229 WASHER 3/4 PLAIN FORM A	-	2	Enquire
69	700316	NUT 3/4in UNF NYLOC	700316 NUT 3/4in UNF NYLOC	-	2	Enquire
70	2380965	Mounting-Rear Vee Front Suspension	2380965 Mounting-Rear Vee Front Suspension	-	2	Enquire
71	2380963	SPACER- FRONT SUBFRAME	2380963 SPACER- FRONT SUBFRAME	-	2	Enquire
72	2381724	SCREW-SPECIAL DOG POINT	2381724 SCREW-SPECIAL DOG POINT	-	4	Enquire
73	690368	WASHER 3/8 x.694 SPR	690368 WASHER 3/8 x.694 SPR	-	4	Enquire
74	2380901	WASHER 15/32 ID x 3/8 OD x 8 SWG	2380901 WASHER 15/32 ID x 3/8 OD x 8 SWG	-	2	Enquire
75	23121628AB	ASSY BRACKET DAMPER MOUNTING LOWER	23121628AB ASSY BRACKET DAMPER MOUNTING LOWER	-	1	Enquire
75	697220	NUT 3/8in UNF NYLOC	697220 NUT 3/8in UNF NYLOC	-	2	Enquire
76	23121629AB	ASSY BRACKET DAMPER MOUNTING LOWER	23121629AB ASSY BRACKET DAMPER MOUNTING LOWER	-	1	Enquire
77	697790	LOCKING BOLT	697790 LOCKING BOLT	-	4	Enquire
78	23121005AA	Bolt, damper bracket outer	23121005AA Bolt, damper bracket outer	-	2	Enquire
79	23123658AA	Shock Absorber Front	23123658AA Shock Absorber Front Up to (V) 300555	-	2	Enquire
79	23122829AA	Gaiter, front damper	23122829AA Gaiter, front damper GT/Zagato/DBAR1	-	2	Enquire
79	23123658AA	Shock Absorber Front	23123658AA Shock Absorber Front From (V) 300556	-	2	Enquire
79	23140187AA	Damper assy, front	23140187AA Damper assy, front Zagato/DBAR1	-	2	Enquire
79	23125031AB	ASSEMBLY DAMPER FRONT GT	23125031AB ASSEMBLY DAMPER FRONT GT GT	-	2	Enquire
80	696104	BOLT M14 X 2 X 80MM HEX HD GRADE 8.8 ZINC CLEAR PASS	696104 BOLT M14 X 2 X 80MM HEX HD GRADE 8.8 ZINC CLEAR PASS	-	2	Enquire
81	692094	NUT M14 NYLOC TYPE P BRIGHT ZINC	692094 NUT M14 NYLOC TYPE P BRIGHT ZINC	-	2	Enquire
82	23125338AA	CUP WASHER - GT	23125338AA CUP WASHER - GT GT/Zagato/DBAR1	-	2	Enquire
82	2380984	CUP WASHER	2380984 CUP WASHER	-	2	Enquire
83	23125194AA	KIT-ISOLATOR - GT	23125194AA KIT-ISOLATOR - GT GT/Zagato/DBAR1	-	2	Enquire
83	23125194AA	KIT-ISOLATOR - GT	23125194AA KIT-ISOLATOR - GT	-	2	Enquire
84	23125195AA	WASHER - FRONT DAMPER MOUNTING - GT	23125195AA WASHER - FRONT DAMPER MOUNTING - GT GT/Zagato/DBAR1	-	2	Enquire
84	23125382AA	CONICAL WASHER	23125382AA CONICAL WASHER GT/Zagato	-	2	Enquire
84	2380986	WASHER -FRONT DAMPER MOUNTING	2380986 WASHER -FRONT DAMPER MOUNTING	-	2	Enquire
85	2380987	NUT-LOCKING	2380987 NUT-LOCKING	-	2	Enquire
86	697219PK	NUT-5/16 UNF HEX(10)	697219PK NUT-5/16 UNF HEX(10)	-	2	Enquire
87	28123564AA	Disc shield, RH	28123564AA Disc shield, RH Not GT	-	1	Enquire
87	23123099AA	Steel & Plastic Washer	23123099AA Steel & Plastic Washer	-	2	Enquire
88	2886058	Disc protection cover, front	2886058 Disc protection cover, front Optional, standard on GT	-	2	Enquire
88	28123565AA	Disc shield, LH	28123565AA Disc shield, LH Not GT	-	1	Enquire
89	699087	SCREW TORX PAN HEAD	699087 SCREW TORX PAN HEAD	-	4	Enquire

Haven't found what you're looking for?

More: Aston Martin Suspension Tuning Parts Need help? Call us

View Cart / Checkout
