Instruments and Controls of Aston Martin Aston Martin DB7 (1997)

View All

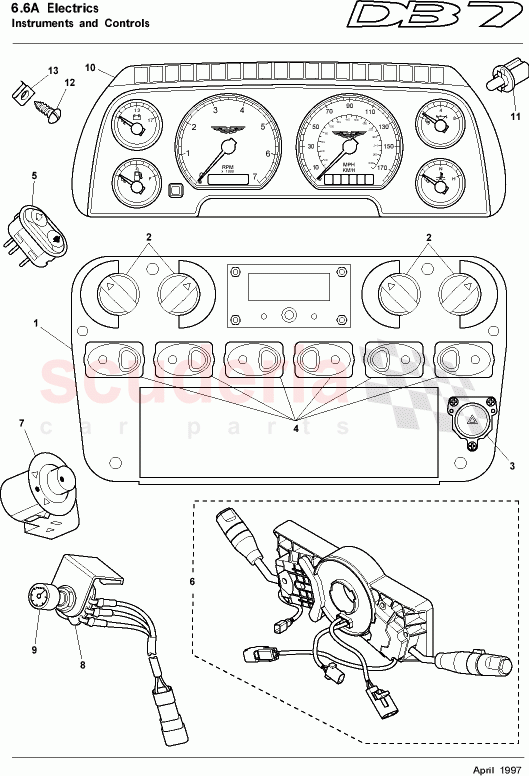

Aston Martin DB7 (1997) - Instruments and Controls

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37111675BA	A/C panel, non fog/hfs, Dunhill convertible	Enquire	To Order
	37111674AA	A/C panel, non fog/hfs, Dunhill convertible	Enquire	To Order
	83111740BA	A/C PANEL - NON FOG/ HFS - CANADA - MAN CONV (DUNHILL)	$1,509.09	To Order

...and 34 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3785227	HAZARD SWITCH	$113.57	To Order
	3786295	HAZARD SWITCH ASSY	$88.29	To Order

Photo	Part No	Description	Price (each)	Stock
	3781832	SWITCH ASSY - HEATED REAR WINDOW	$73.94	To Order
	3781829	SWITCH ASSY INTERIOR LIGHT	$71.76	To Order
	3784177	SWITCH ASSY - MAP LIGHT	$89.16	To Order

Photo	Part No	Description	Price (each)	Stock
	3750326	SWITCH ROCKER	$138.53	To Order

Photo	Part No	Description	Price (each)	Stock
	3783433	Clock A/C panel	Enquire	To Order
	91358	Clock A/C panel	$308.12	To Order
	37124358AA	ASSY-COLUMN SW/GEAR	$1,049.53	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3790390M	INST PAK-FED MPH MPS	$4,113.74	To Order

Photo	Part No	Description	Price (each)	Stock
	697621	SPRING NUT	$0.48	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3784405	Panel, veneered - A/C	3784405 Panel, veneered - A/C Without front fog lamps	-	1	Enquire
-	37111766AAM	INST PAK-FED MPH MPS	37111766AAM INST PAK-FED MPH MPS USA only Dunhill cars	-	1	Enquire
-	37111765AAM	INST PACK-UK MPH MPS	37111765AAM INST PACK-UK MPH MPS Not USA Dunhill cars	$9,777.44	1
-	3784404	Panel, veneered - A/C	3784404 Panel, veneered - A/C With front fog lamps	-	1	Enquire
-	3784783	WINDOW LIFT SWITCH	3784783 WINDOW LIFT SWITCH From (V) 101621	$175.31	2
-	3784176	SWITCH ASSY - HOOD DOWN	3784176 SWITCH ASSY - HOOD DOWN Volante only	$78.45	1
-	37111914AA	DIMMER POTENTION- METER&LINK LEAD ASSY	37111914AA DIMMER POTENTION- METER&LINK LEAD ASSY Dunhill cars	$110.34	1
-	3784175	SWITCH ASSY -HOOD UP	3784175 SWITCH ASSY -HOOD UP Volante only	$78.45	1
-	37111767AAM	INST PACK-KPH MPS	37111767AAM INST PACK-KPH MPS Dunhill cars	$5,619.14	1
-	80111779AA	CLOCK BEZEL (DUNHILL)	80111779AA CLOCK BEZEL (DUNHILL) Dunhill cars	$468.69	1
-	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel Dunhill cars	$33.36	2
-	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Dunhill cars	$0.12	3
-	697400	TIE STRAP	697400 TIE STRAP Dunhill cars	$0.89	9
-	698693	ADHESIVE-ALPHA 5050	698693 ADHESIVE-ALPHA 5050 Dunhill cars	-	-	Enquire
-	698698	RAYCHEM DURASEAL 4mm	698698 RAYCHEM DURASEAL 4mm Dunhill cars	$1.46	-
-	91330M	INST PACK-MPH UK MPS	91330M INST PACK-MPH UK MPS Not USA	$3,257.55	1
-	3781835	SWITCH ASSY-HEATED FRONT WINDOW	3781835 SWITCH ASSY-HEATED FRONT WINDOW	$73.78	1
-	3781833	SWITCH ASSY - FRONT FOG	3781833 SWITCH ASSY - FRONT FOG	$79.28	1
-	3784174	SWITCH ASSY - REAR FOG	3784174 SWITCH ASSY - REAR FOG	$87.99	1
-	3790389M	INST PACK-KPH MPS	3790389M INST PACK-KPH MPS	$5,031.86	1
1	37111675BA	A/C panel, non fog/hfs, Dunhill convertible	37111675BA A/C panel, non fog/hfs, Dunhill convertible LHD Dunhill cars - Canada	-	1	Enquire
1	37111674AA	A/C panel, non fog/hfs, Dunhill convertible	37111674AA A/C panel, non fog/hfs, Dunhill convertible LHD Dunhill cars - Sweden	-	1	Enquire
1	83111740BA	A/C PANEL - NON FOG/ HFS - CANADA - MAN CONV (DUNHILL)	83111740BA A/C PANEL - NON FOG/ HFS - CANADA - MAN CONV (DUNHILL) LHD Dunhill cars - Canada	$1,509.09	1
1	83111741BA	A/C PANEL - FOG/HFS - SWEDEN - MAN CONV (DUNHILL)	83111741BA A/C PANEL - FOG/HFS - SWEDEN - MAN CONV (DUNHILL) LHD Dunhill cars - Sweden	$1,509.09	1
1	83111718BA	A/C PANEL - NON FOG/ HFS - CANADA - AUTO CONV (DUNHILL)	83111718BA A/C PANEL - NON FOG/ HFS - CANADA - AUTO CONV (DUNHILL) LHD Dunhill cars - Canada	$1,509.09	1
1	83111719BA	A/C PANEL - FOG/HFS - SWEDEN - AUTO CONV (DUNHILL)	83111719BA A/C PANEL - FOG/HFS - SWEDEN - AUTO CONV (DUNHILL) LHD Dunhill cars - Sweden	$1,509.09	1
1	37111670AA	A/C panel, non fog/hfs, Dunhill coupe	37111670AA A/C panel, non fog/hfs, Dunhill coupe LHD Dunhill cars - Canada	-	1	Enquire
1	37111671AA	A/C CONTROL PANEL - FOG/HFS SWEDEN (DUNHILL COUPE)	37111671AA A/C CONTROL PANEL - FOG/HFS SWEDEN (DUNHILL COUPE) LHD Dunhill cars - Sweden	$1,208.03	1
1	83111736AA	A/C PANEL - NON FOG/ HFS - CANADA - MAN COUPE (DUNHILL)	83111736AA A/C PANEL - NON FOG/ HFS - CANADA - MAN COUPE (DUNHILL) LHD Dunhill cars - Canada	$1,311.12	1
1	83111737AA	A/C PANEL - FOG/HFS - SWEDEN - MAN COUPE (DUNHILL)	83111737AA A/C PANEL - FOG/HFS - SWEDEN - MAN COUPE (DUNHILL) LHD Dunhill cars - Sweden	$1,311.12	1
1	83111714AA	A/C panel, non fog/hfs, auto coupe	83111714AA A/C panel, non fog/hfs, auto coupe LHD Dunhill cars - Canada	-	1	Enquire
1	83111715AA	A/C PANEL - FOG/HFS - SWEDEN - AUTO COUPE (DUNHILL)	83111715AA A/C PANEL - FOG/HFS - SWEDEN - AUTO COUPE (DUNHILL) LHD Dunhill cars - Sweden	$1,509.09	1
1	37110881AA	Veneered panel A/C 3 hole	37110881AA Veneered panel A/C 3 hole Non fog/Non HFS USA Coupe	$321.44	1
1	37111677AA	A/C panel, non fog/hfs, fed, Dunhill convertible	37111677AA A/C panel, non fog/hfs, fed, Dunhill convertible LHD Dunhill cars - USA	-	1	Enquire
1	83111742BA	A/C PANEL - NON FOG/ NON HFS - FEDERAL - MAN CONV (DUNHILL)	83111742BA A/C PANEL - NON FOG/ NON HFS - FEDERAL - MAN CONV (DUNHILL) LHD Dunhill cars - USA	$1,509.09	1
1	83111720BA	A/C PANEL - NON FOG/ NON HFS - FEDERAL - AUTO CONV (DUNHILL)	83111720BA A/C PANEL - NON FOG/ NON HFS - FEDERAL - AUTO CONV (DUNHILL) LHD Dunhill cars - USA	$3,259.12	1
1	83111738AA	A/C PANEL - NON FOG/ NON HFS - FEDERAL - MAN COUPE (DUNHILL)	83111738AA A/C PANEL - NON FOG/ NON HFS - FEDERAL - MAN COUPE (DUNHILL) LHD Dunhill cars - USA	$1,509.09	1
1	83111716AA	A/C PANEL - NON FOG/ NON HFS - FEDERAL - AUTO COUPE (DUNHILL)	83111716AA A/C PANEL - NON FOG/ NON HFS - FEDERAL - AUTO COUPE (DUNHILL) LHD Dunhill cars - USA	-	1	Enquire
1	37111673AA	A/C CONTROL PANEL - FOG/NON HFS ROW (DUNHILL COUPE)	37111673AA A/C CONTROL PANEL - FOG/NON HFS ROW (DUNHILL COUPE) Dunhill cars - ROW	$1,532.94	1
1	83111743BA	A/C PANEL - FOG/NON HFS - ROW - MAN COUPE (DUNHILL)	83111743BA A/C PANEL - FOG/NON HFS - ROW - MAN COUPE (DUNHILL) Dunhill cars - ROW	$1,509.09	1
1	83111721BA	A/C PANEL - FOG/NON HFS - ROW - AUTO CONV (DUNHILL)	83111721BA A/C PANEL - FOG/NON HFS - ROW - AUTO CONV (DUNHILL) Dunhill cars - ROW	$1,509.09	1
1	83111739AA	A/C PANEL - FOG/NON HFS - ROW - MAN COUPE (DUNHILL)	83111739AA A/C PANEL - FOG/NON HFS - ROW - MAN COUPE (DUNHILL) Dunhill cars - ROW	$1,509.09	1
1	83111717AA	A/C PANEL - FOG/NON HFS - ROW - AUTO COUPE (DUNHILL)	83111717AA A/C PANEL - FOG/NON HFS - ROW - AUTO COUPE (DUNHILL) Dunhill cars - ROW	$1,247.20	1
1	8384404	FINISHER PANEL ASSY - FOG 6 HOLES	8384404 FINISHER PANEL ASSY - FOG 6 HOLES With front fog	$770.49	1
1	37110703BA	A/C panel, non fog/HFS	37110703BA A/C panel, non fog/HFS Volante Canada	-	1	Enquire
1	37110705BA	A/C panel, fog/HFS	37110705BA A/C panel, fog/HFS Volante Sweden	-	1	Enquire
1	8384405	FINISHER PANEL ASSY NON FOG 4 HOLES	8384405 FINISHER PANEL ASSY NON FOG 4 HOLES Non front fog	$498.82	1
1	37110702AA	A/C panel, non fog and HFS	37110702AA A/C panel, non fog and HFS Coupe Canada	-	1	Enquire
1	37110704AA	A/C panel, fog/HFS	37110704AA A/C panel, fog/HFS Coupe Sweden	-	1	Enquire
1	37110709BA	AIR CON CONTROL PNL	37110709BA AIR CON CONTROL PNL Volante USA	$1,577.80	1
1	37110882AA	ASSY-FINISHER PANEL- FOG + NON HFS	37110882AA ASSY-FINISHER PANEL- FOG + NON HFS Fog Non HFS	$498.82	1
1	37110708AA	AIR CON CONTROL PNL -COUPE-FOG + NON HFS ROW	37110708AA AIR CON CONTROL PNL -COUPE-FOG + NON HFS ROW Coupe ROW	$1,317.52	1
1	37110706AA	AIR CON CONTROL PNL -COUPE-NON FOG + NON HFS FED	37110706AA AIR CON CONTROL PNL -COUPE-NON FOG + NON HFS FED Coupe USA	$1,450.86	1
1	8984737	A/C panel - non fog (supplied as component only)	8984737 A/C panel - non fog (supplied as component only) Volante	$3,614.55	1
1	8984736	A/C panel with fog (supplied as component only)	8984736 A/C panel with fog (supplied as component only) Volante	-	1	Enquire
1	8984735	A/C CONTROL PANEL NON-FOG COUPE	8984735 A/C CONTROL PANEL NON-FOG COUPE Coupe	-	1	Enquire
1	8984734	A/C panel with fog (supplied as component only)	8984734 A/C panel with fog (supplied as component only) Coupe	$1,983.00	1
3	3785227	HAZARD SWITCH	3785227 HAZARD SWITCH Dunhill	$113.57	1
3	3786295	HAZARD SWITCH ASSY	3786295 HAZARD SWITCH ASSY	$88.29	1
4	3781832	SWITCH ASSY - HEATED REAR WINDOW	3781832 SWITCH ASSY - HEATED REAR WINDOW	$73.94	1
4	3781829	SWITCH ASSY INTERIOR LIGHT	3781829 SWITCH ASSY INTERIOR LIGHT	$71.76	1
4	3784177	SWITCH ASSY - MAP LIGHT	3784177 SWITCH ASSY - MAP LIGHT	$89.16	1
5	3750326	SWITCH ROCKER	3750326 SWITCH ROCKER Up to (V) 101620	$138.53	2
6	3783433	Clock A/C panel	3783433 Clock A/C panel Standard Cars	-	1	Enquire
6	91358	Clock A/C panel	91358 Clock A/C panel Dunhill Cars	$308.12	1
6	37124358AA	ASSY-COLUMN SW/GEAR	37124358AA ASSY-COLUMN SW/GEAR	$1,049.53	1
6	3785876	CANCELL CASSETTE	3785876 CANCELL CASSETTE	$229.71	1
10	3790390M	INST PAK-FED MPH MPS	3790390M INST PAK-FED MPH MPS USA only	$4,113.74	1
13	697621	SPRING NUT	697621 SPRING NUT Instrument pack attach	$0.48	2
