Find Your Part

View All

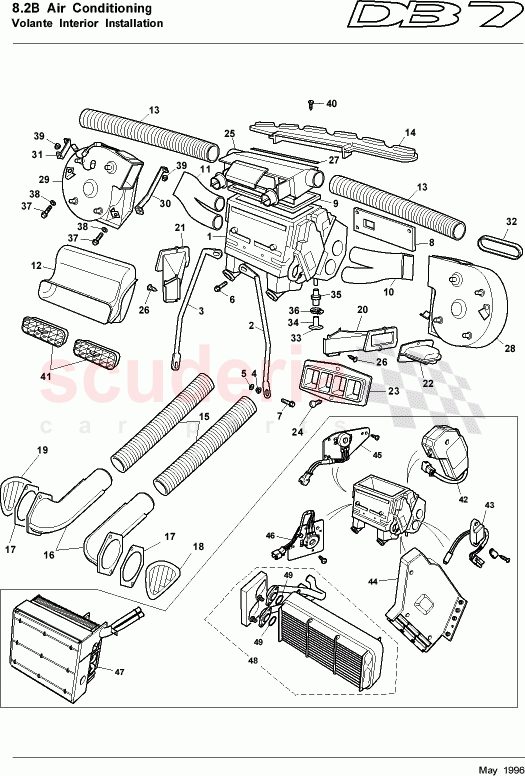

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89123468AB	AIRCON UNIT COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983049	SEAL-TOP DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984284	DUCT - CENTRE VENT CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982105	DUCT - DEMIST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982106	TUBE-CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984288	DUCT DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984138	DUCT ASSY- DISTRIBUTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983052	VENT CENTRE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8982112	VACUUM MTR-FT FLAP & TOP FLAP	8982112 VACUUM MTR-FT FLAP & TOP FLAP Front flap and top flap	-	2	Enquire
-	8984289	DUCT DIFFUSER	8984289 DUCT DIFFUSER Not USA/CDN	-	1	Enquire
-	3183100	Seal strip, self adhesive foam	3183100 Seal strip, self adhesive foam	-	1	Enquire
-	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	-	1	Enquire
-	8985730	SWITCH-WATER TEMP	8985730 SWITCH-WATER TEMP	-	1	Enquire
-	8990360	Tube, centre console	8990360 Tube, centre console	-	1	Enquire
-	8982138	ASSY SENSOR AMBIENT	8982138 ASSY SENSOR AMBIENT	-	1	Enquire
-	697411	Adhesive tape	697411 Adhesive tape	-	1	Enquire
-	6990043	FOAM STRIP	6990043 FOAM STRIP	-	1	Enquire
-	697612	CABLE TIE STRAP	697612 CABLE TIE STRAP	-	10	Enquire
-	8983052	VENT CENTRE	8983052 VENT CENTRE	-	2	Enquire
1	89123468AB	AIRCON UNIT COMPLETE	89123468AB AIRCON UNIT COMPLETE	-	1	Enquire
9	8983049	SEAL-TOP DUCT	8983049 SEAL-TOP DUCT	-	1	Enquire
12	8984284	DUCT - CENTRE VENT CONNECTOR	8984284 DUCT - CENTRE VENT CONNECTOR	-	1	Enquire
14	8982105	DUCT - DEMIST	8982105 DUCT - DEMIST	-	1	Enquire
15	8982106	TUBE-CENTRE CONSOLE	8982106 TUBE-CENTRE CONSOLE	-	1	Enquire
23	8984288	DUCT DIFFUSER	8984288 DUCT DIFFUSER Not USA/CDN	-	1	Enquire
25	8984138	DUCT ASSY- DISTRIBUTION	8984138 DUCT ASSY- DISTRIBUTION	-	1	Enquire
41	8983052	VENT CENTRE	8983052 VENT CENTRE	-	2	Enquire
