Pedal Gear - Brake and Clutch of Aston Martin Aston Martin DB7 (1995)

View All

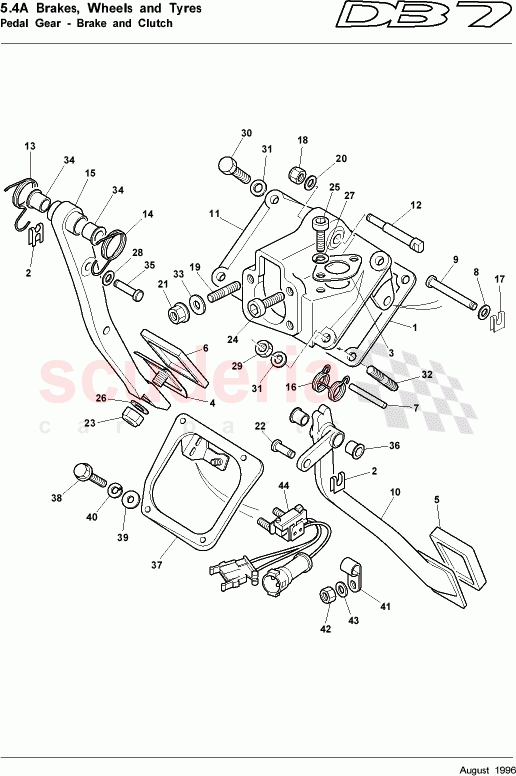

Aston Martin DB7 (1995) - Pedal Gear - Brake and Clutch

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981243	PEDAL PAD-RUBBER- BRAKE-MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981251	ASSY-CLUTCH PEDAL COMPLETE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981253	HOUSING-BOOSTER AND PEDAL MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981258	ASSY-BRAKE PEDAL RHD MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981779	PDL BT RETAINER-RHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	2981252	ASSY-CLUTCH PEDAL COMPLETE LHD	2981252 ASSY-CLUTCH PEDAL COMPLETE LHD LHD Manual	-	1	Enquire
-	2981245	Pedal and housing assembly	2981245 Pedal and housing assembly RHD Manual	-	1	Enquire
-	2981246	Pedal and housing assembly	2981246 Pedal and housing assembly LHD Manual	-	1	Enquire
-	2981259	ASSY-BRAKE PEDAL- LHD MANUAL	2981259 ASSY-BRAKE PEDAL- LHD MANUAL LHD Manual	-	1	Enquire
-	2981247	Pedal and housing assembly	2981247 Pedal and housing assembly RHD Auto	-	1	Enquire
-	2981248	Pedal and housing assembly	2981248 Pedal and housing assembly LHD Auto	-	1	Enquire
-	2981260	ASSY-BRAKE PEDAL- RHD AUTO	2981260 ASSY-BRAKE PEDAL- RHD AUTO RHD Auto	-	1	Enquire
-	2981261	ASSY-BRAKE PEDAL- LHD AUTO	2981261 ASSY-BRAKE PEDAL- LHD AUTO LHD Auto	-	1	Enquire
-	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16 Auto	-	1	Enquire
-	2981244	PEDAL PAD-RUBBER BRAKE-AUTO	2981244 PEDAL PAD-RUBBER BRAKE-AUTO Auto	-	1	Enquire
-	2983095	PEDAL HOUSING-AUTO	2983095 PEDAL HOUSING-AUTO Auto	-	1	Enquire
-	2981780	PDL BT RETAINER-LHD	2981780 PDL BT RETAINER-LHD LHD	-	1	Enquire
-	2983093	Pedal gear assembly, complete	2983093 Pedal gear assembly, complete RHD Manual	-	1	Enquire
-	2983094	Pedal gear assembly, complete	2983094 Pedal gear assembly, complete LHD Manual	-	1	Enquire
-	2981236	Pedal gear assembly, complete	2981236 Pedal gear assembly, complete RHD Auto	-	1	Enquire
-	2981237	Pedal gear assembly, complete	2981237 Pedal gear assembly, complete LHD Auto	-	1	Enquire
2	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16 Manual	-	2	Enquire
6	2981243	PEDAL PAD-RUBBER- BRAKE-MANUAL	2981243 PEDAL PAD-RUBBER- BRAKE-MANUAL Manual	-	1	Enquire
10	2981251	ASSY-CLUTCH PEDAL COMPLETE RHD	2981251 ASSY-CLUTCH PEDAL COMPLETE RHD RHD Manual	-	1	Enquire
11	2981253	HOUSING-BOOSTER AND PEDAL MANUAL	2981253 HOUSING-BOOSTER AND PEDAL MANUAL Manual	-	1	Enquire
15	2981258	ASSY-BRAKE PEDAL RHD MANUAL	2981258 ASSY-BRAKE PEDAL RHD MANUAL RHD Manual	-	1	Enquire
37	2981779	PDL BT RETAINER-RHD	2981779 PDL BT RETAINER-RHD RHD	-	1	Enquire
