Handbrake of Aston Martin Aston Martin DB7 (1995)

View All

Aston Martin DB7 (1995) - Handbrake

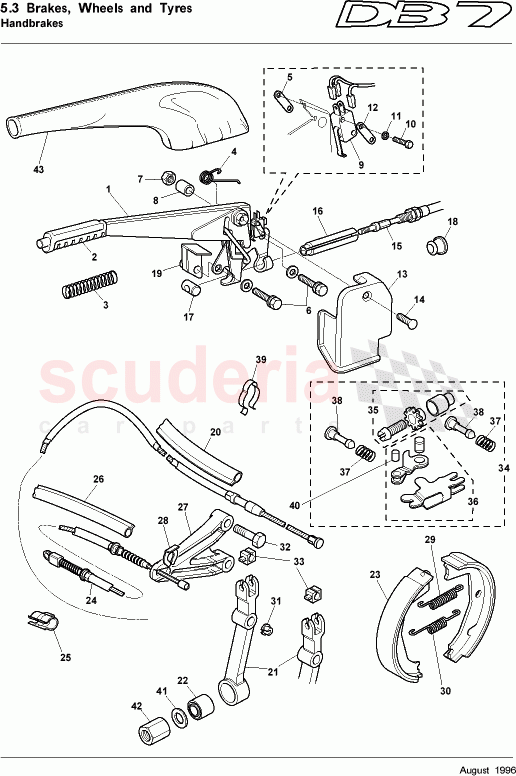

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3083091	HANDBRAKE LEVER ASSY RHD	Enquire	To Order
	3083092	HANDBRAKE LEVER ASSY LHD	Enquire	To Order
	3090156	ASSY-HANDBRAKE HAND- LEVER-RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3080517	SPRING RETURN- HANDBRAKE LEVER	Enquire	To Order
	3080518	SPRING RETURN- HANDBRAKE LEVER	Enquire	To Order
	3083437	RETURN SPRING-RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3080520	SCREW PAINT CLEARING	Enquire	To Order
	697192	BOLT M8 x 35 HEX HD S	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3080521	SPACER	Enquire	To Order
	3083439	SPACER-H/BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3080525	COVER HANDBRAKE -RHD	Enquire	To Order
	3080526	COVER HANDBRAKE -LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3083209	HANDBRAKE CABLE	Enquire	To Order
	3083218	HANDBRAKE CABLE- FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3080529	TRUNNION-HANDBRAKE CABLE	Enquire	To Order
	3083441	TRUNNION-H/BRAKE CBL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3080531	ASSY HANDBRAKE LEVER STOP RHD	Enquire	To Order
	3080532	ASSY HANDBRAKE LEVER STOP LHD	Enquire	To Order
	3782039	FIXING GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3080541	HANDBRAKE ABUTMENT BRACKET RH	Enquire	To Order
	3080542	HANDBRAKE ABUTMENT BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2881776	Parking brake clip	Enquire	To Order
	3080539	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8380525	Cover - handbrake - RHD - advise trim	Enquire	To Order
	8380526	Cover - handbrake - LHD - advise trim	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3083091	HANDBRAKE LEVER ASSY RHD	3083091 HANDBRAKE LEVER ASSY RHD Up to (V)100089	-	1	Enquire
1	3083092	HANDBRAKE LEVER ASSY LHD	3083092 HANDBRAKE LEVER ASSY LHD Up to (V)100089	-	1	Enquire
1	3090156	ASSY-HANDBRAKE HAND- LEVER-RHD	3090156 ASSY-HANDBRAKE HAND- LEVER-RHD From (V)100090	-	1	Enquire
1	3090157	ASSY-HANDBRAKE HAND- LEVER-LHD	3090157 ASSY-HANDBRAKE HAND- LEVER-LHD From (V)100090	-	1	Enquire
4	3080517	SPRING RETURN- HANDBRAKE LEVER	3080517 SPRING RETURN- HANDBRAKE LEVER Up to (V)100089	-	1	Enquire
4	3080518	SPRING RETURN- HANDBRAKE LEVER	3080518 SPRING RETURN- HANDBRAKE LEVER Up to (V)100089	-	1	Enquire
4	3083437	RETURN SPRING-RHD	3083437 RETURN SPRING-RHD From (V)100090	-	1	Enquire
4	3083438	RETURN SPRING-LHD	3083438 RETURN SPRING-LHD From (V)100090	-	1	Enquire
6	3080520	SCREW PAINT CLEARING	3080520 SCREW PAINT CLEARING Up to (V)100089	-	2	Enquire
6	697192	BOLT M8 x 35 HEX HD S	697192 BOLT M8 x 35 HEX HD S From (V)100090	-	2	Enquire
8	3080521	SPACER	3080521 SPACER Up to (V)100089	-	2	Enquire
8	3083439	SPACER-H/BRAKE LEVER	3083439 SPACER-H/BRAKE LEVER From (V)100090	-	2	Enquire
13	3080525	COVER HANDBRAKE -RHD	3080525 COVER HANDBRAKE -RHD Up to (V)100089	-	2	Enquire
13	3080526	COVER HANDBRAKE -LHD	3080526 COVER HANDBRAKE -LHD Up to (V)100089	-	2	Enquire
15	3083209	HANDBRAKE CABLE	3083209 HANDBRAKE CABLE Up to (V)100089	-	1	Enquire
15	3083218	HANDBRAKE CABLE- FRONT	3083218 HANDBRAKE CABLE- FRONT From (V)100090	-	1	Enquire
17	3080529	TRUNNION-HANDBRAKE CABLE	3080529 TRUNNION-HANDBRAKE CABLE Up to (V)100089	-	1	Enquire
17	3083441	TRUNNION-H/BRAKE CBL	3083441 TRUNNION-H/BRAKE CBL From (V)100090	-	1	Enquire
19	3080531	ASSY HANDBRAKE LEVER STOP RHD	3080531 ASSY HANDBRAKE LEVER STOP RHD	-	1	Enquire
19	3080532	ASSY HANDBRAKE LEVER STOP LHD	3080532 ASSY HANDBRAKE LEVER STOP LHD	-	1	Enquire
19	3782039	FIXING GROMMET	3782039 FIXING GROMMET	-	1	Enquire
27	3080541	HANDBRAKE ABUTMENT BRACKET RH	3080541 HANDBRAKE ABUTMENT BRACKET RH	-	1	Enquire
27	3080542	HANDBRAKE ABUTMENT BRACKET LH	3080542 HANDBRAKE ABUTMENT BRACKET LH	-	1	Enquire
39	2881776	Parking brake clip	2881776 Parking brake clip Up to (V)100344	-	2	Enquire
39	3080539	CLIP	3080539 CLIP From (V)100345	-	2	Enquire
43	8380525	Cover - handbrake - RHD - advise trim	8380525 Cover - handbrake - RHD - advise trim From (V)100090	-	1	Enquire
43	8380526	Cover - handbrake - LHD - advise trim	8380526 Cover - handbrake - LHD - advise trim From (V)100090	-	1	Enquire
