Fuel Tank Assembly

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Fuel Tank Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7700174010 Tank Assy Enquire To Order
Photo Part No Description Price (each) Stock
7719612080 Clamp, Evaporation Vent Tube Enquire To Order
Photo Part No Description Price (each) Stock
7760674011 Protector Sub-Assy, Fuel Tank, No 1 $281.07 To Order
Photo Part No Description Price (each) Stock
7760274010 Band Sub-Assy, Fuel Tank, No 1 LH $52.33 To Order
Photo Part No Description Price (each) Stock
7768121020 Seat, Fuel Tank Band, LH $13.53 To Order
Photo Part No Description Price (each) Stock
7760174010 Band Sub-Assy, Fuel Tank, No 1 RH $52.33 To Order
Photo Part No Description Price (each) Stock
7768121020 Seat, Fuel Tank Band, LH $13.53 To Order
Photo Part No Description Price (each) Stock
9011910951 Bolt. W/Washer $2.94 To Order
Photo Part No Description Price (each) Stock
9017906219 Nut, EL91 $1.82 To Order
Photo Part No Description Price (each) Stock
9046709227 Clip $3.07 To Order
Photo Part No Description Price (each) Stock
7765274010 Cushion, Fuel Tank, No. 2 Enquire To Order
Photo Part No Description Price (each) Stock
7765174010 Cushion, Fuel Tank, No. 1 Enquire To Order
Photo Part No Description Price (each) Stock
7701074011 Tube Assy, Fuel Tank Vent $185.92 To Order
Photo Part No Description Price (each) Stock
8332074010 Gage Assy $96.78 To Order
Photo Part No Description Price (each) Stock
7714474010 Retainer, Fuel Pump Gauge Enquire To Order
Photo Part No Description Price (each) Stock
7716974010 Gasket, Fuel Tank Suction Tube $9.97 To Order
Photo Part No Description Price (each) Stock
7775474010 Hose, Charcoal Canister Outlet, No.1, L=487 Enquire To Order
Photo Part No Description Price (each) Stock
7702674010 Tube Sub-Assy, Fuel Evaporation, No. 1 Enquire To Order
Photo Part No Description Price (each) Stock
7702774010 Tube Sub-Assy, Fuel Evaporation, No. 2 Enquire To Order
Photo Part No Description Price (each) Stock
7702874010 Tube Sub-Assy, Fuel Emission, Rear Enquire To Order
Photo Part No Description Price (each) Stock
9613251100 Clamp, Fuel Hose $3.39 To Order
Photo Part No Description Price (each) Stock
7719742020 Clamp, Evaporation Vent Tube Enquire To Order
Photo Part No Description Price (each) Stock
8241374010 Wire, Fuel Tank Enquire To Order
Photo Part No Description Price (each) Stock
7728174010 Clamp, Fuel Hose Enquire To Order
Photo Part No Description Price (each) Stock
7702474010 Plate Sub-Assy, Fuel Suction Enquire To Order
Photo Part No Description Price (each) Stock
2322140010 Pump, Fuel Enquire To Order
Photo Part No Description Price (each) Stock
7765274020 Cushion, Fuel Tank, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
7778574010 Harness, Fuel Pump Enquire To Order
Photo Part No Description Price (each) Stock
232250T010 Spacer, Fuel Pump $11.77 To Order
Photo Part No Description Price (each) Stock
2328021010 Regulator Assy, Fuel Pressure Enquire To Order
Photo Part No Description Price (each) Stock
9030104013 O Ring, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
7717574010 Support, Fuel Suction, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
9030108020 O Ring $6.56 To Order
Photo Part No Description Price (each) Stock
9030108019 O Ring, Fuel Pump $6.88 To Order
Photo Part No Description Price (each) Stock
2321740011 Filter, Fuel Pump $23.82 To Order
Photo Part No Description Price (each) Stock
7720974010 Tube Sub-Assy, Fuel Tank Main Enquire To Order
Photo Part No Description Price (each) Stock
7724133011 Clip, Tube Joint Enquire To Order
Photo Part No Description Price (each) Stock
7701774010 Tube Sub-Assy, Fuel Tank Vent Enquire To Order
Photo Part No Description Price (each) Stock
7721074030 Pipe, Fuel Tank Filler $326.70 To Order
Photo Part No Description Price (each) Stock
9011910963 Bolt, W/Washer $2.53 To Order
Photo Part No Description Price (each) Stock
7739112020 Ring, Fuel Inlet Box Enquire To Order
Photo Part No Description Price (each) Stock
7729152010 Shield, Fuel Tank Filler Pipe Enquire To Order
Photo Part No Description Price (each) Stock
7730052030 Cap Assy, Fuel Tank $37.32 To Order
Photo Part No Description Price (each) Stock
7735074011 Lid Assy, Fuel Filler Opening Enquire To Order
Photo Part No Description Price (each) Stock
7736652010 Spring, Fuel Filler Opening Lid Hinge Enquire To Order
Photo Part No Description Price (each) Stock
9026906013 Rivet, Fuel Filler Opening Lid, MCV20 $0.75 To Order
Photo Part No Description Price (each) Stock
7703574020 Cable Sub Assy, Fuel Lid Lock Control, RHD Enquire To Order
Photo Part No Description Price (each) Stock
7737752020 Retainer, Fuel Filler Opening Lid Lock Enquire To Order
Photo Part No Description Price (each) Stock
7730652030 Lever Sub Assy, Fuel Lid Lock Opening, RHD $53.17 To Order
Photo Part No Description Price (each) Stock
6464812020 Grommet, Luggage Door Lock Opening Enquire To Order
Photo Part No Description Price (each) Stock
9015960602 Screw, with Washer $1.34 IN STOCK
Photo Part No Description Price (each) Stock
7733374020 Clamp, Fuel Lid Lock Control Cable, No.2, RHD Enquire To Order
Photo Part No Description Price (each) Stock
7733374010 Clamp, Fuel Lid Lock Control Cable, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
827112A250 Clamp, Fuel Lid Lock Control Cable Enquire To Order
Photo Part No Description Price (each) Stock
7733374030 Retainer, Fuel Filler Opening Lid Lock Enquire To Order
View All

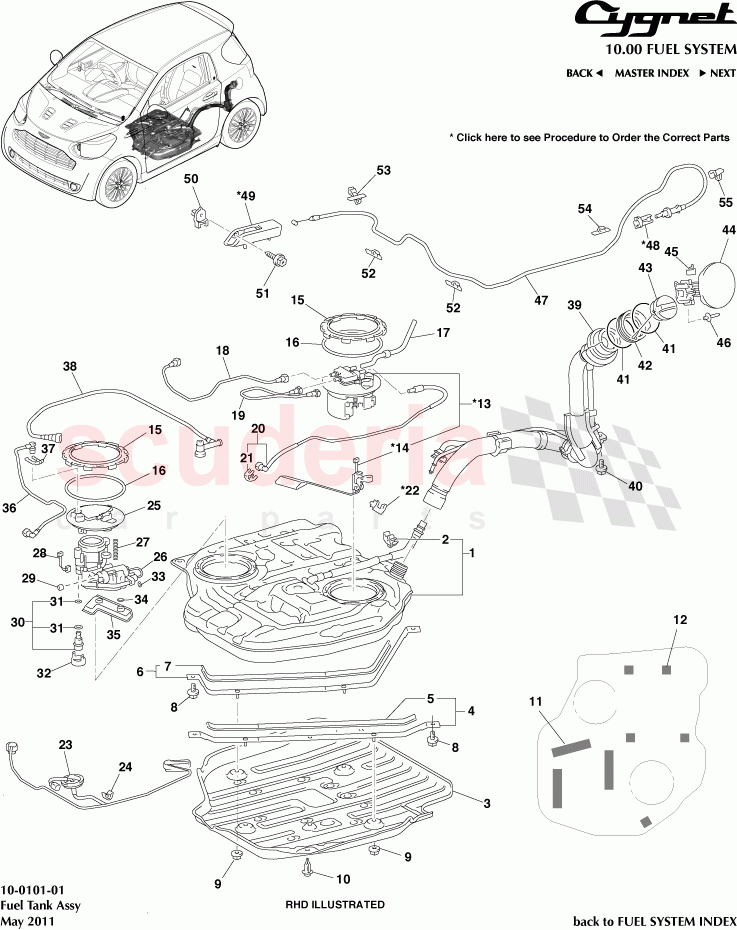

Fuel Tank Assembly of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 7701074012
Tube Assy, Fuel Tank Vent
*From 04/2011 		$304.78 1
- 8332074011
Gage Assy
*From 05/2011 		$159.21 1
- 7719774010
Clamp, Evaporation Vent Tube
*From 12/2010 		- 1 Enquire
- 7703574010
Cable Sub Assy, Fuel Lid Lock Control, LHD 		- 1 Enquire
- 7737775010
Retainer, Fuel Filler Opening Lid Lock
*From 08/2010 		- 1 Enquire
- 7730652050
Lever Sub Assy, Fuel Lid Lock Opening, RHD
*From 09/2010 		- 1 Enquire
- 7730652040
Lever Sub Assy, Fuel Lid Lock Opening, LHD
*11/2008 to 09/2010 		$53.17 1
- 7730652060
Lever Sub Assy, Fuel Lid Lock Opening, LHD
*From 09/2010 		- 1 Enquire
1 7700174010
Tank Assy 		- 1 Enquire
2 7719612080
Clamp, Evaporation Vent Tube 		- 1 Enquire
3 7760674011
Protector Sub-Assy, Fuel Tank, No 1 		$281.07 1
4 7760274010
Band Sub-Assy, Fuel Tank, No 1 LH 		$52.33 1
5 7768121020
Seat, Fuel Tank Band, LH 		$13.53 1
6 7760174010
Band Sub-Assy, Fuel Tank, No 1 RH 		$52.33 1
7 7768121020
Seat, Fuel Tank Band, LH 		$13.53 1
8 9011910951
Bolt. W/Washer 		$2.94 4
9 9017906219
Nut, EL91 		$1.82 4
10 9046709227
Clip 		$3.07 2
11 7765274010
Cushion, Fuel Tank, No. 2 		- 3 Enquire
12 7765174010
Cushion, Fuel Tank, No. 1 		- 5 Enquire
13 7701074011
Tube Assy, Fuel Tank Vent
*12/2009 to 03/2011 		$185.92 1
14 8332074010
Gage Assy
*11/2008 to 04/2011 		$96.78 1
15 7714474010
Retainer, Fuel Pump Gauge 		- 2 Enquire
16 7716974010
Gasket, Fuel Tank Suction Tube 		$9.97 2
17 7775474010
Hose, Charcoal Canister Outlet, No.1, L=487 		- 1 Enquire
18 7702674010
Tube Sub-Assy, Fuel Evaporation, No. 1 		- 1 Enquire
19 7702774010
Tube Sub-Assy, Fuel Evaporation, No. 2 		- 1 Enquire
20 7702874010
Tube Sub-Assy, Fuel Emission, Rear 		- 1 Enquire
21 9613251100
Clamp, Fuel Hose 		$3.39 1
22 7719742020
Clamp, Evaporation Vent Tube
*05/2010 to 11/2010 		- 1 Enquire
23 8241374010
Wire, Fuel Tank 		- 1 Enquire
24 7728174010
Clamp, Fuel Hose 		- 1 Enquire
25 7702474010
Plate Sub-Assy, Fuel Suction 		- 1 Enquire
26 2322140010
Pump, Fuel 		- 1 Enquire
27 7765274020
Cushion, Fuel Tank, No.2 		- 1 Enquire
28 7778574010
Harness, Fuel Pump 		- 1 Enquire
29 232250T010
Spacer, Fuel Pump 		$11.77 1
30 2328021010
Regulator Assy, Fuel Pressure 		- 1 Enquire
31 9030104013
O Ring, No.1 		- 2 Enquire
32 7717574010
Support, Fuel Suction, No.2 		- 1 Enquire
33 9030108020
O Ring 		$6.56 1
34 9030108019
O Ring, Fuel Pump 		$6.88 1
35 2321740011
Filter, Fuel Pump 		$23.82 1
36 7720974010
Tube Sub-Assy, Fuel Tank Main 		- 1 Enquire
37 7724133011
Clip, Tube Joint 		- 1 Enquire
38 7701774010
Tube Sub-Assy, Fuel Tank Vent 		- 1 Enquire
39 7721074030
Pipe, Fuel Tank Filler 		$326.70 1
40 9011910963
Bolt, W/Washer 		$2.53 1
41 7739112020
Ring, Fuel Inlet Box 		- 2 Enquire
42 7729152010
Shield, Fuel Tank Filler Pipe 		- 1 Enquire
43 7730052030
Cap Assy, Fuel Tank 		$37.32 1
44 7735074011
Lid Assy, Fuel Filler Opening 		- 1 Enquire
45 7736652010
Spring, Fuel Filler Opening Lid Hinge 		- 1 Enquire
46 9026906013
Rivet, Fuel Filler Opening Lid, MCV20 		$0.75 2
47 7703574020
Cable Sub Assy, Fuel Lid Lock Control, RHD 		- 1 Enquire
48 7737752020
Retainer, Fuel Filler Opening Lid Lock
*11/2008 to 07/2010 		- 1 Enquire
49 7730652030
Lever Sub Assy, Fuel Lid Lock Opening, RHD
*11/2008 to 09/2010 		$53.17 1
50 6464812020
Grommet, Luggage Door Lock Opening 		- 1 Enquire
51 9015960602
Screw, with Washer
IN STOCK 		$1.34 1
52 7733374020
Clamp, Fuel Lid Lock Control Cable, No.2, RHD 		- 2 Enquire
53 7733374010
Clamp, Fuel Lid Lock Control Cable, No.1 		- 1 Enquire
54 827112A250
Clamp, Fuel Lid Lock Control Cable 		- 1 Enquire
55 7733374030
Retainer, Fuel Filler Opening Lid Lock 		- 1 Enquire
