Find Your Part

View All

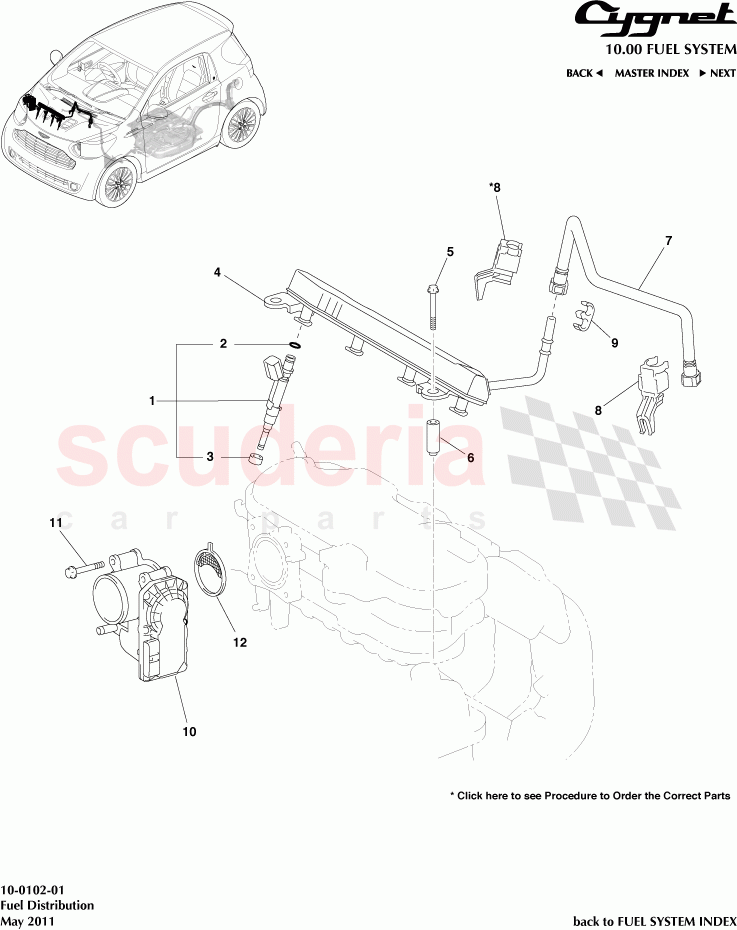

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2320949205	Injector Assy, Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9030107042	O Ring, Fuel Injector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232910J020	Insulator, Injector Vibration	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2381447020	Pipe, Fuel Delivery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90105W0138	Bolt, Flange J807	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2389147010	Spacer, No.1, Dlivery Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2327147010	Hose, Fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2384121050	Clamp, Fuel Tube, No.1, (for EFI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7728150040	Clamp, Fuel Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2203047020	Body Assy, Throttle W/ Motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180650	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2227147020	Gasket, Throttle Body	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	2384136010	Clamp, Fuel Tube, No.1, (for EFI)	2384136010 Clamp, Fuel Tube, No.1, (for EFI) *From 10/2010	-	2	Enquire
1	2320949205	Injector Assy, Fuel	2320949205 Injector Assy, Fuel	-	1	Enquire
2	9030107042	O Ring, Fuel Injector	9030107042 O Ring, Fuel Injector	-	1	Enquire
3	232910J020	Insulator, Injector Vibration	232910J020 Insulator, Injector Vibration	-	1	Enquire
4	2381447020	Pipe, Fuel Delivery	2381447020 Pipe, Fuel Delivery	-	1	Enquire
5	90105W0138	Bolt, Flange J807	90105W0138 Bolt, Flange J807	-	2	Enquire
6	2389147010	Spacer, No.1, Dlivery Pipe	2389147010 Spacer, No.1, Dlivery Pipe	-	2	Enquire
7	2327147010	Hose, Fuel	2327147010 Hose, Fuel	-	1	Enquire
8	2384121050	Clamp, Fuel Tube, No.1, (for EFI)	2384121050 Clamp, Fuel Tube, No.1, (for EFI) *05/2009 to 09/2010	-	2	Enquire
9	7728150040	Clamp, Fuel Hose	7728150040 Clamp, Fuel Hose	-	1	Enquire
10	2203047020	Body Assy, Throttle W/ Motor	2203047020 Body Assy, Throttle W/ Motor	-	1	Enquire
11	9155180650	Bolt, Flange	9155180650 Bolt, Flange	-	4	Enquire
12	2227147020	Gasket, Throttle Body	2227147020 Gasket, Throttle Body	-	1	Enquire
