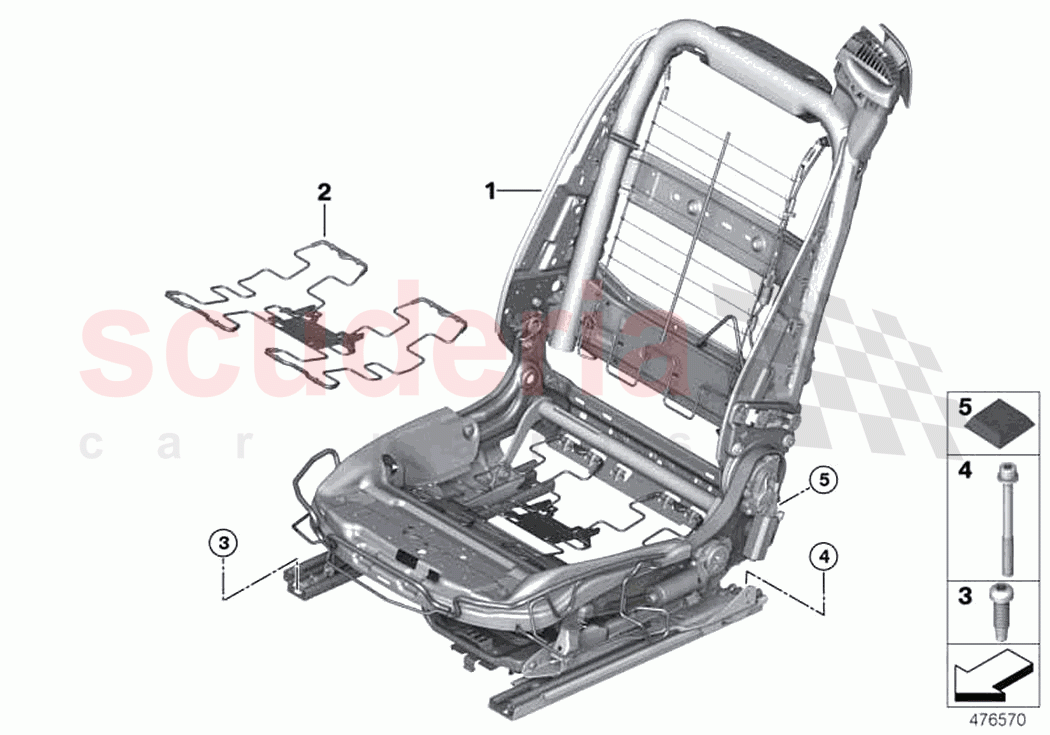

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107304427	Seat mechanism, basic seat, left	Enquire	To Order
	52107304428	Seat mechanism, basic seat, right	Enquire	To Order
	52107313353	Seat mechanism, active seat, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7149156953	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117676886	Isa screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51318236877	Bump stop	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52107304427	Seat mechanism, basic seat, left	52107304427 Seat mechanism, basic seat, left	-	1	Enquire
1	52107304428	Seat mechanism, basic seat, right	52107304428 Seat mechanism, basic seat, right	-	1	Enquire
1	52107313353	Seat mechanism, active seat, left	52107313353 Seat mechanism, active seat, left	-	1	Enquire
1	52107313354	Seat mechanism, active seat, right	52107313354 Seat mechanism, active seat, right	-	1	Enquire
2	52107321955	Spring pad, basic	52107321955 Spring pad, basic	-	1	Enquire
2	52107321957	Spring pad, Comfort seat	52107321957 Spring pad, Comfort seat	-	1	Enquire
3	7149156953	Fillister head screw	7149156953 Fillister head screw M10X37	-	8	Enquire
4	11117676886	Isa screw with washer	11117676886 Isa screw with washer M10X100	-	2	Enquire
5	51318236877	Bump stop	51318236877 Bump stop	-	8	Enquire
