Name: Levelling device pressure accumulator
Rating: 5.0 (1 reviews)

Levelling device pressure accumulator of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

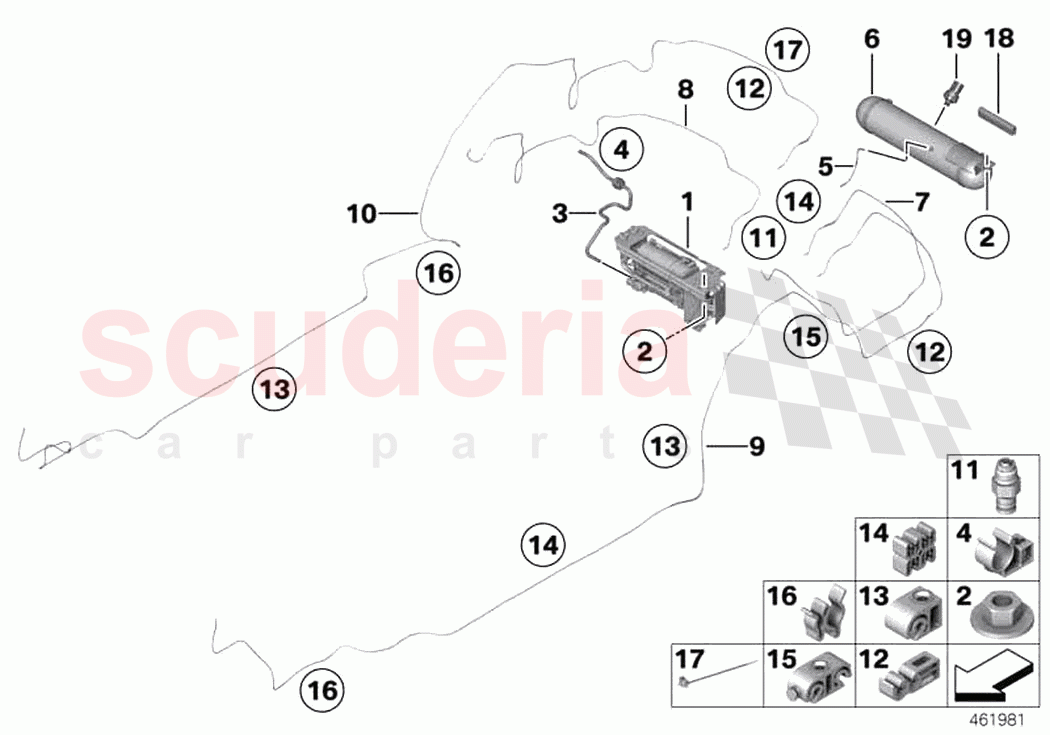

Rolls Royce Wraith RR5(2017-2023) - Levelling device pressure accumulator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37206886059	RP air supply system	$2,029.18	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905411	Hex nut	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	37206788733	Vent tubing	$216.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16131183931	Cable clip	$7.53	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782229	Pipe	$40.16	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782228	Pressure accumulator, air supply system	$2,260.67	To Order

Photo	Part No	Description	Price (each)	Stock
	37206856593	Pipe, rear left air spring	$204.90	To Order

Photo	Part No	Description	Price (each)	Stock
	37206856594	Pipe, rear right air spring	$204.90	To Order

Photo	Part No	Description	Price (each)	Stock
	37206854509	Pipe, front left air spring	$427.27	To Order

Photo	Part No	Description	Price (each)	Stock
	37206854510	Pipe, front right air spring	$338.70	To Order

Photo	Part No	Description	Price (each)	Stock
	37221092403	Screwed connection	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	34306784201	Line clip, double	$4.11	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	37226776050	Pipe clip	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	34326880898	Brake pipe bracket	$5.80	To Order

Photo	Part No	Description	Price (each)	Stock
	34317707371	Tandem clamp	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	61138370478	Cable tie	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	51721866416	Edge protection	$15.92	To Order

Photo	Part No	Description	Price (each)	Stock
	37146756263	Pressure sensor	$190.81	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	61366901469	Relay, make contact, black	61366901469 Relay, make contact, black	$24.47	1
1	37206886059	RP air supply system	37206886059 RP air supply system	$2,029.18	1
2	7129905411	Hex nut	7129905411 Hex nut BM6-8-ZNNIV SI	$0.97	8
3	37206788733	Vent tubing	37206788733 Vent tubing	$216.60	1
4	16131183931	Cable clip	16131183931 Cable clip D18	$7.53	1
5	37206782229	Pipe	37206782229 Pipe 225MM	$40.16	1
6	37206782228	Pressure accumulator, air supply system	37206782228 Pressure accumulator, air supply system	$2,260.67	1
7	37206856593	Pipe, rear left air spring	37206856593 Pipe, rear left air spring 2411MM	$204.90	1
8	37206856594	Pipe, rear right air spring	37206856594 Pipe, rear right air spring 2703MM	$204.90	1
9	37206854509	Pipe, front left air spring	37206854509 Pipe, front left air spring 6488MM	$427.27	1
10	37206854510	Pipe, front right air spring	37206854510 Pipe, front right air spring 7067MM	$338.70	1
11	37221092403	Screwed connection	37221092403 Screwed connection D=4MM	$5.04	10
12	34306784201	Line clip, double	34306784201 Line clip, double	$4.11	6
13	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	$2.12	17
14	37226776050	Pipe clip	37226776050 Pipe clip	$2.43	8
15	34326880898	Brake pipe bracket	34326880898 Brake pipe bracket	$5.80	16
16	34317707371	Tandem clamp	34317707371 Tandem clamp D=5-8/10-12MM	$3.53	3
17	61138370478	Cable tie	61138370478 Cable tie	$0.75	2
18	51721866416	Edge protection	51721866416 Edge protection	$15.92	1
19	37146756263	Pressure sensor	37146756263 Pressure sensor 21BAR	$190.81	1
