Hydro steering oil pipes of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

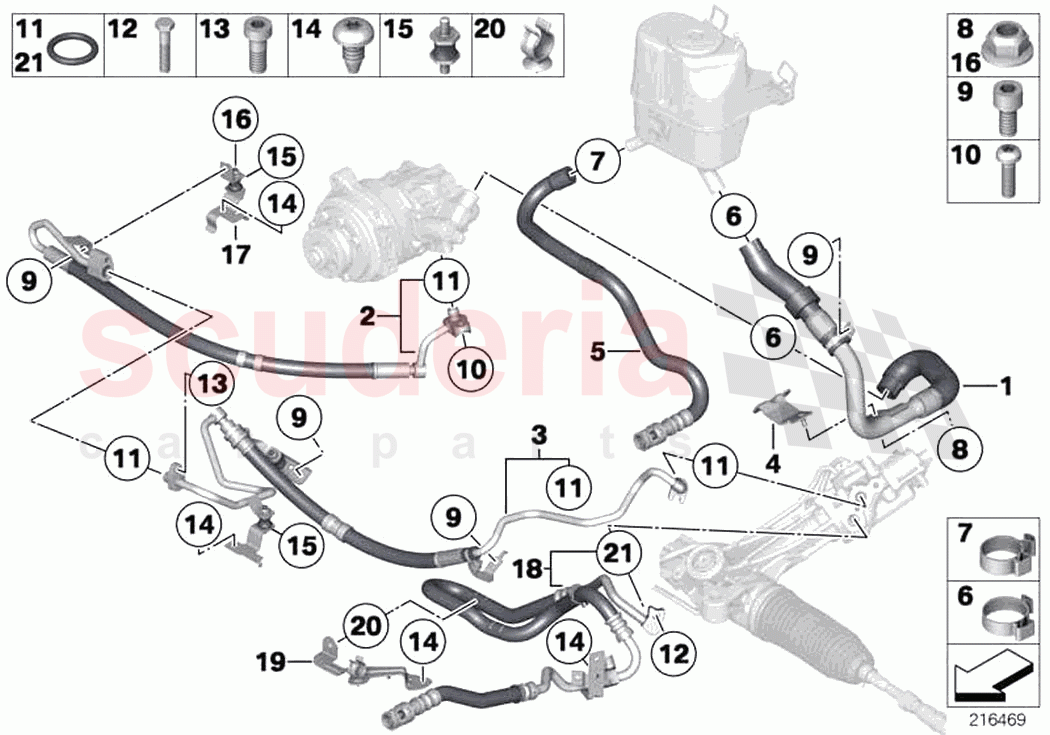

Rolls Royce Wraith RR5(2017-2023) - Hydro steering oil pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	32416850664	Suction pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416782509	Expansion hose 1st part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416795317	Expansion hose 2nd part	Enquire	To Order
	32416869228	Expansion hose 2nd part	Enquire	To Order
	32416869101	Expansion hose 2nd part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416782508	Holder, suction line, steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416795453	Radiator return line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416763470	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416751127	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905949	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905867	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416783049	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416788696	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902910	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904375	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146786689	Torx screw, self-tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416769256	Rubber mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416792820	Bracket, expansion hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416795316	Return pipe	Enquire	To Order
	32416798099	Return pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416792821	Holder, return line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11727511099	Hose clamp	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	32416850664	Suction pipe	32416850664 Suction pipe	-	1	Enquire
2	32416782509	Expansion hose 1st part	32416782509 Expansion hose 1st part PART 1	-	1	Enquire
3	32416795317	Expansion hose 2nd part	32416795317 Expansion hose 2nd part PART 2; from 04.2014	-	1	Enquire
3	32416869228	Expansion hose 2nd part	32416869228 Expansion hose 2nd part PART 2	-	1	Enquire
3	32416869101	Expansion hose 2nd part	32416869101 Expansion hose 2nd part PART 2	-	1	Enquire
4	32416782508	Holder, suction line, steering	32416782508 Holder, suction line, steering	-	1	Enquire
5	32416795453	Radiator return line	32416795453 Radiator return line	-	1	Enquire
6	32416763470	Hose clamp	32416763470 Hose clamp D= 25MM	-	2	Enquire
7	32416751127	Hose clamp	32416751127 Hose clamp	-	1	Enquire
8	7119905949	Hex nut with plate	7119905949 Hex nut with plate M6-8-ZNNIV SI	-	1	Enquire
9	7129905867	ISA screw	7129905867 ISA screw M6X12-8.8-ZNNIV	-	3	Enquire
10	32416783049	ISA screw	32416783049 ISA screw M8X25-10.9	-	1	Enquire
11	32416788696	O-ring	32416788696 O-ring 11X1,8 HNBR	-	3	Enquire
12	7119902910	Hex Bolt	7119902910 Hex Bolt M8X40-8.8-ZNS3	-	1	Enquire
13	7119904375	Fillister head screw	7119904375 Fillister head screw M8X20-8.8-ZNS3	-	1	Enquire
14	31146786689	Torx screw, self-tapping	31146786689 Torx screw, self-tapping M6X13-ZNNIVSI	-	4	Enquire
15	32416769256	Rubber mounting	32416769256 Rubber mounting H=17	-	3	Enquire
17	32416792820	Bracket, expansion hose	32416792820 Bracket, expansion hose	-	1	Enquire
18	32416795316	Return pipe	32416795316 Return pipe	-	1	Enquire
18	32416798099	Return pipe	32416798099 Return pipe	-	1	Enquire
19	32416792821	Holder, return line	32416792821 Holder, return line	-	1	Enquire
20	11727511099	Hose clamp	11727511099 Hose clamp	-	2	Enquire
