Frnt axle support wishbone tension strut of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

Rolls Royce Wraith RR5(2017-2023) - Frnt axle support wishbone tension strut

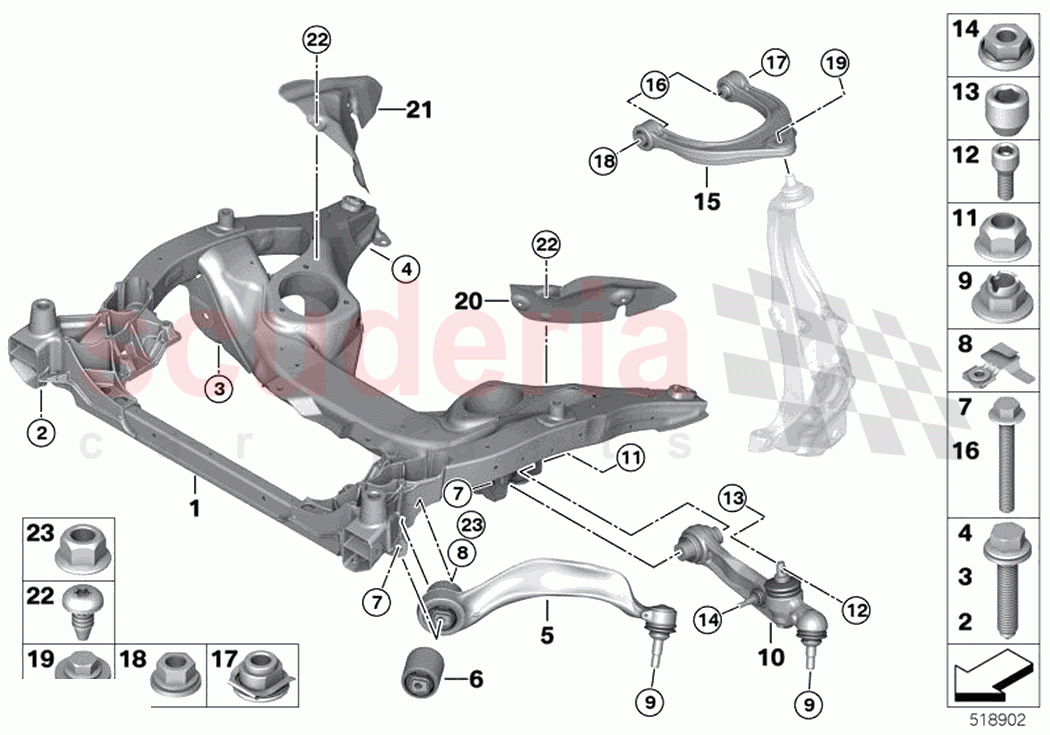

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	31106854625	Front axle support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106770256	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106760222	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31126775959	Tension strut with hydr. mount, left	Enquire	To Order
	31126876307	Tension strut with hydraulic mount, left	Enquire	To Order
	31126775960	Tension strut with hydr. mount, right	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	31126775145	Hydrobearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106872425	Clip nut, left	Enquire	To Order
	33306760349	Self-locking collar nut	Enquire	To Order
	31106872426	Clip nut, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146875114	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31126782181	Wishbone, bottom, with rubber mount left	Enquire	To Order
	31126782182	Wishbone, bottom,with rubber mount right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37116761553	Conical screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37116761554	Conical nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31356757707	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31126852998	Wishbone, top	Enquire	To Order
	31106853374	Control arm, camber correction, top	Enquire	To Order
	31106855319	Control arm, camber correction, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905418	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106866023	Clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760585	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106854530	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146782193	Heat protection plate left	Enquire	To Order
	31146788907	Heat protection plate left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146782194	Heat Protection Plate Right	Enquire	To Order
	31146788908	Heat Protection Plate Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146786689	Torx screw, self-tapping	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7147284477	Blind rivet nut, flat headed	7147284477 Blind rivet nut, flat headed M8 DMAX=20MM; to 09.2011	-	4	Enquire
-	33316767586	ASA screw with washer	33316767586 ASA screw with washer M14X127-10.9; 09.2011 - 01.2018	-	1	Enquire
-	31106783591	Clip nut, left	31106783591 Clip nut, left M14X1,5-10 ZNS3; 09.2011 - 01.2018	-	1	Enquire
-	31106799668	Hex nut with flange	31106799668 Hex nut with flange M16X1,5-10 ZNNI; 09.2011 - 01.2018	-	1	Enquire
-	31106783592	Clip nut, right	31106783592 Clip nut, right M14X1,5-10 ZNS3; 09.2011 - 01.2018	-	1	Enquire
1	31106854625	Front axle support	31106854625 Front axle support to 09.2011	-	1	Enquire
2	31106770256	Hexagon screw with flange	31106770256 Hexagon screw with flange M12X1,5X65-10.9; to 09.2011	-	2	Enquire
3	31106760222	Hexagon screw with flange	31106760222 Hexagon screw with flange M12X1,5X95-ZNS3; to 09.2011	-	2	Enquire
5	31126775959	Tension strut with hydr. mount, left	31126775959 Tension strut with hydr. mount, left 09.2011 - 01.2018	-	1	Enquire
5	31126876307	Tension strut with hydraulic mount, left	31126876307 Tension strut with hydraulic mount, left to 01.2018	-	1	Enquire
5	31126775960	Tension strut with hydr. mount, right	31126775960 Tension strut with hydr. mount, right 09.2011 - 01.2018	-	1	Enquire
5	31126876308	Tension strut with hydraulic mount, right	31126876308 Tension strut with hydraulic mount, right to 01.2018	-	1	Enquire
6	31126775145	Hydrobearing	31126775145 Hydrobearing 09.2011 - 01.2018	-	2	Enquire
8	31106872425	Clip nut, left	31106872425 Clip nut, left 08.2015 - 04.2022	-	1	Enquire
8	33306760349	Self-locking collar nut	33306760349 Self-locking collar nut M14X1,5-10 ZNS3; 08.2015 - 04.2022	-	1	Enquire
8	31106872426	Clip nut, right	31106872426 Clip nut, right 08.2015 - 04.2022	-	1	Enquire
9	7146875114	Hexagon nut with collar	7146875114 Hexagon nut with collar M16X1.5 ZNNIV; to 09.2011	-	4	Enquire
10	31126782181	Wishbone, bottom, with rubber mount left	31126782181 Wishbone, bottom, with rubber mount left to 09.2011	-	1	Enquire
10	31126782182	Wishbone, bottom,with rubber mount right	31126782182 Wishbone, bottom,with rubber mount right to 09.2011	-	1	Enquire
12	37116761553	Conical screw	37116761553 Conical screw to 09.2011	-	2	Enquire
13	37116761554	Conical nut	37116761554 Conical nut to 09.2011	-	2	Enquire
14	31356757707	Hex nut with plate	31356757707 Hex nut with plate M10 ZNS3; to 09.2011	-	2	Enquire
15	31126852998	Wishbone, top	31126852998 Wishbone, top to 09.2011	-	2	Enquire
15	31106853374	Control arm, camber correction, top	31106853374 Control arm, camber correction, top +30MIN; to 09.2011	-	2	Enquire
15	31106855319	Control arm, camber correction, top	31106855319 Control arm, camber correction, top -30MIN; to 09.2011	-	2	Enquire
16	7119905418	Hex Bolt with washer	7119905418 Hex Bolt with washer M10X80-U1-10.9; to 09.2011	-	4	Enquire
17	31106866023	Clip nut	31106866023 Clip nut M10-10 ZNS3; to 09.2011	-	2	Enquire
18	33306760585	Combination nut	33306760585 Combination nut M10-10 ZNS3; to 09.2011	-	2	Enquire
19	31106854530	Hex Bolt with washer	31106854530 Hex Bolt with washer M10X1X20-10.9; to 09.2011	-	2	Enquire
20	31146782193	Heat protection plate left	31146782193 Heat protection plate left to 09.2011	-	1	Enquire
20	31146788907	Heat protection plate left	31146788907 Heat protection plate left to 09.2011	-	1	Enquire
21	31146782194	Heat Protection Plate Right	31146782194 Heat Protection Plate Right to 09.2011	-	1	Enquire
21	31146788908	Heat Protection Plate Right	31146788908 Heat Protection Plate Right to 09.2011	-	1	Enquire
22	31146786689	Torx screw, self-tapping	31146786689 Torx screw, self-tapping M6X13-ZNNIVSI; to 09.2011	-	7	Enquire
