Name: Mounting parts f radiator
Rating: 4.5 (1 reviews)

View All

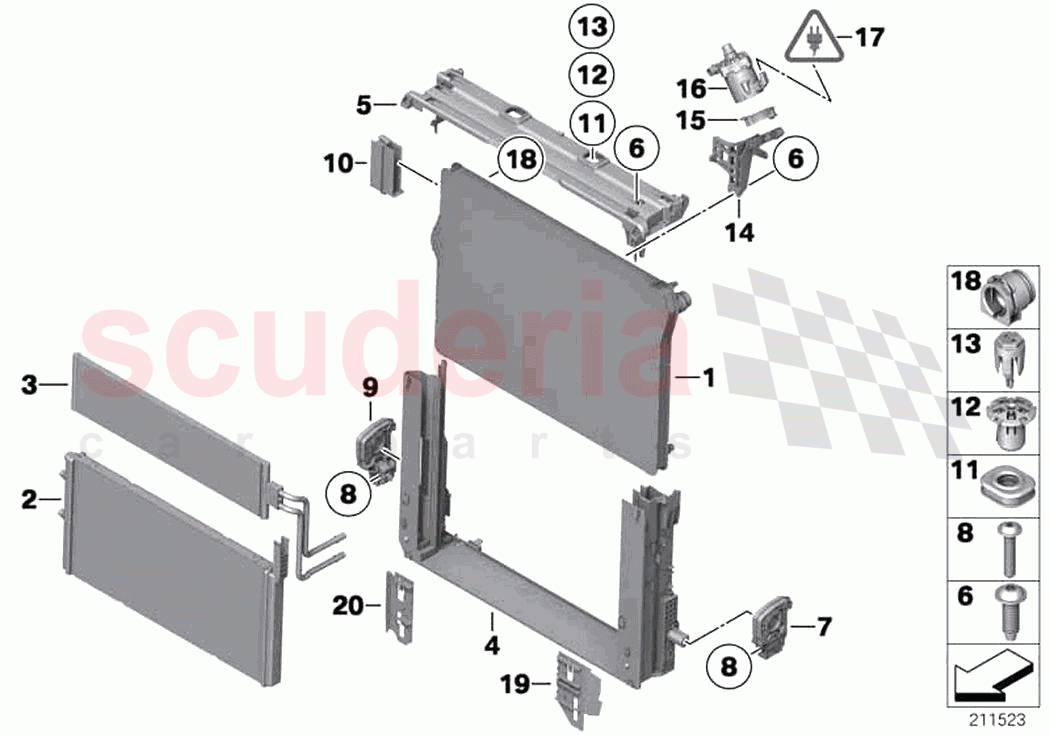

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17118669004	Radiator	$897.41	To Order

Photo	Part No	Description	Price (each)	Stock
	17117601832	Radiator	$807.67	To Order

Photo	Part No	Description	Price (each)	Stock
	17217583843	Power steering cooler	$237.19	To Order

Photo	Part No	Description	Price (each)	Stock
	17117605407	Module carrier	$300.89	To Order

Photo	Part No	Description	Price (each)	Stock
	17117573265	cover, module carrier	$87.89	To Order

Photo	Part No	Description	Price (each)	Stock
	17117536971	Screw, self tapping	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	17117575247	Holder, module, left	$33.67	To Order

Photo	Part No	Description	Price (each)	Stock
	17117596108	Fillister head screw	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	17118660687	Holder, module, right	$72.85	To Order

Photo	Part No	Description	Price (each)	Stock
	17117583841	Adapter, module carrier	$13.01	To Order

Photo	Part No	Description	Price (each)	Stock
	17117602064	Module mounting	$17.12	To Order

Photo	Part No	Description	Price (each)	Stock
	17117575392	Plug	$3.62	To Order

Photo	Part No	Description	Price (each)	Stock
	17117595701	Clip	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	17117603070	Bracket additional water pump	$53.78	To Order

Photo	Part No	Description	Price (each)	Stock
	17117575389	Support	$9.32	To Order

Photo	Part No	Description	Price (each)	Stock
	11517566335	Auxiliary Water Pump	$501.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11531439134	Blind plug	$9.95	To Order

Photo	Part No	Description	Price (each)	Stock
	17117589525	Holder, module bracket	$26.93	To Order

Photo	Part No	Description	Price (each)	Stock
	17117589524	Holder, module bracket	$28.27	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	17118669004	Radiator	17118669004 Radiator	$897.41	1
2	17117601832	Radiator	17117601832 Radiator	$807.67	1
3	17217583843	Power steering cooler	17217583843 Power steering cooler	$237.19	1
4	17117605407	Module carrier	17117605407 Module carrier	$300.89	1
5	17117573265	cover, module carrier	17117573265 cover, module carrier	$87.89	1
6	17117536971	Screw, self tapping	17117536971 Screw, self tapping D6X20 ZNS3	$1.05	9
7	17117575247	Holder, module, left	17117575247 Holder, module, left	$33.67	1
8	17117596108	Fillister head screw	17117596108 Fillister head screw M6X30	$1.22	2
9	17118660687	Holder, module, right	17118660687 Holder, module, right	$72.85	1
10	17117583841	Adapter, module carrier	17117583841 Adapter, module carrier	$13.01	1
11	17117602064	Module mounting	17117602064 Module mounting	$17.12	2
12	17117575392	Plug	17117575392 Plug	$3.62	2
13	17117595701	Clip	17117595701 Clip	$1.97	2
14	17117603070	Bracket additional water pump	17117603070 Bracket additional water pump	$53.78	1
15	17117575389	Support	17117575389 Support	$9.32	1
16	11517566335	Auxiliary Water Pump	11517566335 Auxiliary Water Pump	$501.27	1
18	11531439134	Blind plug	11531439134 Blind plug D=12	$9.95	1
19	17117589525	Holder, module bracket	17117589525 Holder, module bracket	$26.93	1
20	17117589524	Holder, module bracket	17117589524 Holder, module bracket	$28.27	1
