Fuel Pipe And Mounting Parts

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Fuel Pipe and Mounting Parts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16127204356 Scavenging line front $165.46 To Order
Photo Part No Description Price (each) Stock
16127204357 Feed line, front $307.03 To Order
Photo Part No Description Price (each) Stock
16127305150 Scavenge air line $126.61 To Order
Photo Part No Description Price (each) Stock
16127305147 Feed line, rear $213.66 To Order
Photo Part No Description Price (each) Stock
16127199667 Pipe clip $16.94 To Order
Photo Part No Description Price (each) Stock
7129901130 ISA screw $1.11 To Order
Photo Part No Description Price (each) Stock
16127199665 Line clip, triple $2.93 To Order
Photo Part No Description Price (each) Stock
16127213370 Line clip, triple $3.86 To Order
Photo Part No Description Price (each) Stock
16127202598 Spacer $8.18 To Order
Photo Part No Description Price (each) Stock
16127202597 Spacer $7.65 To Order
Photo Part No Description Price (each) Stock
16126766397 Pipe clip $2.33 To Order
Photo Part No Description Price (each) Stock
61137838241 Toothed ring $5.22 To Order
View All

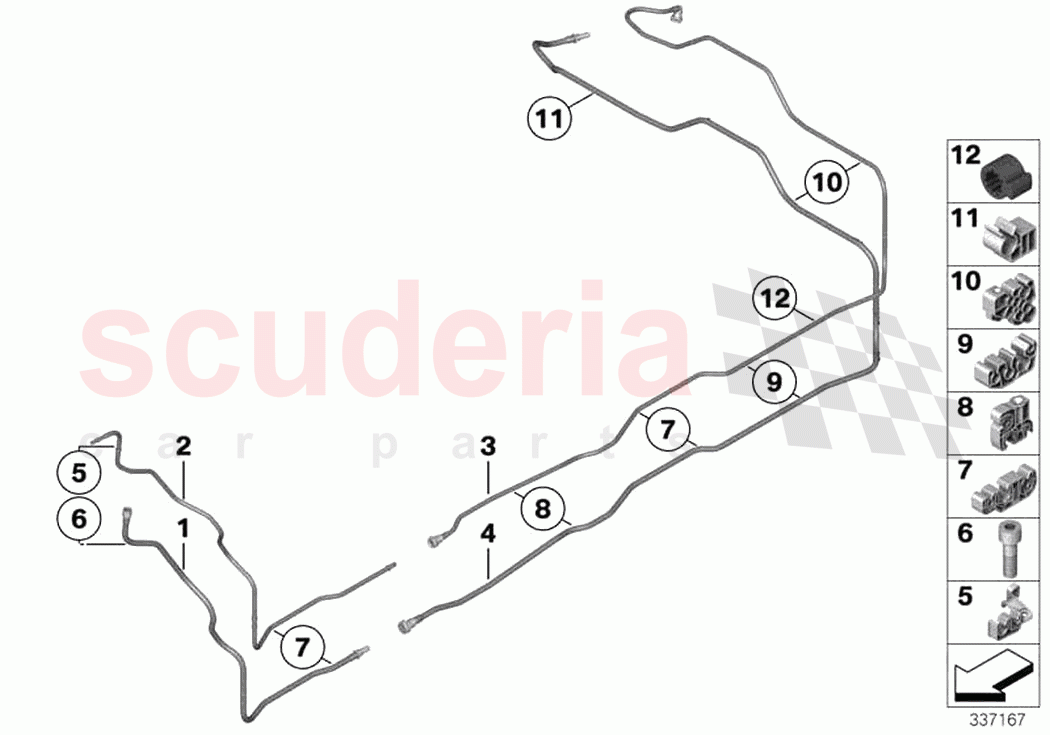

Fuel Pipe and Mounting Parts of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16127204356
Scavenging line front 		$165.46 1
2 16127204357
Feed line, front 		$307.03 1
3 16127305150
Scavenge air line 		$126.61 1
4 16127305147
Feed line, rear 		$213.66 1
5 16127199667
Pipe clip 		$16.94 1
6 7129901130
ISA screw
M6X20-8.8-ZNNIV 		$1.11 1
7 16127199665
Line clip, triple 		$2.93 7
8 16127213370
Line clip, triple 		$3.86 1
9 16127202598
Spacer 		$8.18 1
10 16127202597
Spacer 		$7.65 2
11 16126766397
Pipe clip
D14 		$2.33 3
12 61137838241
Toothed ring 		$5.22 1
