High pressure rail injector line of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

Rolls Royce Wraith RR5(2017-2023) - High pressure rail injector line

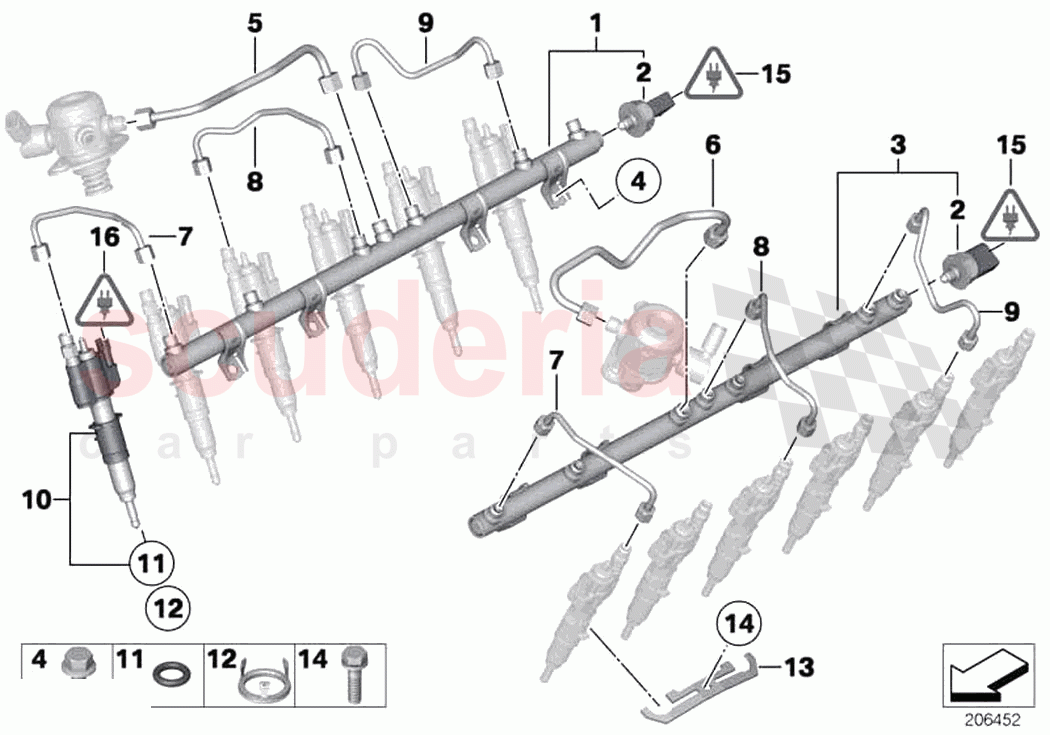

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13538648630	Injection tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537537319	Sensor, high-pressure	Enquire	To Order
	13537620946	Sensor, high-pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905926	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537560542	High pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537560543	High pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537560541	High pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537564506	High pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537584369	High pressure pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13538616079	Injector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13537584315	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13538651060	Decoupling element	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13647598000	Bracket injector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906642	Hex Bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	13538643665	Sensor, high-pressure	13538643665 Sensor, high-pressure from 07.2015	-	1	Enquire
-	13537560539	Injection tube	13537560539 Injection tube 1-6	-	-	Enquire
-	13537560540	Injection tube	13537560540 Injection tube 7-12	-	-	Enquire
-	13538625029	Injection tube	13538625029 Injection tube 1-6	-	-	Enquire
-	13538625030	Injection tube	13538625030 Injection tube 7-12	-	-	Enquire
-	13538648631	Injection tube	13538648631 Injection tube 7-12; to 07.2015	-	-	Enquire
-	13537564751	Decoupling element	13537564751 Decoupling element	-	12	Enquire
1	13538648630	Injection tube	13538648630 Injection tube 1-6; from 07.2015	-	1	Enquire
2	13537537319	Sensor, high-pressure	13537537319 Sensor, high-pressure from 05.2014	-	2	Enquire
2	13537620946	Sensor, high-pressure	13537620946 Sensor, high-pressure 05.2014 - 07.2015	-	2	Enquire
4	7119905926	Hex Bolt with washer	7119905926 Hex Bolt with washer M7X16-U1	-	8	Enquire
5	13537560542	High pressure pipe	13537560542 High pressure pipe 1-6	-	1	Enquire
6	13537560543	High pressure pipe	13537560543 High pressure pipe 7-12	-	1	Enquire
7	13537560541	High pressure pipe	13537560541 High pressure pipe	-	8	Enquire
8	13537564506	High pressure pipe	13537564506 High pressure pipe ZYL. 3+9	-	2	Enquire
9	13537584369	High pressure pipe	13537584369 High pressure pipe ZYL. 5+11	-	2	Enquire
10	13538616079	Injector	13538616079 Injector	-	12	Enquire
11	13537584315	Gasket ring	13537584315 Gasket ring	-	12	Enquire
12	13538651060	Decoupling element	13538651060 Decoupling element from 05.2020	-	12	Enquire
13	13647598000	Bracket injector	13647598000 Bracket injector	-	6	Enquire
14	7119906642	Hex Bolt with washer	7119906642 Hex Bolt with washer M7X20-U1	-	6	Enquire
