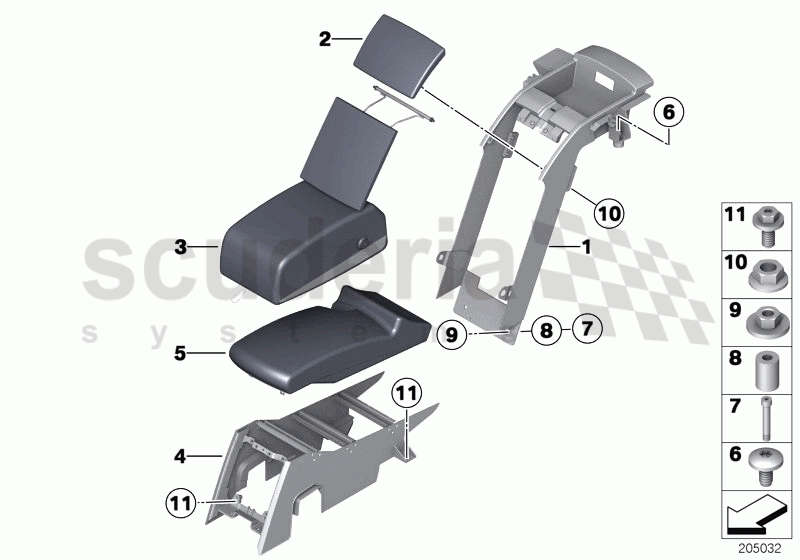

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52209196806	Console, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51429188264	Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51429188261	Armrest rear, MTC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209196807	Console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51429188263	Cushion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122216	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207229399	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207229398	Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207065538	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905710	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41618256853	Hex Bolt with washer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52209196806	Console, upper	52209196806 Console, upper QUOTE COLOUR	-	-	Enquire
2	51429188264	Lid	51429188264 Lid UPPER	-	-	Enquire
3	51429188261	Armrest rear, MTC	51429188261 Armrest rear, MTC QUOTE COLOUR	-	-	Enquire
4	52209196807	Console	52209196807 Console QUOTE COLOUR	-	-	Enquire
5	51429188263	Cushion	51429188263 Cushion UPPER	-	-	Enquire
6	7147122216	Fillister head screw	7147122216 Fillister head screw ISA M6X12 ZNNID	-	-	Enquire
7	52207229399	Pin	52207229399 Pin	-	-	Enquire
8	52207229398	Bushing	52207229398 Bushing	-	-	Enquire
9	52207065538	Hex nut with plate	52207065538 Hex nut with plate M8	-	-	Enquire
10	7119905710	Hex nut	7119905710 Hex nut M5	-	-	Enquire
11	41618256853	Hex Bolt with washer	41618256853 Hex Bolt with washer M8X20	-	-	Enquire
