Hydro steering, oil reserv./oil pipes of Rolls Royce Rolls Royce Phantom Drophead Coupe

View All

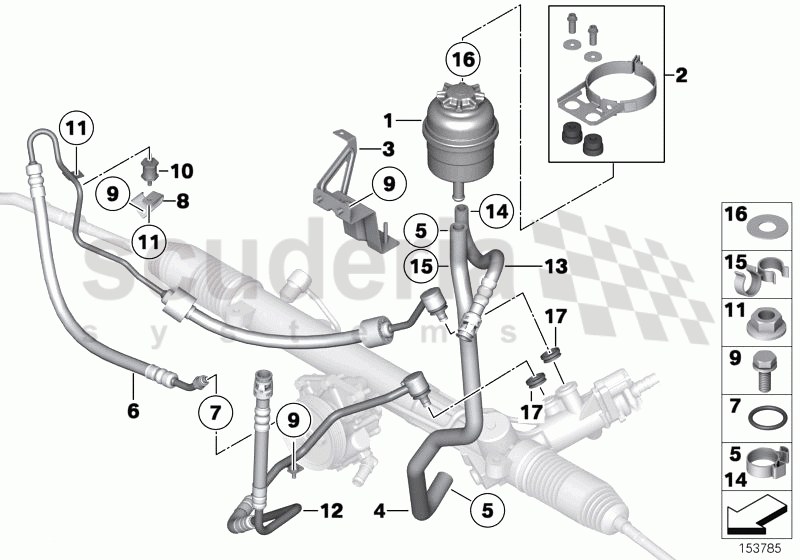

Rolls Royce Phantom Drophead Coupe - Hydro steering, oil reserv./oil pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

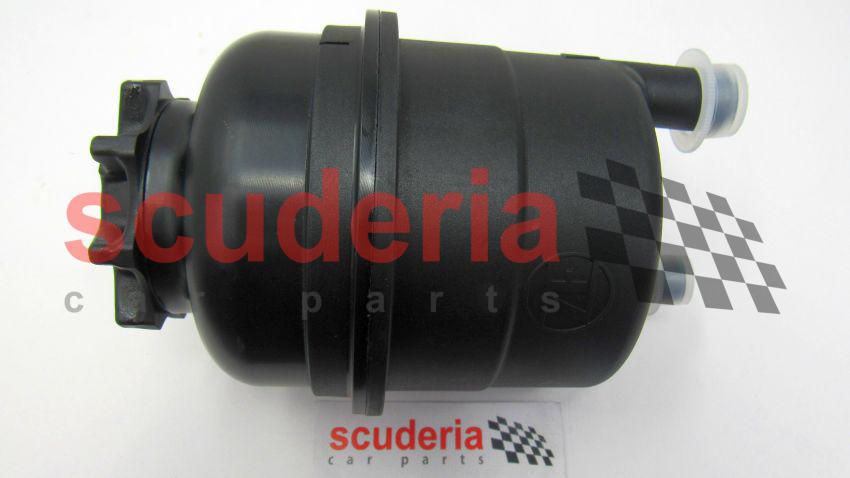

	32416757431	OIL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32410149387	Bracket,oil reserv.with mounting parts	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416771973	Body bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416759775	Suction pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416751127	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416779870	Expansion hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64508390601	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416761869	Bracket, expansion hose	Enquire	To Order
	32416781787	Bracket, expansion hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904524	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416778960	Vibration damper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119900560	Self-locking hex nut	Enquire	To Order
	7119905949	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416764931	Return pipe	Enquire	To Order
	32416852247	Return pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416759780	Radiator return line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416751128	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17127527243	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	71246766638	Label, oil container-power steering pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416754986	Repair kit for FCD-coupling	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	32416757431	OIL CARRIER	32416757431 OIL CARRIER	-	-	Enquire
2	32410149387	Bracket,oil reserv.with mounting parts	32410149387 Bracket,oil reserv.with mounting parts	-	-	Enquire
3	32416771973	Body bracket	32416771973 Body bracket	-	-	Enquire
4	32416759775	Suction pipe	32416759775 Suction pipe	-	-	Enquire
5	32416751127	Hose clamp	32416751127 Hose clamp	-	-	Enquire
6	32416779870	Expansion hose	32416779870 Expansion hose	-	-	Enquire
7	64508390601	Gasket ring	64508390601 Gasket ring D=7,65MM	-	-	Enquire
8	32416761869	Bracket, expansion hose	32416761869 Bracket, expansion hose	-	-	Enquire
8	32416781787	Bracket, expansion hose	32416781787 Bracket, expansion hose	-	-	Enquire
9	7119904524	Hex Bolt with washer	7119904524 Hex Bolt with washer M6X16-U1-8.8	-	-	Enquire
10	32416778960	Vibration damper	32416778960 Vibration damper H=25	-	-	Enquire
11	7119900560	Self-locking hex nut	7119900560 Self-locking hex nut M6-ZNS	-	-	Enquire
11	7119905949	Hex nut with plate	7119905949 Hex nut with plate M6-8-ZNNIV SI	-	-	Enquire
12	32416764931	Return pipe	32416764931 Return pipe	-	-	Enquire
12	32416852247	Return pipe	32416852247 Return pipe	-	-	Enquire
13	32416759780	Radiator return line	32416759780 Radiator return line	-	-	Enquire
14	32416751128	Hose clamp	32416751128 Hose clamp	-	-	Enquire
15	17127527243	Hose clamp	17127527243 Hose clamp	-	-	Enquire
16	71246766638	Label, oil container-power steering pump	71246766638 Label, oil container-power steering pump	-	-	Enquire
17	32416754986	Repair kit for FCD-coupling	32416754986 Repair kit for FCD-coupling	-	-	Enquire
