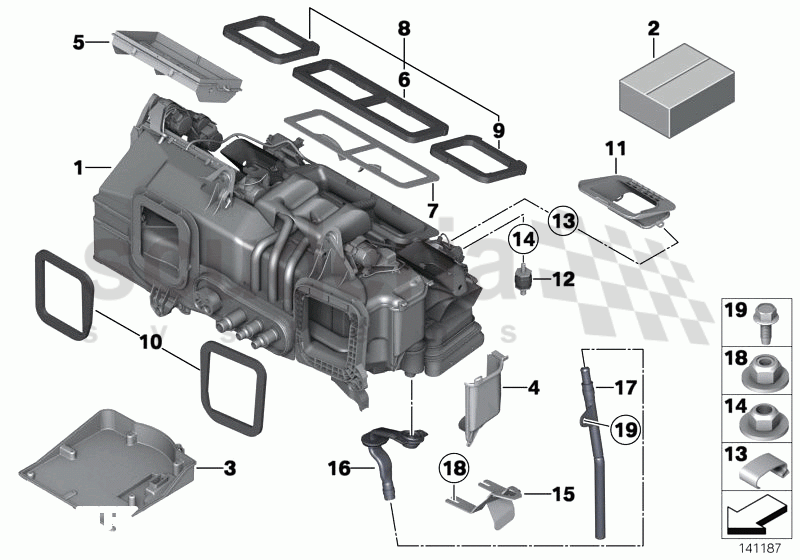

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64116918874	Empty housing for heater/air condit.unit	Enquire	To Order
	64116918875	Empty housing for heater/air condit.unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64116904919	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64110153611	Air duct frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64116904920	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32416778960	Vibration damper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64111370938	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904870	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64110010700	Condensation water outlet hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64110010690	Condensation water outlet hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147153450	Self-locking hex nut	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64116918874	Empty housing for heater/air condit.unit	64116918874 Empty housing for heater/air condit.unit	-	-	Enquire
1	64116918875	Empty housing for heater/air condit.unit	64116918875 Empty housing for heater/air condit.unit	-	-	Enquire
3	64116913403	Cover blower	64116913403 Cover blower	-	-	Enquire
3	64116913404	Cover blower	64116913404 Cover blower	-	-	Enquire
6	64116904919	Gasket	64116904919 Gasket	-	-	Enquire
7	64110153611	Air duct frame	64110153611 Air duct frame	-	-	Enquire
9	64116904920	Gasket	64116904920 Gasket	-	-	Enquire
11	64116912537	DEFROSTER NOZZLE LEFT	64116912537 DEFROSTER NOZZLE LEFT	-	-	Enquire
11	64116912538	Defroster nozzle right	64116912538 Defroster nozzle right	-	-	Enquire
12	32416778960	Vibration damper	32416778960 Vibration damper H=25	-	-	Enquire
13	64111370938	Clamp	64111370938 Clamp	-	-	Enquire
14	7129904870	Hex nut	7129904870 Hex nut BM6-8-ZNS3	-	-	Enquire
15	64117052047	Bracket, left	64117052047 Bracket, left	-	-	Enquire
15	64117052048	Bracket, right	64117052048 Bracket, right	-	-	Enquire
16	64110010700	Condensation water outlet hose	64110010700 Condensation water outlet hose	-	-	Enquire
17	64110010690	Condensation water outlet hose	64110010690 Condensation water outlet hose	-	-	Enquire
18	7147153450	Self-locking hex nut	7147153450 Self-locking hex nut M6	-	-	Enquire
