Timing Chain, Cylinders 1-6

Rolls Royce Phantom Drophead Coupe

Find Your Part

Rolls Royce Phantom Drophead Coupe - Timing chain, cylinders 1-6

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11311439853 TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
11211438839 Sprocket Enquire To Order
Photo Part No Description Price (each) Stock
7119951453 Woodruff key Enquire To Order
Photo Part No Description Price (each) Stock
11367518227 Adjustment unit, inlet camshaft Enquire To Order
Photo Part No Description Price (each) Stock
11367526907 Adjustment unit, outlet camshaft Enquire To Order
Photo Part No Description Price (each) Stock
11367501423 Central screw Enquire IN STOCK
Photo Part No Description Price (each) Stock
11317504451 GUIDE RAIL Enquire To Order
Photo Part No Description Price (each) Stock
11317500150 Bearing screw Enquire To Order
Photo Part No Description Price (each) Stock
11317504455 Torx bolt Enquire To Order
Photo Part No Description Price (each) Stock
11317504440 CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
11317504492 Bearing screw Enquire To Order
Photo Part No Description Price (each) Stock
11411722837 O-ring Enquire To Order
Photo Part No Description Price (each) Stock
11317525387 CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
11317507432 Gasket ring Enquire To Order
Photo Part No Description Price (each) Stock
11311439556 Slide rail Enquire To Order
Photo Part No Description Price (each) Stock
11317501735 Gasket Asbestos Free Enquire To Order
Photo Part No Description Price (each) Stock
11317527593 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7119902063 Hex Bolt with washer Enquire To Order
View All

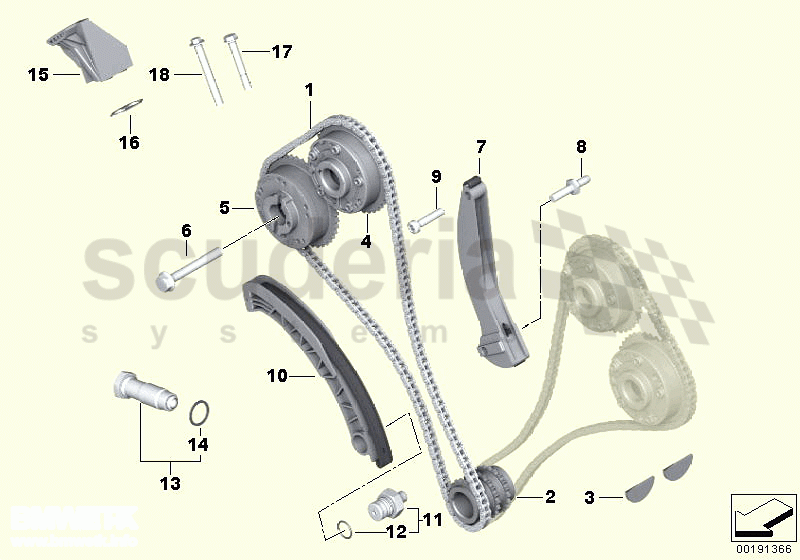

Timing chain, cylinders 1-6 of Rolls Royce Rolls Royce Phantom Drophead Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11311439853
TIMING CHAIN 		- - Enquire
2 11211438839
Sprocket 		- - Enquire
3 7119951453
Woodruff key
4X5 		- - Enquire
4 11367518227
Adjustment unit, inlet camshaft 		- - Enquire
5 11367526907
Adjustment unit, outlet camshaft 		- - Enquire
6 11367501423
Central screw
M10X1X75
IN STOCK 		- - Enquire
7 11317504451
GUIDE RAIL 		- - Enquire
8 11317500150
Bearing screw 		- - Enquire
9 11317504455
Torx bolt
M8X38 		- - Enquire
10 11317504440
CHAIN TENSIONER 		- - Enquire
11 11317504492
Bearing screw 		- - Enquire
12 11411722837
O-ring
17,0X1,8MM 		- - Enquire
13 11317525387
CHAIN TENSIONER 		- - Enquire
14 11317507432
Gasket ring
A22X27 		- - Enquire
15 11311439556
Slide rail 		- - Enquire
16 11317501735
Gasket Asbestos Free 		- - Enquire
17 11317527593
Hex Bolt
M8X58 		- - Enquire
18 7119902063
Hex Bolt with washer
M6X70-Z1-PHR 		- - Enquire
