SIDE PANEL/TAIL TRIM of Rolls Royce Rolls Royce Phantom Drophead Coupe

View All

Rolls Royce Phantom Drophead Coupe - SIDE PANEL/TAIL TRIM

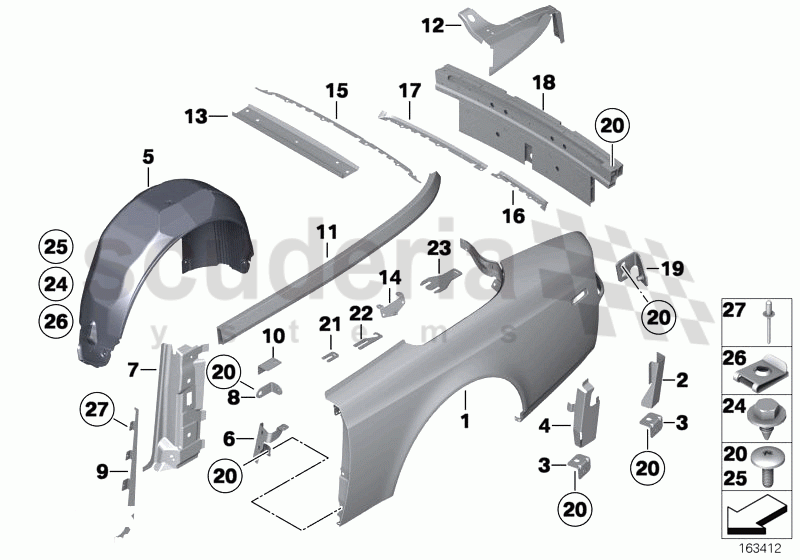

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41217138237	LEFT REAR SIDE PANEL	Enquire	To Order
	41217138238	RIGHT REAR SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357137935	Side panel bracket, rear left 2	Enquire	To Order
	41357137936	Side panel bracket, rear right 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357116276	FENDER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357137933	Side panel bracket, rear left 1	Enquire	To Order
	41357137934	Side panel bracket, rear right 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117174131	Cover, wheel housing, rear left	Enquire	To Order
	51117174132	Cover, wheel housing, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138233	Side panel bracket, front left 4	Enquire	To Order
	41217138234	Side panel bracket, front right 4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217118567	Column B exterior, left	Enquire	To Order
	41217118568	Column B exterior, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138236	Holder, side panel, B-pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007118571	Seal flange, column B left	Enquire	To Order
	41007118572	Seal flange, column B right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217201891	Bracket, lateral trim panel, left	Enquire	To Order
	41217201892	Bracket, lateral trim panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117138221	Frame side member, side panel, left	Enquire	To Order
	41117138222	Frame side member, side panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357206617	End plate, side panel, rear left	Enquire	To Order
	41357206618	End plate, side panel, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41317137945	Drip moulding, rear middle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51177180154	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41347138205	Shim plate, rear trim panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007138203	LEFT TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357138204	RIGHT TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41347138206	TAIL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138239	Holder, side panel, rear left 3	Enquire	To Order
	41217138240	Holder, side panel, rear right 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order
	7147075867	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217138241	Spacer plate	Enquire	To Order
	41217138242	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217079533	Spacer plate	Enquire	To Order
	41217079534	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41127138215	Spacer plate	Enquire	To Order
	41127138216	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147129161	Hex head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146986937	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904227	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107042164	Blind rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41217138237	LEFT REAR SIDE PANEL	41217138237 LEFT REAR SIDE PANEL	-	-	Enquire
1	41217138238	RIGHT REAR SIDE PANEL	41217138238 RIGHT REAR SIDE PANEL	-	-	Enquire
2	41357137935	Side panel bracket, rear left 2	41357137935 Side panel bracket, rear left 2	-	-	Enquire
2	41357137936	Side panel bracket, rear right 2	41357137936 Side panel bracket, rear right 2	-	-	Enquire
3	41357116276	FENDER BRACKET	41357116276 FENDER BRACKET	-	-	Enquire
4	41357137933	Side panel bracket, rear left 1	41357137933 Side panel bracket, rear left 1	-	-	Enquire
4	41357137934	Side panel bracket, rear right 1	41357137934 Side panel bracket, rear right 1	-	-	Enquire
5	51117174131	Cover, wheel housing, rear left	51117174131 Cover, wheel housing, rear left	-	-	Enquire
5	51117174132	Cover, wheel housing, rear right	51117174132 Cover, wheel housing, rear right	-	-	Enquire
6	41217138233	Side panel bracket, front left 4	41217138233 Side panel bracket, front left 4	-	-	Enquire
6	41217138234	Side panel bracket, front right 4	41217138234 Side panel bracket, front right 4	-	-	Enquire
7	41217118567	Column B exterior, left	41217118567 Column B exterior, left	-	-	Enquire
7	41217118568	Column B exterior, right	41217118568 Column B exterior, right	-	-	Enquire
8	41217138236	Holder, side panel, B-pillar	41217138236 Holder, side panel, B-pillar	-	-	Enquire
9	41007118571	Seal flange, column B left	41007118571 Seal flange, column B left	-	-	Enquire
9	41007118572	Seal flange, column B right	41007118572 Seal flange, column B right	-	-	Enquire
10	41217201891	Bracket, lateral trim panel, left	41217201891 Bracket, lateral trim panel, left	-	-	Enquire
10	41217201892	Bracket, lateral trim panel, right	41217201892 Bracket, lateral trim panel, right	-	-	Enquire
11	41117138221	Frame side member, side panel, left	41117138221 Frame side member, side panel, left	-	-	Enquire
11	41117138222	Frame side member, side panel, right	41117138222 Frame side member, side panel, right	-	-	Enquire
12	41357206617	End plate, side panel, rear left	41357206617 End plate, side panel, rear left	-	-	Enquire
12	41357206618	End plate, side panel, rear right	41357206618 End plate, side panel, rear right	-	-	Enquire
13	41317137945	Drip moulding, rear middle	41317137945 Drip moulding, rear middle	-	-	Enquire
14	51177180154	Bracket	51177180154 Bracket	-	-	Enquire
15	41347138205	Shim plate, rear trim panel	41347138205 Shim plate, rear trim panel	-	-	Enquire
16	41007138203	LEFT TAIL TRIM	41007138203 LEFT TAIL TRIM	-	-	Enquire
17	41357138204	RIGHT TAIL TRIM	41357138204 RIGHT TAIL TRIM	-	-	Enquire
18	41347138206	TAIL TRIM	41347138206 TAIL TRIM	-	-	Enquire
19	41217138239	Holder, side panel, rear left 3	41217138239 Holder, side panel, rear left 3	-	-	Enquire
19	41217138240	Holder, side panel, rear right 3	41217138240 Holder, side panel, rear right 3	-	-	Enquire
20	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
20	7147075867	Torx bolt	7147075867 Torx bolt ISA M6X22	-	-	Enquire
21	41217138241	Spacer plate	41217138241 Spacer plate 1,5MM	-	-	Enquire
21	41217138242	Spacer plate	41217138242 Spacer plate 0,5MM	-	-	Enquire
22	41217079533	Spacer plate	41217079533 Spacer plate 0,5MM	-	-	Enquire
22	41217079534	Spacer plate	41217079534 Spacer plate 10MM	-	-	Enquire
23	41127138215	Spacer plate	41127138215 Spacer plate 0,5MM	-	-	Enquire
23	41127138216	Spacer plate	41127138216 Spacer plate 10MM	-	-	Enquire
24	7147129161	Hex head screw	7147129161 Hex head screw ST 4.8X18	-	-	Enquire
25	7146986937	Torx bolt	7146986937 Torx bolt ISA M6X15	-	-	Enquire
26	7129904227	Body nut	7129904227 Body nut ST 4,8-8-ZNS	-	-	Enquire
27	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	-	-	Enquire
