Name: REAR AXLE SUPPORT/WHEEL SUSPENSION
Rating: 5.0 (1 reviews)

REAR AXLE SUPPORT/WHEEL SUSPENSION of Rolls Royce Rolls Royce Phantom Coupe

View All

Rolls Royce Phantom Coupe - REAR AXLE SUPPORT/WHEEL SUSPENSION

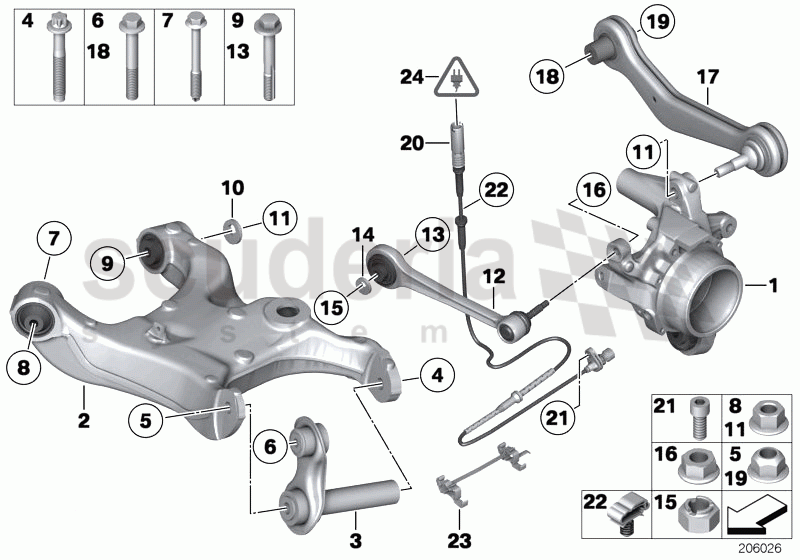

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33326777791	Wheel carrier, rear left	$1,857.24	To Order
	33326777792	Wheel carrier, rear right	$1,857.24	To Order

Photo	Part No	Description	Price (each)	Stock
	33326758995	LEFT SWING PART	$943.34	IN STOCK
	33326758996	RIGHT SWING PART	$943.34	IN STOCK
	33326770755	LEFT SWING PART	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	33326770761	INTEGRAL LINK	$181.72	To Order

Photo	Part No	Description	Price (each)	Stock
	33306767587	Torx screw	$55.88	To Order

Photo	Part No	Description	Price (each)	Stock
	33306793897	Self-locking collar nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326763463	Hex Bolt with washer	$8.24	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760347	Hex Bolt with washer	$10.95	To Order

Photo	Part No	Description	Price (each)	Stock
	33326760668	Self-locking collar nut	$2.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33326779785	Eccentric bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306786187	Eccentric flat washer	$4.11	To Order

Photo	Part No	Description	Price (each)	Stock
	31106768886	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326777424	Guiding suspension link w rubber mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760591	ECCENTRIC BOLT	$19.03	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760592	Eccentric flat washer	$6.11	To Order

Photo	Part No	Description	Price (each)	Stock
	33326768900	Self-locking hex nut	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760587	Hex nut with flange	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	33326770757	Wishbone, left	$868.51	To Order
	33326770758	Right wishbone	$1,011.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33306760391	Hexagon collar screw	$12.23	To Order

Photo	Part No	Description	Price (each)	Stock
	33326760374	Self-locking collar nut	$5.68	To Order

Photo	Part No	Description	Price (each)	Stock
	34526771713	Pulse generator	$171.55	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904105	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34521164653	Tubing support	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34526759888	Clip	$4.80	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	33326777791	Wheel carrier, rear left	33326777791 Wheel carrier, rear left	$1,857.24	-
1	33326777792	Wheel carrier, rear right	33326777792 Wheel carrier, rear right	$1,857.24	-
2	33326758995	LEFT SWING PART IN STOCK	33326758995 LEFT SWING PART IN STOCK	$943.34	-
2	33326758996	RIGHT SWING PART IN STOCK	33326758996 RIGHT SWING PART IN STOCK	$943.34	-
2	33326770755	LEFT SWING PART	33326770755 LEFT SWING PART	-	-	Enquire
2	33326770756	RIGHT SWING PART	33326770756 RIGHT SWING PART	-	-	Enquire
3	33326770761	INTEGRAL LINK	33326770761 INTEGRAL LINK	$181.72	-
4	33306767587	Torx screw	33306767587 Torx screw M16X280 ZNS3	$55.88	-
5	33306793897	Self-locking collar nut	33306793897 Self-locking collar nut M16X1,5-10 ZNNI	-	-	Enquire
6	33326763463	Hex Bolt with washer	33326763463 Hex Bolt with washer M12X1,5X67 ZNS3	$8.24	-
7	33306760347	Hex Bolt with washer	33306760347 Hex Bolt with washer M12X1,5X108ZNS3	$10.95	-
8	33326760668	Self-locking collar nut IN STOCK	33326760668 Self-locking collar nut M12X1,5-10 ZNS3 IN STOCK	$2.14	-
9	33326779785	Eccentric bolt	33326779785 Eccentric bolt M14X105-10.9	-	-	Enquire
10	33306786187	Eccentric flat washer	33306786187 Eccentric flat washer	$4.11	-
11	31106768886	Hexagon nut with collar	31106768886 Hexagon nut with collar M14X1,5-10 ZNS3	-	-	Enquire
12	33326777424	Guiding suspension link w rubber mount	33326777424 Guiding suspension link w rubber mount	-	-	Enquire
13	33306760591	ECCENTRIC BOLT	33306760591 ECCENTRIC BOLT M10X66 ZNS3	$19.03	-
14	33306760592	Eccentric flat washer	33306760592 Eccentric flat washer	$6.11	-
15	33326768900	Self-locking hex nut	33326768900 Self-locking hex nut M10-10 ZNS3	$1.92	-
16	33306760587	Hex nut with flange	33306760587 Hex nut with flange M10-10 ZNS3	$1.76	-
17	33326770757	Wishbone, left	33326770757 Wishbone, left	$868.51	-
17	33326770758	Right wishbone IN STOCK	33326770758 Right wishbone IN STOCK	$1,011.43	-
18	33306760391	Hexagon collar screw	33306760391 Hexagon collar screw M12X1.5X92 ZNS3	$12.23	-
19	33326760374	Self-locking collar nut	33326760374 Self-locking collar nut M12X1,5-10 ZNS3	$5.68	-
20	34526771713	Pulse generator	34526771713 Pulse generator	$171.55	-
21	7119904105	Fillister head screw	7119904105 Fillister head screw M6X16-8.8-ZNS3	-	-	Enquire
22	34521164653	Tubing support IN STOCK	34521164653 Tubing support IN STOCK	$0.65	-
23	34526759888	Clip	34526759888 Clip	$4.80	-

Rear Axle Support/Wheel Suspension

Rolls Royce Phantom Coupe

Rolls Royce Phantom Coupe - REAR AXLE SUPPORT/WHEEL SUSPENSION
