Intake manifold system of Rolls Royce Rolls Royce Phantom Coupe

View All

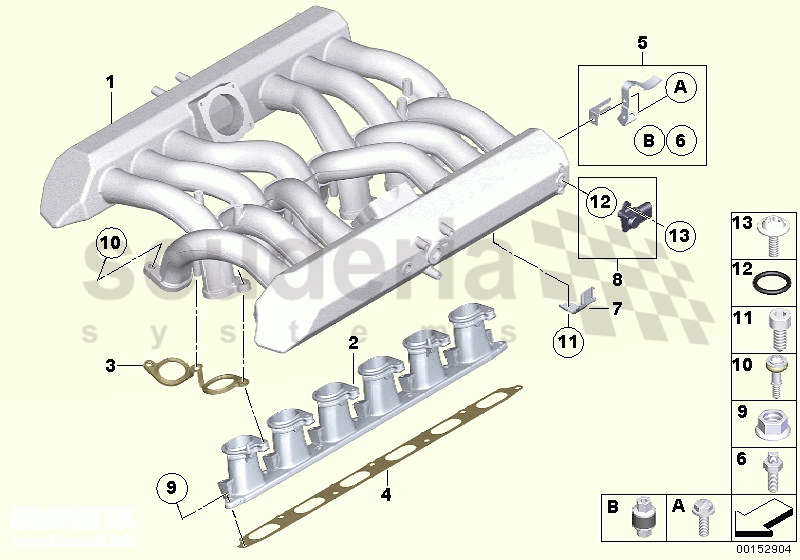

Rolls Royce Phantom Coupe - Intake manifold system

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11617509485	Intake manifold system	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617525178	Intake manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

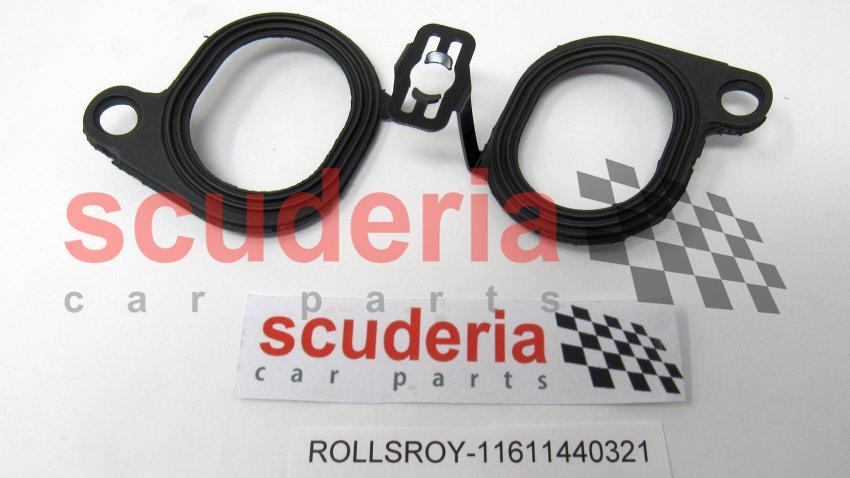

	11611440321	Profile-gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617568910	Gasket Steel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11610151010	Support bracket kit, right	Enquire	To Order
	11610151011	Support bracket kit, left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617514139	Stud bolt	Enquire	To Order
	11617573703	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517525435	SHUT-OFF VALVE BRACKET	Enquire	To Order
	13537618837	SHUT-OFF VALVE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13627542623	Differential pressure sensor	Enquire	To Order
	13627585278	Differential pressure sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617573839	Flange nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617568909	Damping element	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156542	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13627515272	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905535	Isa screw with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7129905535	Isa screw with washer	7129905535 Isa screw with washer M5X16-U1-8.8	-	-	Enquire
-	12147516759	Clip	12147516759 Clip	-	-	Enquire
1	11617509485	Intake manifold system	11617509485 Intake manifold system	-	-	Enquire
2	11617525178	Intake manifold	11617525178 Intake manifold	-	-	Enquire
3	11611440321	Profile-gasket	11611440321 Profile-gasket	-	-	Enquire
4	11617568910	Gasket Steel	11617568910 Gasket Steel	-	-	Enquire
5	11610151010	Support bracket kit, right	11610151010 Support bracket kit, right	-	-	Enquire
5	11610151011	Support bracket kit, left	11610151011 Support bracket kit, left	-	-	Enquire
6	11617514139	Stud bolt	11617514139 Stud bolt M6	-	-	Enquire
6	11617573703	Stud bolt	11617573703 Stud bolt M6	-	-	Enquire
7	13517525435	SHUT-OFF VALVE BRACKET	13517525435 SHUT-OFF VALVE BRACKET	-	-	Enquire
7	13537618837	SHUT-OFF VALVE BRACKET	13537618837 SHUT-OFF VALVE BRACKET	-	-	Enquire
8	13627542623	Differential pressure sensor	13627542623 Differential pressure sensor	-	-	Enquire
8	13627585278	Differential pressure sensor	13627585278 Differential pressure sensor	-	-	Enquire
9	11617573839	Flange nut	11617573839 Flange nut M7	-	-	Enquire
10	11617568909	Damping element	11617568909 Damping element	-	-	Enquire
11	7147156542	Fillister head screw	7147156542 Fillister head screw ISA M6X14 MK	-	-	Enquire
12	13627515272	O-ring	13627515272 O-ring	-	-	Enquire
13	7129905535	Isa screw with washer	7129905535 Isa screw with washer M5X16-U1-8.8	-	-	Enquire
