Find Your Part

Rear seat belt, basic of Rolls Royce Rolls Royce Phantom

View All

Rolls Royce Phantom - Rear seat belt, basic

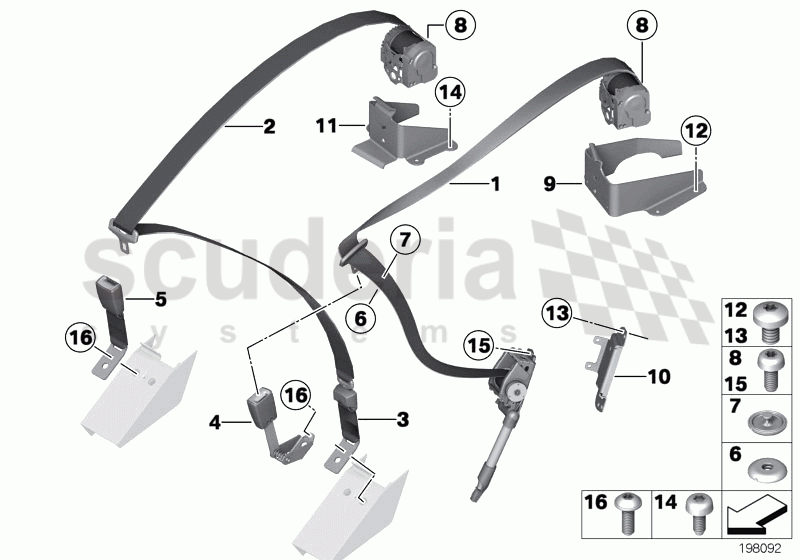

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	72117054169	Upper belt, rear left	Enquire	To Order
	72117054170	Upper belt, rear right	Enquire	To Order
	72117078139	Upper belt, rear left	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	72117062443	Upper belt, rear centre	Enquire	To Order
	72117078037	Upper belt, rear centre	Enquire	To Order
	72117078038	Upper belt, rear centre	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	72117077314	Anchorage, seat belt	Enquire	To Order
	72119117259	Anchorage, seat belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72110154332	Kit, lower belt rear left	Enquire	To Order
	72110154333	Kit, lower belt rear right	Enquire	To Order
	72117062425	Lower belt, rear left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	72110154334	Kit, lower belt rear centre	Enquire	To Order
	72117018249	LOWER BELT REAR CENTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72111917406	Button bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72111950829	Button top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149148309	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72117067895	Bracket belt retractor	Enquire	To Order
	72117067896	Bracket belt retractor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72117110619	Bracket-seat belt pretensioner connector	Enquire	To Order
	72117110620	Bracket-seat belt pretensioner connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72117058680	Bracket belt retractor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146962565	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149148299	Fillister head screw	Enquire	To Order
	72117000107	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147075093	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149148299	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149144403	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	72117054169	Upper belt, rear left	72117054169 Upper belt, rear left SLATE	-	-	Enquire
1	72117054170	Upper belt, rear right	72117054170 Upper belt, rear right SLATE	-	-	Enquire
1	72117078139	Upper belt, rear left	72117078139 Upper belt, rear left SANDSTONE	-	-	Enquire
1	72117078140	Upper belt, rear right	72117078140 Upper belt, rear right SANDSTONE	-	-	Enquire
1	72117078141	Upper belt, rear left	72117078141 Upper belt, rear left TRAVENTINE	-	-	Enquire
1	72117078142	Upper belt, rear right	72117078142 Upper belt, rear right TRAVENTINE	-	-	Enquire
1	72117078143	Upper belt, rear left	72117078143 Upper belt, rear left GRENADINE	-	-	Enquire
1	72117078144	Upper belt, rear right	72117078144 Upper belt, rear right GRENADINE	-	-	Enquire
1	72117078145	Upper belt, rear left	72117078145 Upper belt, rear left GRANITE	-	-	Enquire
1	72117078146	Upper belt, rear right	72117078146 Upper belt, rear right GRANITE	-	-	Enquire
1	72117285677	Top belt, rear left	72117285677 Top belt, rear left NAVY BLUE	-	-	Enquire
1	72117285678	Top belt, rear right	72117285678 Top belt, rear right NAVY BLUE	-	-	Enquire
1	72119132779	Upper belt, rear left	72119132779 Upper belt, rear left SLATE	-	-	Enquire
1	72119132780	Upper belt, rear right	72119132780 Upper belt, rear right SLATE	-	-	Enquire
1	72119132781	Upper belt, rear left	72119132781 Upper belt, rear left SANDSTONE	-	-	Enquire
1	72119132782	Upper belt, rear right	72119132782 Upper belt, rear right SANDSTONE	-	-	Enquire
1	72119132783	Upper belt, rear left	72119132783 Upper belt, rear left TEAVENTINE	-	-	Enquire
1	72119132784	Upper belt, rear right	72119132784 Upper belt, rear right TRAVERTINE	-	-	Enquire
1	72119132785	Upper belt, rear left	72119132785 Upper belt, rear left GRENADINE	-	-	Enquire
1	72119132786	Upper belt, rear right	72119132786 Upper belt, rear right GRENADINE	-	-	Enquire
1	72119132787	Upper belt, rear left	72119132787 Upper belt, rear left GRANITE	-	-	Enquire
1	72119132788	Upper belt, rear right	72119132788 Upper belt, rear right GRANITE	-	-	Enquire
2	72117062443	Upper belt, rear centre	72117062443 Upper belt, rear centre SLATE	-	-	Enquire
2	72117078037	Upper belt, rear centre	72117078037 Upper belt, rear centre SANDSTONE	-	-	Enquire
2	72117078038	Upper belt, rear centre	72117078038 Upper belt, rear centre TRAVENTINE	-	-	Enquire
2	72117078039	Upper belt, rear centre	72117078039 Upper belt, rear centre GRENADINE	-	-	Enquire
2	72117078040	Upper belt, rear centre	72117078040 Upper belt, rear centre GRANITE	-	-	Enquire
2	72117285673	Top belt, rear middle	72117285673 Top belt, rear middle NAVY BLUE	-	-	Enquire
2	72119132789	Upper belt, rear centre	72119132789 Upper belt, rear centre SLATE	-	-	Enquire
2	72119132790	Upper belt, rear centre	72119132790 Upper belt, rear centre SANDSTONE	-	-	Enquire
2	72119132791	Upper belt, rear centre	72119132791 Upper belt, rear centre TRAVERTINE	-	-	Enquire
2	72119132792	Upper belt, rear centre	72119132792 Upper belt, rear centre GRENADINE	-	-	Enquire
2	72119132793	Upper belt, rear centre	72119132793 Upper belt, rear centre GRANITE	-	-	Enquire
3	72117077314	Anchorage, seat belt	72117077314 Anchorage, seat belt	-	-	Enquire
3	72119117259	Anchorage, seat belt	72119117259 Anchorage, seat belt	-	-	Enquire
4	72110154332	Kit, lower belt rear left	72110154332 Kit, lower belt rear left	-	-	Enquire
4	72110154333	Kit, lower belt rear right	72110154333 Kit, lower belt rear right	-	-	Enquire
4	72117062425	Lower belt, rear left	72117062425 Lower belt, rear left	-	-	Enquire
4	72117062426	Lower belt, rear right	72117062426 Lower belt, rear right	-	-	Enquire
4	72119117231	Lower belt, rear left	72119117231 Lower belt, rear left	-	-	Enquire
4	72119117232	Lower belt, rear right	72119117232 Lower belt, rear right	-	-	Enquire
5	72110154334	Kit, lower belt rear centre	72110154334 Kit, lower belt rear centre	-	-	Enquire
5	72117018249	LOWER BELT REAR CENTER	72117018249 LOWER BELT REAR CENTER	-	-	Enquire
6	72111917406	Button bottom	72111917406 Button bottom	-	-	Enquire
7	72111950829	Button top	72111950829 Button top	-	-	Enquire
8	7149148309	Fillister head screw	7149148309 Fillister head screw ISA M10X20	-	-	Enquire
9	72117067895	Bracket belt retractor	72117067895 Bracket belt retractor LH	-	-	Enquire
9	72117067896	Bracket belt retractor	72117067896 Bracket belt retractor RH	-	-	Enquire
10	72117110619	Bracket-seat belt pretensioner connector	72117110619 Bracket-seat belt pretensioner connector LH	-	-	Enquire
10	72117110620	Bracket-seat belt pretensioner connector	72117110620 Bracket-seat belt pretensioner connector RH	-	-	Enquire
11	72117058680	Bracket belt retractor	72117058680 Bracket belt retractor CENTRE	-	-	Enquire
12	7146962565	Fillister head screw	7146962565 Fillister head screw M10X26	-	-	Enquire
13	7149148299	Fillister head screw	7149148299 Fillister head screw M10X22	-	-	Enquire
13	72117000107	Fillister head screw	72117000107 Fillister head screw M10X22	-	-	Enquire
14	7147075093	Fillister head screw	7147075093 Fillister head screw M8X12	-	-	Enquire
15	7149148299	Fillister head screw	7149148299 Fillister head screw M10X22	-	-	Enquire
16	7149144403	Fillister head screw	7149144403 Fillister head screw M12X27	-	-	Enquire
